Remote Sensors
Remote Sensors SERIES
LT 110L AP38 15
Remote Sensors
Remote Photoelectric Systems
Compatible Receivers
-
LR 110L AP38 15
Function Receiver Sensing Range Up to 40 m Indicators Yes Optical Angle +/- 3° (opening) Housing Ø10 Housing Material Plastic Connection 15 m cable
Product Data
| Function | Transmitter |
| Sensing Range | Up to 40 m |
| Indicators | Yes |
| Optical Angle | +/- 5° (emission) |
| Housing | Ø10 |
| Housing Material | Plastic |
| Connection | 15 m cable |
Technical Data
| Transmitter Diode | Ga Al As, (880 nm) |
| Output Indicator | Yellow LED |
| Light Source | Infrared |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Polycarbonate |
| Cable | 2 x 0,25 mm² |
| Cable Sleeve | PVC Ø 4,0 mm |
| Min. Cable Bending Radius | 45 mm |
Environmental Data
| Vibration | 10 – 55 Hz, 0,5 mm |
| Shock | 30 g |
| Operation Temperature | – 25 to +65 °C |
| Storage Temperature | – 40 to +80 °C |
| Sealing Class | IP 67 |
| Light Immunity 20˚ | > 100 000 lux |
Technical Drawings
-

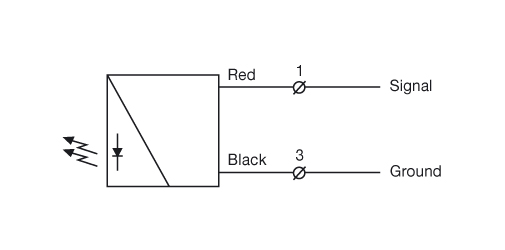

Wiring Diagram
-
Parallel Displacement
-

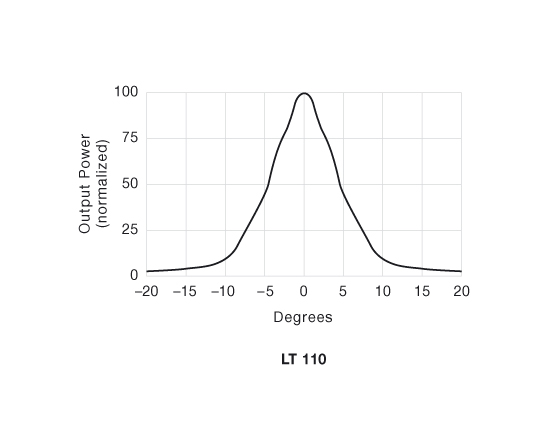

Angular Displacement
-

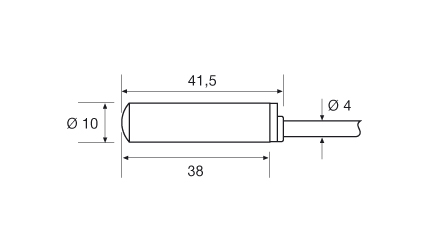

Dimensions
