PA 10

Product Data

Function	Amplifier
Supply Voltage	230 V ac
Sensing Range	60 m
Sensitivity Adjustment	Manual
Output	Relay
Housing	11-pole DIN socket

Technical Data

Supply Voltage	230 V ac
Voltage Tolerance	+/– 15 %
Current Consumption	Max. 3,2 VA
Response Time ton / toff, Relay	50 ms / 50 ms
Output, Relay	1 open/1 close, 250 V ac/3 A, 120 V ac/5 A
Power On Indicator	Green LED
Output Indicator	Red LED
Hysteresis	Approx. 40 %
Operation Frequency, Relay	10 Hz
Housing Material	Noryl

Environmental Data

Operation Temperature	– 10 to +50 °C
Storage Temperature	– 40 to +80 °C
Sealing Class	IP 40

Technical Drawings

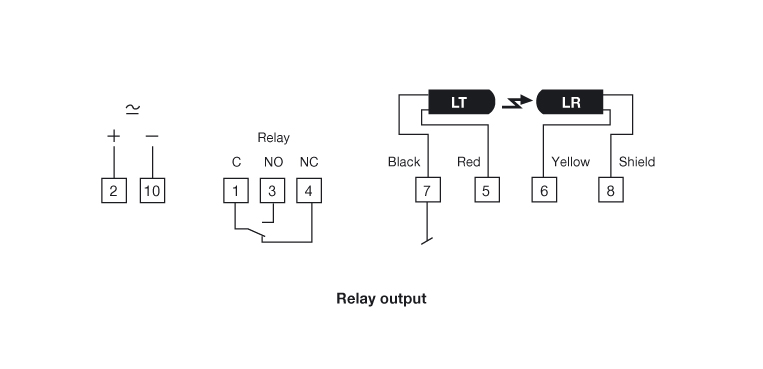

• Wiring Diagram

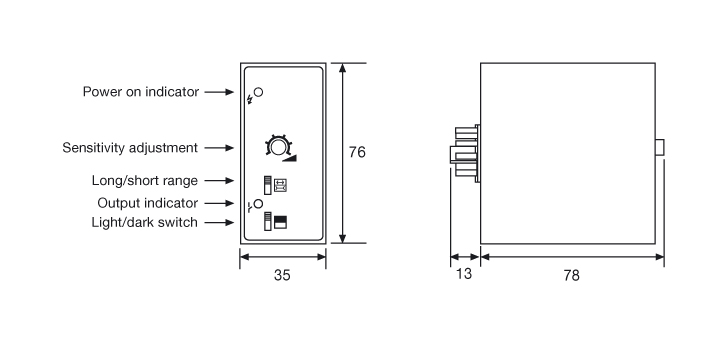

• Dimensions
