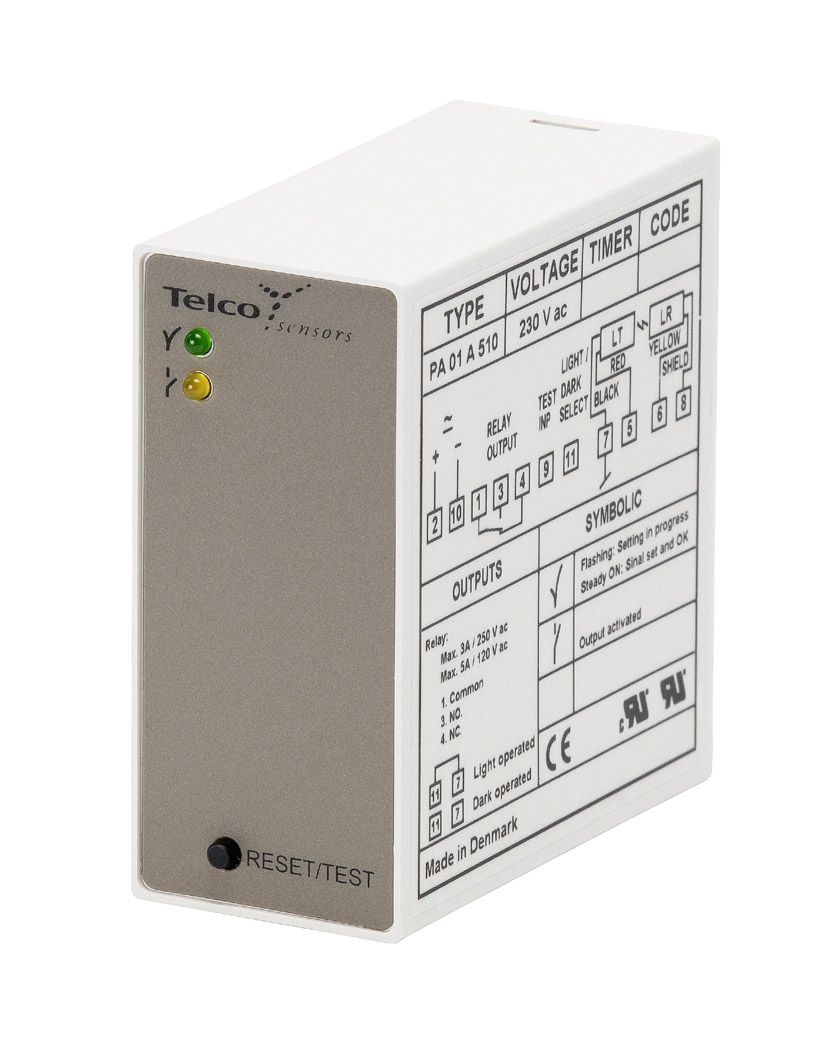

PA 01

Product Data

Function	Amplifier
Supply Voltage	12 - 30 V ac / 12 - 36 V dc
Sensing Range	45 m
Sensitivity Adjustment	Automatic
Output	Relay
Housing	11-pole DIN socket

Technical Data

Supply Voltage	12-30 V ac / 12-36 V dc
Voltage Tolerance	+/– 15 %
Current Consumption	Max. 2,5 VA
Response Time ton / toff, Relay	45 ms / 45 ms
Output, Relay	1 open/1 close, 230 V ac/3 A, 120 V ac/5 A
Power On Indicator	Green LED
Output Indicator	Yellow LED
Signal Status Indicator	Green LED
Sensor Monitor LED Drive	Green LED on the receiver: ‘Power ON’ Yellow LED on the transmitter: PA 01 output activated
Hysteresis	Approx. 20 %
Operation Frequency, Relay	11 Hz
Housing Material	Noryl

Environmental Data

Operation Temperature	– 10 to +55 °C
Storage Temperature	– 40 to +80 °C
Sealing Class	IP 40

Technical Drawings

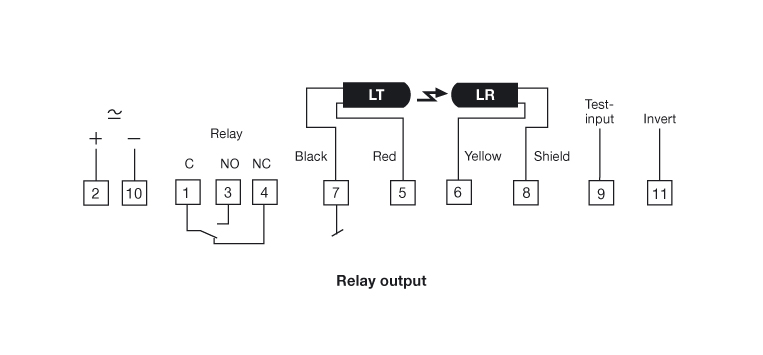

• Wiring Diagram

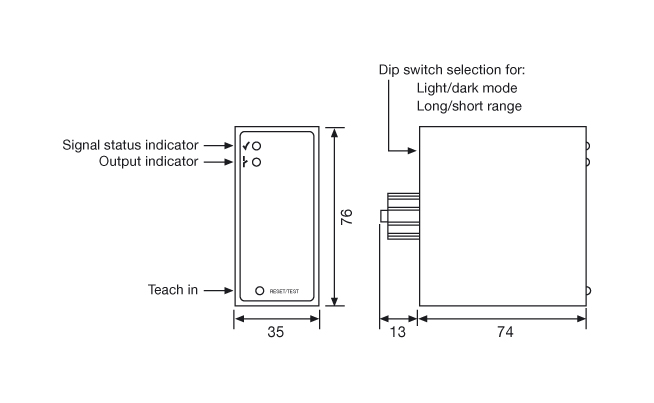

• Dimensions
