PA 11

Photoelectric Amplifier SERIES

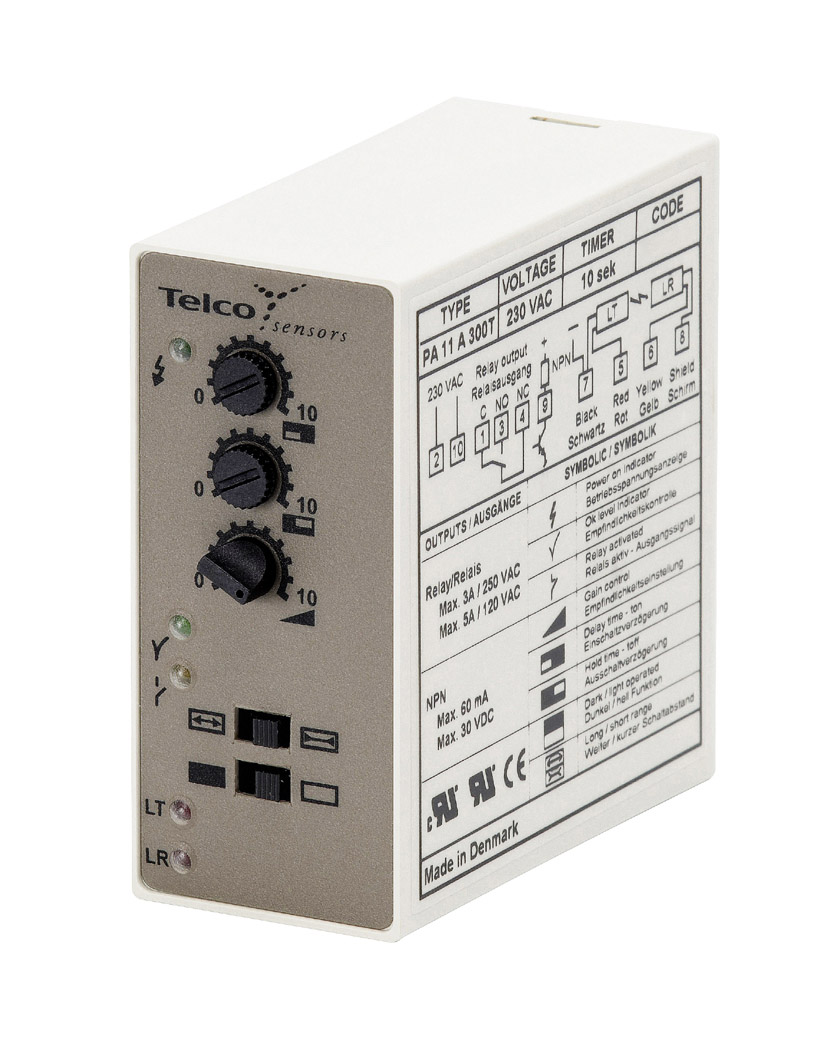

PA 11 A 303T

Photoelectric Amplifier

Remote Photoelectric Systems

PA 11 A 303T

  • CE
  • CRU

Product Data

Function Amplifier
Supply Voltage 24 V dc
Sensing Range 70 m
Sensitivity Adjustment Manual
Output Relay and NPN
Timer On/Off Delay
Housing 11-pole DIN socket

Technical Data

Supply Voltage 24 V dc
Voltage Tolerance +/– 15 %
Current Consumption Max. 3,5 VA
Response Time ton / toff, Relay 35 ms / 35 ms
Response Time ton / toff, Transistor 25 ms / 25 ms
Output, Relay 1 open/1 close, 250 V ac/3 A, 120 V ac/5 A
Output, Transistor 60 mA / 30 V dc
Power On Indicator Green LED
Output Indicator Yellow LED
LR Sensor Failure Indicator Red LED
LT Sensor Failure Indicator Red LED
Signal Level Indicator Green LED
Sensor Monitor LED Drive Green LED on the receiver: ‘Power ON’ Yellow LED on the transmitter: PA 11 output activated
Hysteresis Approx. 45 %
Operation Frequency, Relay 14 Hz
Operation Frequency, Transistor 20 Hz
Delay Time ton / toff 0 – 10 sec, adjustable
Housing Material Noryl

Environmental Data

Operation Temperature – 10 to +50 °C
Storage Temperature – 40 to +80 °C
Sealing Class IP 40

Technical Drawings

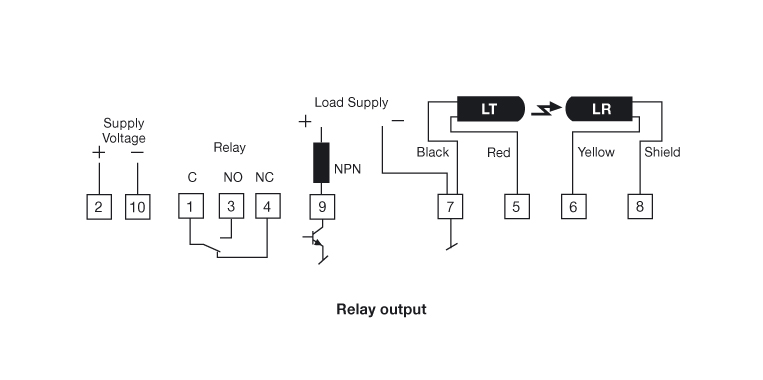

  • Wiring Diagram Wiring Diagram

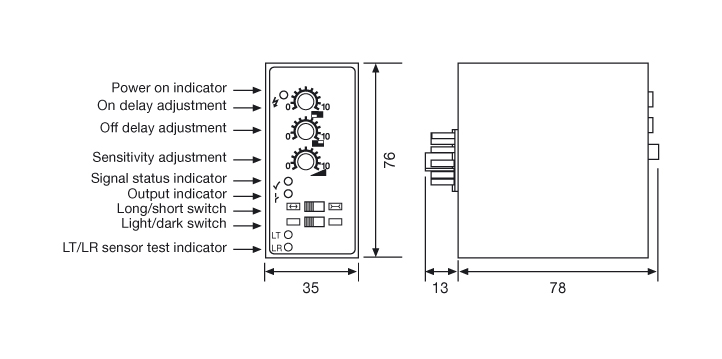

  • Dimensions Dimensions
