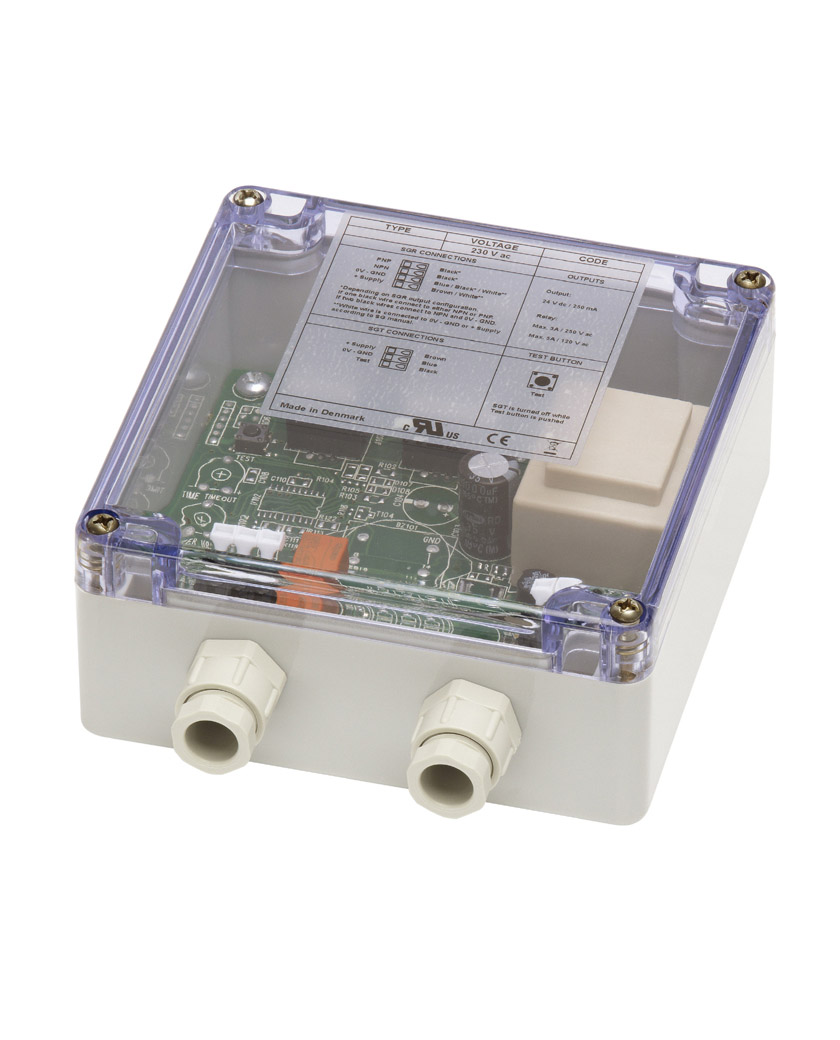

SGC 1

Product Data

Function	Power Supply
Supply Voltage	230 V ac
Output	Relay
Housing	56 x 120 x 122

Technical Data

Supply Voltage	230 V ac
Voltage Tolerance	+/- 10 %
Current Consumption	Max. 250 mA
Supply Output Voltage	24 V dc
Supply Output Current	150 mA
Relay Output	1 open/1 close, 250 V ac/3A, 120 V ac/5A
Test Input	Test push button
Power On Indicator	Green LED
Output Indicator	Yellow LED
Housing Material	ABS

Environmental Data

Vibration	10 – 55 Hz, 1,5 mm
Shock	30 g
Operation Temperature	–20 to +65 °C
Storage Temperature	–40 to +80 °C
Sealing Class	IP 41

Technical Drawings

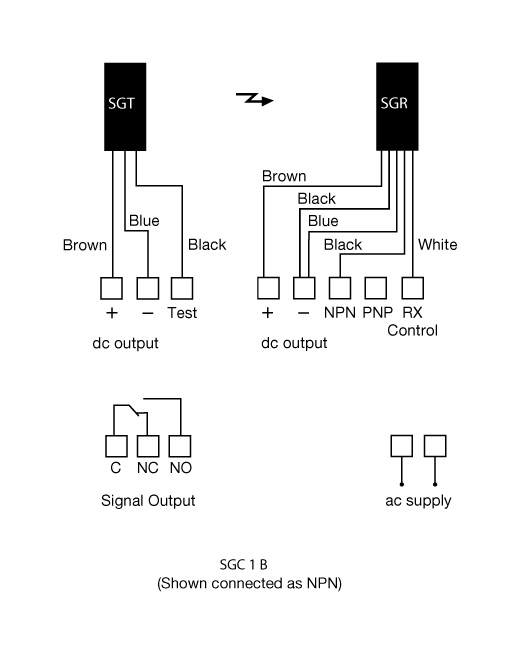

• Wiring Diagram

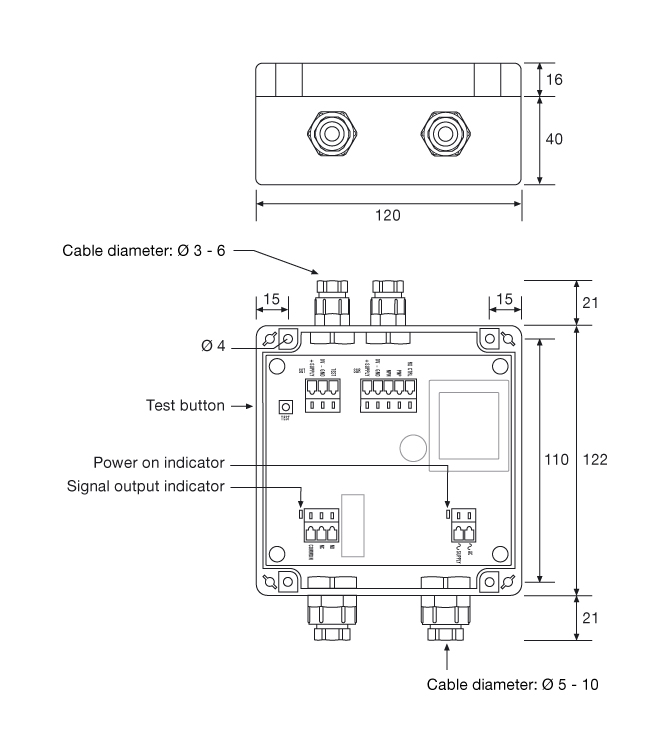

• Dimensions
