PP 00

Product Data

Function	Power Supply
Supply Voltage	115 V ac
Output	Relay
Timer	On/Off Delay
Housing	11-pole DIN socket

Technical Data

Supply Voltage	115 V ac
Voltage Tolerance	+/– 15 %
Current Consumption	Max. 4 VA
Supply Output Voltage	15 V
Supply Output Current	Max. 175 mA
Relay Output	1 open/1 close 250 V ac/3A, 120 V ac/5A
Power On Indicator	Green LED
Output Indicator	Yellow LED
Input Indicator	Green LED
Delay Time ton / toff	0 – 10 sec, adjustable
Housing Material	Noryl

Environmental Data

Operation Temperature	– 10 to +50 °C
Storage Temperature	– 40 to +80 °C
Sealing Class	IP 40

Technical Drawings

• Wiring Diagram

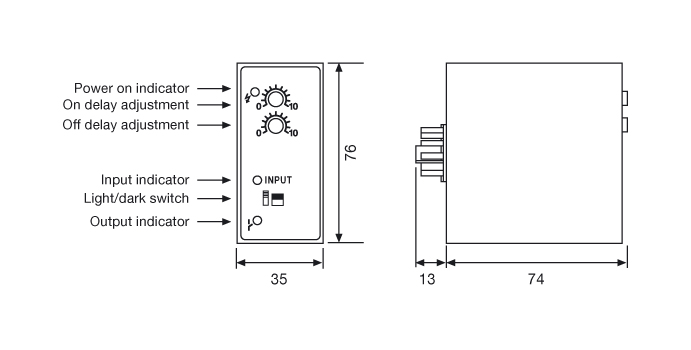

• Dimensions
