SpacePak™

SP 2000

Thru Beam"

Standard, Photoelectric Sensors"

Icon for Thru Beam
Add to MyList

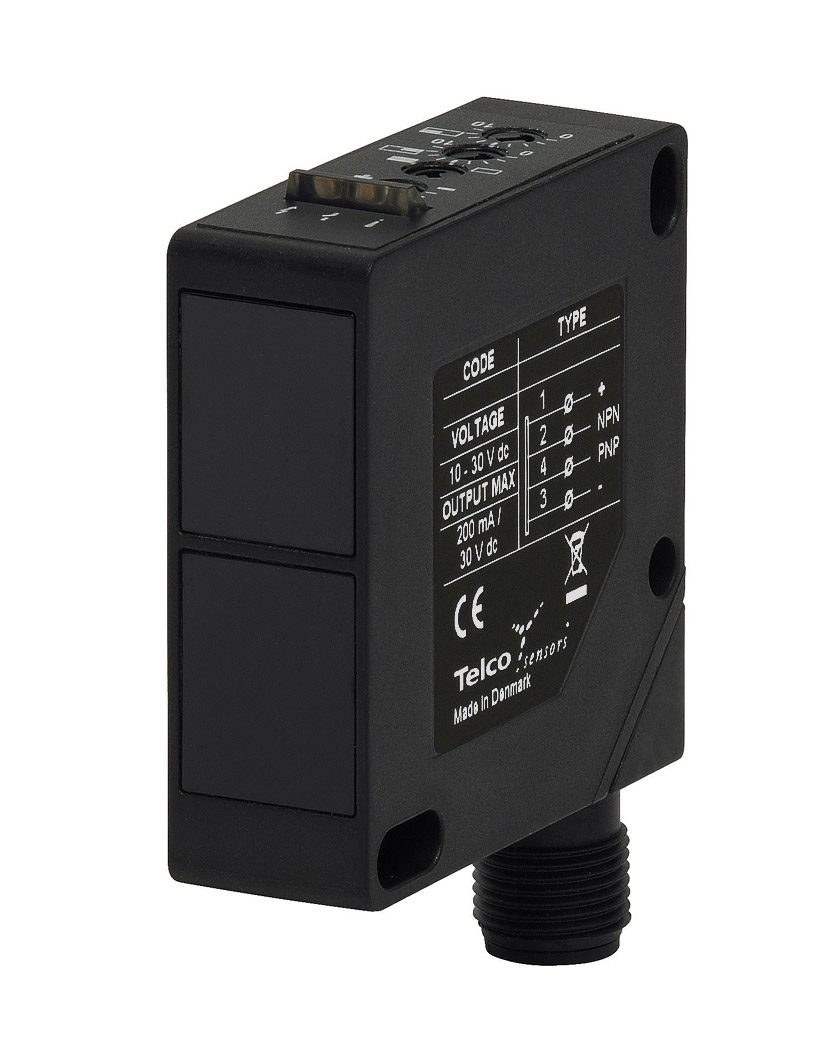

Type Name: SPT 2645 J

Compatible Receiver(s):

SPR 2645 J

SPR 2645T J

Product Data
Function Transmitter
Supply Voltage 10 - 30 V dc
Light Source Infrared (880 nm)
Housing Material Plastic

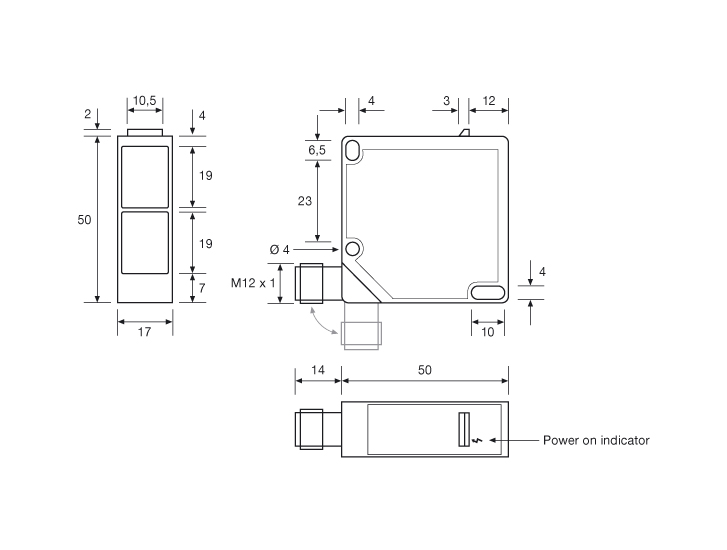

Housing 17 x 50 x 50
Control Feature Test input

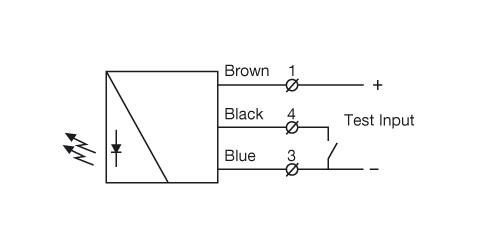

Connection 4 pin, M12 plug

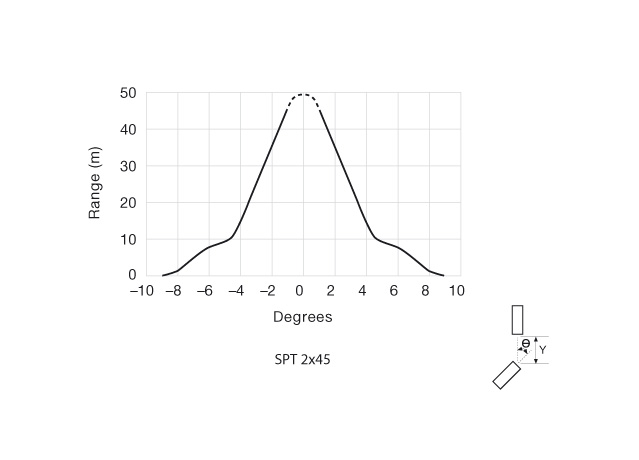

Sensing Range 45 m
Timer -
Output -
Output Status -
Operation Mode Thru Beam
Technical Data
Supply Voltage 10 – 30 V dc
Voltage Ripple +/– 15 %
Reverse Polarity Protected Yes
Short Circuit Protected -
Current Consumption < 65 mA
Max. Operation Frequency -
Power On Indicator Green LED
Output Indicator -
Hysteresis -
Light Source Infrared (880 nm)
Opening Angle -
Emission Angle +/– 2°
Cable 3 x 0,20 mm2
Output, Transistor -
Response Time ton / toff -
Housing Material Sensor Housing Polycarbonate / ABS
Housing Material Lens Cover Polycarbonate
Cable Sleeve PVC Ø 4,9 mm
Test Input Yes
Signal Status Indicator -
Delay Time ton / toff -
Environmental Data
Vibration 10 – 55 Hz, 0.5 mm
Shock 30 g
Operation Temperature –20 to +55 °C
Storage Temperature –40 to +80 °C
Sealing Class IP 67
Light Immunity 5˚ -
Light Immunity 15˚ -
Approvals
SPT 2645 J
