SM 9000-IO
SpaceMaster™ SERIES
SMT 9020C-IO TP 0.1-J5
Thru Beam
Photoelectric Sensors
Compatible Receivers
-
SMR 9420-IO TP 0.1-J5
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 30 V dc Sensing Range 20 m Output NPN (IO-Link) Output Status N.C./N.O. Housing M18 x 1 Housing Material Plastic Connection 0.1 m cable with 5 pin, M12 Features IO-Link communication port -
SMR 9520-IO TP 0.1-J5
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 30 V dc Sensing Range 20 m Output PNP (IO-Link) Output Status N.C./N.O. Housing M18 x 1 Housing Material Plastic Connection 0.1 m cable with 5 pin, M12 Features IO-Link communication port
Product Data
| Operation Mode | Thru Beam |
| Function | Transmitter |
| Supply Voltage | 10 - 30 V dc |
| Light Source | Infrared (880 nm) |
| Control Feature | Adjustable range and test input |
| Sensing Range | 20 m |
| Housing | M18 x 1 |
| Housing Material | Plastic |
| Connection | 0.1 m cable with 5 pin, M12 |
| Features | IO-Link communication port |
Technical Data
| Channel Nº | Selectable 4 channels selectable via IO-Link |
| Supply Voltage | 10 - 30 V dc |
| Voltage Ripple | 15 % |
| Reverse Polarity Protected | Yes |
| Current Consumption | 40 mA |
| Test Input | Yes |
| Control Input | Adjustable range |
| Power On Indicator | Green LED |
| Light Source | Infrared (880 nm) |
| Emission Angle | +/- 7° |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Polycarbonate |
| Cable | 5 x 0,14 mm² |
| Cable Sleeve | PVC Ø 4,9 mm |
Environmental Data
| Vibration | 10 - 55 Hz, 0,5 mm |
| Shock | 30 g |
| Operation Temperature | -20 to +60 °C |
| Storage Temperature | -40 to +80 °C |
| Sealing Class | IP 69K |
Technical Drawings
-

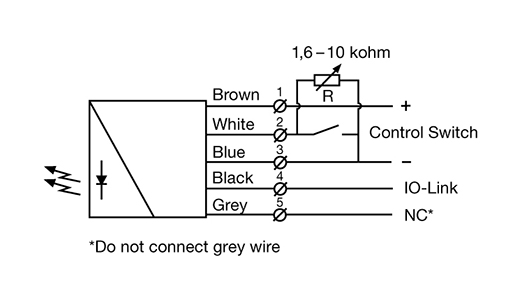

Wiring Diagram
-
Connections
-
Parallel Displacement
-
Angular Displacement
-
Dimensions
-
Excess Gain
