SM 8000
SpaceMaster™ SERIES
SMT 8600H PG 5
Thru Beam
Photoelectric Sensors
Compatible Receivers
-
SMR 8820 PG 5
Operation Mode Thru Beam Function Receiver Supply Voltage 20 - 250 V ac Control Feature Light/dark switch Sensing Range 20 m Output SCR Output Status N.C./N.O. Housing M18 x 1 Housing Material Plastic Connection 5 m cable
Product Data
| Operation Mode | Thru Beam |
| Function | Transmitter |
| Supply Voltage | 20 - 250 V ac |
| Light Source | Infrared (880 nm) |
| Sensing Range | 20 m |
| Housing | M18 x 1 |
| Housing Material | Plastic |
| Connection | 5 m cable |
Technical Data
| Supply Voltage | 20 - 250 V ac |
| Voltage Ripple | 15 % |
| Current Consumption | 3 mA |
| Power On Indicator | Green LED |
| Light Source | Infrared (880 nm) |
| Emission Angle | +/- 2° |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Polycarbonate |
| Cable | 2 x 0,25 mm² |
| Cable Sleeve | PVC Ø 5,2 mm |
Environmental Data
| Vibration | 10 - 55 Hz, 0,5 mm |
| Shock | 30 g |
| Operation Temperature | -20 to +60 °C |
| Storage Temperature | -40 to +80 °C |
| Sealing Class | IP 67 |
Technical Drawings
-
Wiring Diagram
-
Parallel Displacement
-
Angular Displacement
-

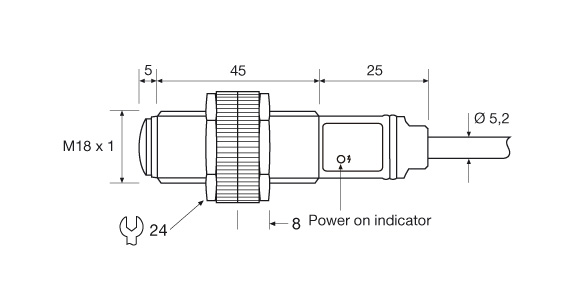

Dimensions
