SpaceMaster™

SM 8000

Thru Beam"

Standard, Photoelectric Sensors"

Icon for Thru Beam
Add to MyList

Type Name: SMT 8000 MG J

Compatible Receiver(s):

SMR 8400 MG J

SMR 8420 MG J

SMR 8500 MG J

SMR 8520 MG J

Product Data
Function Transmitter
Supply Voltage 10 - 30 V dc
Light Source Infrared (880 nm)
Housing Material Stainless Steel

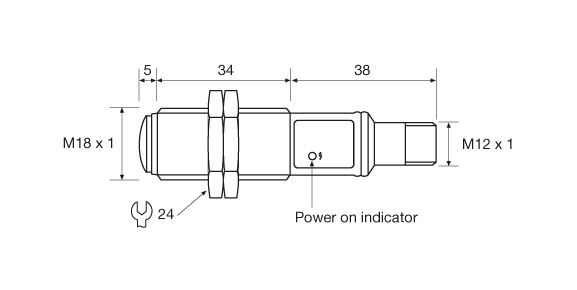

Housing M18 x 1
Control Feature Test input
Connection 4 pin, M12 plug

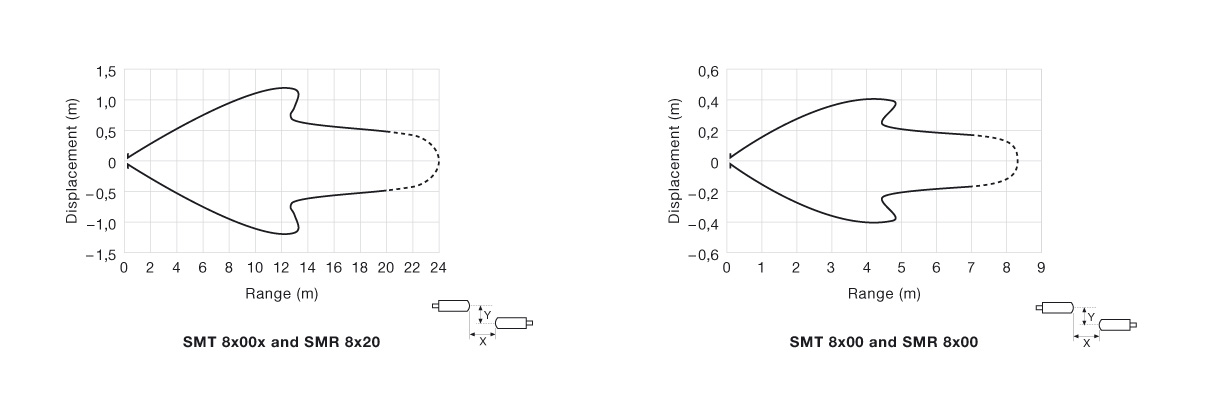

Sensing Range 20 m
Output -
Output Status -
Operation Mode Thru Beam
Technical Data
Supply Voltage 10 - 30 V dc
Voltage Ripple 15 %
Reverse Polarity Protected Yes
Short Circuit Protected -
Current Consumption 15 mA
Max. Output Load -
Max. Residual Voltage -
Max. Operation Frequency -
Power On Indicator Green LED
Output Indicator -
Hysteresis -
Light Source Infrared (880 nm)
Opening Angle -

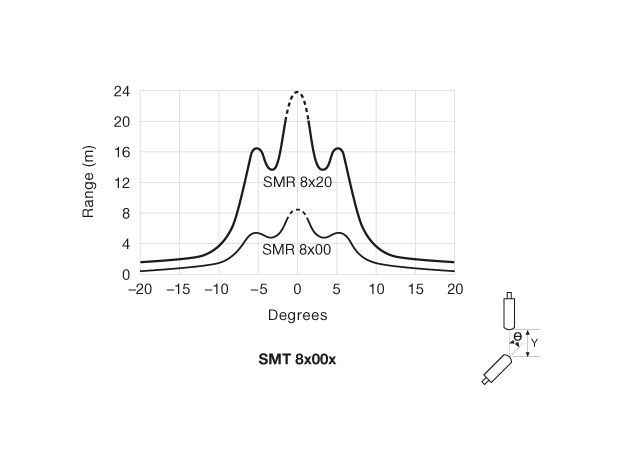

Emission Angle +/- 2°
Cable 3 x 0,14 mm²
Response Time ton / toff -
Housing Material Sensor Housing Stainless Steel (AISI 316 / 1.4401)
Housing Material Lens Cover Polycarbonate
Cable Sleeve PVC Ø 4,0 mm
Test Input Yes
Control Input -
Environmental Data
Vibration 10 - 55 Hz, 0,5 mm
Shock 30 g
Operation Temperature -20 to +60 °C
Storage Temperature -40 to +80 °C
Sealing Class IP 67
Light Immunity 5˚ -
Light Immunity 15˚ -
Approvals
SMT 8000 MG J
