SM 8000
SpaceMaster™ SERIES
SMR 8800 MG 5
Thru Beam
Photoelectric Sensors
Compatible Transmitters
-
SMT 8600 MG 5
Operation Mode Thru Beam Function Transmitter Supply Voltage 20 - 250 V ac Light Source Infrared (880 nm) Sensing Range 7 m Housing M18 x 1 Housing Material Stainless Steel Connection 5 m cable
Product Data
| Operation Mode | Thru Beam |
| Function | Receiver |
| Supply Voltage | 20 - 250 V ac |
| Control Feature | Light/dark switch |
| Sensing Range | 7 m |
| Output | SCR |
| Output Status | N.C./N.O. |
| Housing | M18 x 1 |
| Housing Material | Stainless Steel |
| Connection | 5 m cable |
Technical Data
| Supply Voltage | 20 - 250 V ac |
| Voltage Ripple | 15 % |
| Current Consumption | 2 mA |
| Max. Output Load | 200 mA |
| Max. Residual Voltage | 8 V |
| Max. Operation Frequency | 20 Hz |
| Response Time ton / toff | 25 ms / 25 ms |
| Power On Indicator | Green LED |
| Output Indicator | Yellow LED |
| Hysteresis | Approx. 10 - 30 % |
| Opening Angle | +/- 6° |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Stainless Steel (AISI 316 / 1.4401) |
| Cable | 2 x 0,25 mm² |
| Cable Sleeve | PVC Ø 5,2 mm |
Environmental Data
| Vibration | 10 - 55 Hz, 0,5 mm |
| Shock | 30 g |
| Operation Temperature | -20 to +60 °C |
| Storage Temperature | -40 to +80 °C |
| Sealing Class | IP 67 |
| Light Immunity 5˚ | > 10 000 lux |
Technical Drawings
-

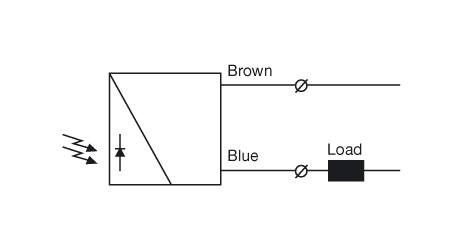

Wiring Diagram
-
Parallel Displacement
-
Angular Displacement
-

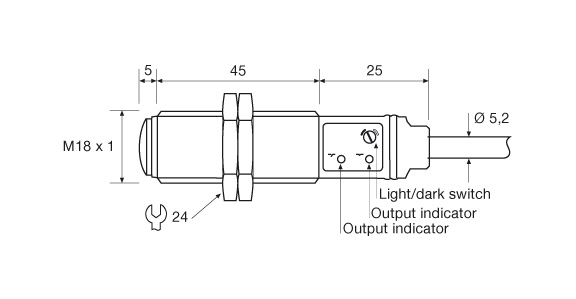

Dimensions
