SM 7000
SpaceMaster™ SERIES

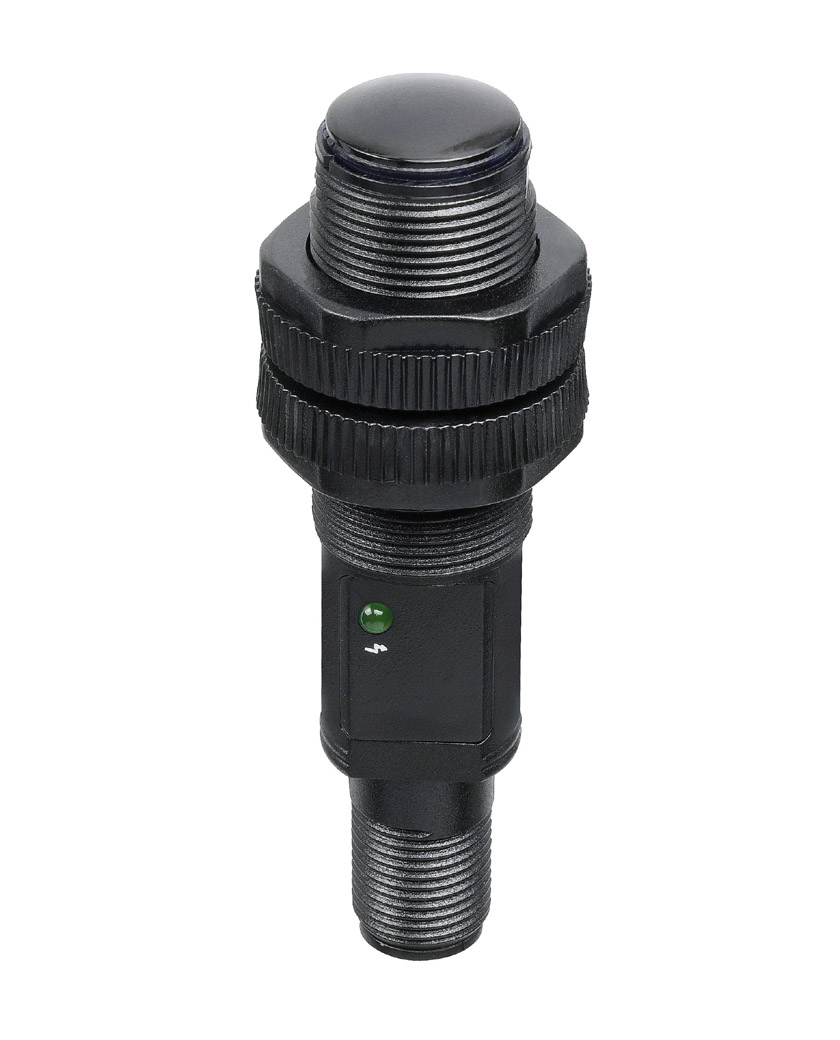

SMT 7000 TP J
Thru Beam
Photoelectric Sensors
Compatible Receivers
-

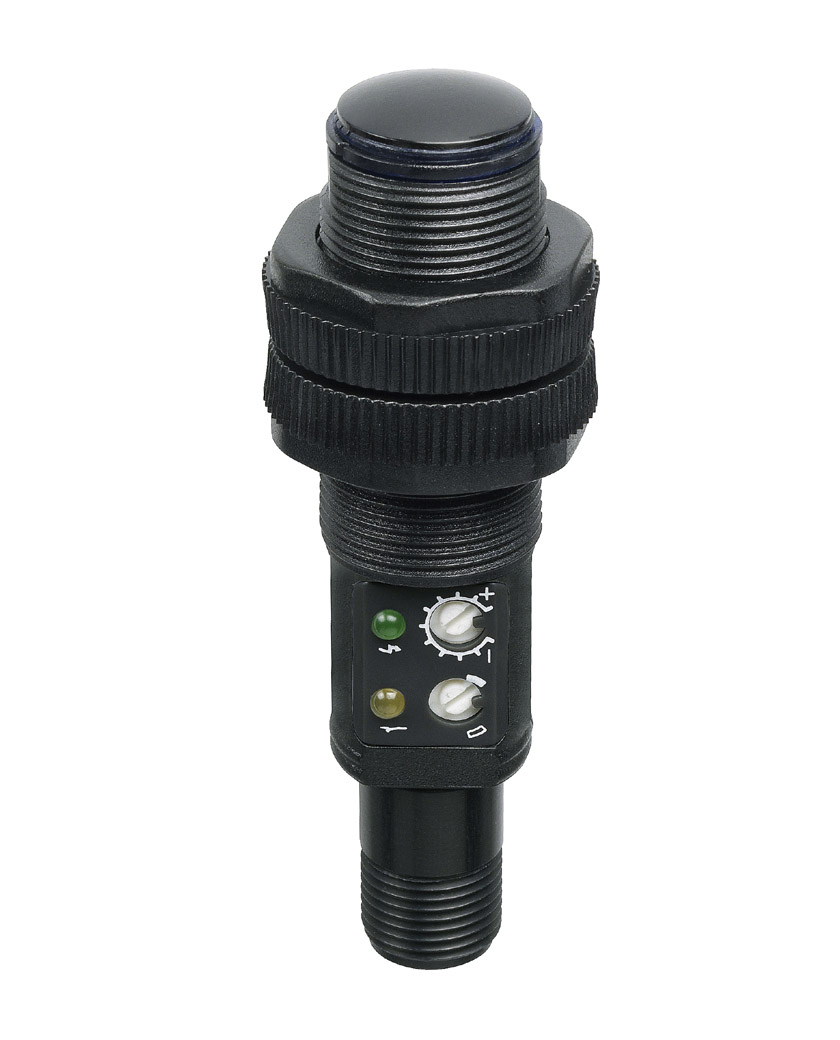

SMR 7607 TP J
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 30 V dc Control Feature Sensitivity pot. and light/dark switch Sensing Range 7 m Output NPN/PNP Output Status N.C./N.O. Housing M18 x 1 Housing Material Plastic Connection 4 pin, M12 plug -
SMR 7620 TP J
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 30 V dc Control Feature Sensitivity pot. and light/dark switch Sensing Range 20 m Output NPN/PNP Output Status N.C./N.O. Housing M18 x 1 Housing Material Plastic Connection 4 pin, M12 plug -

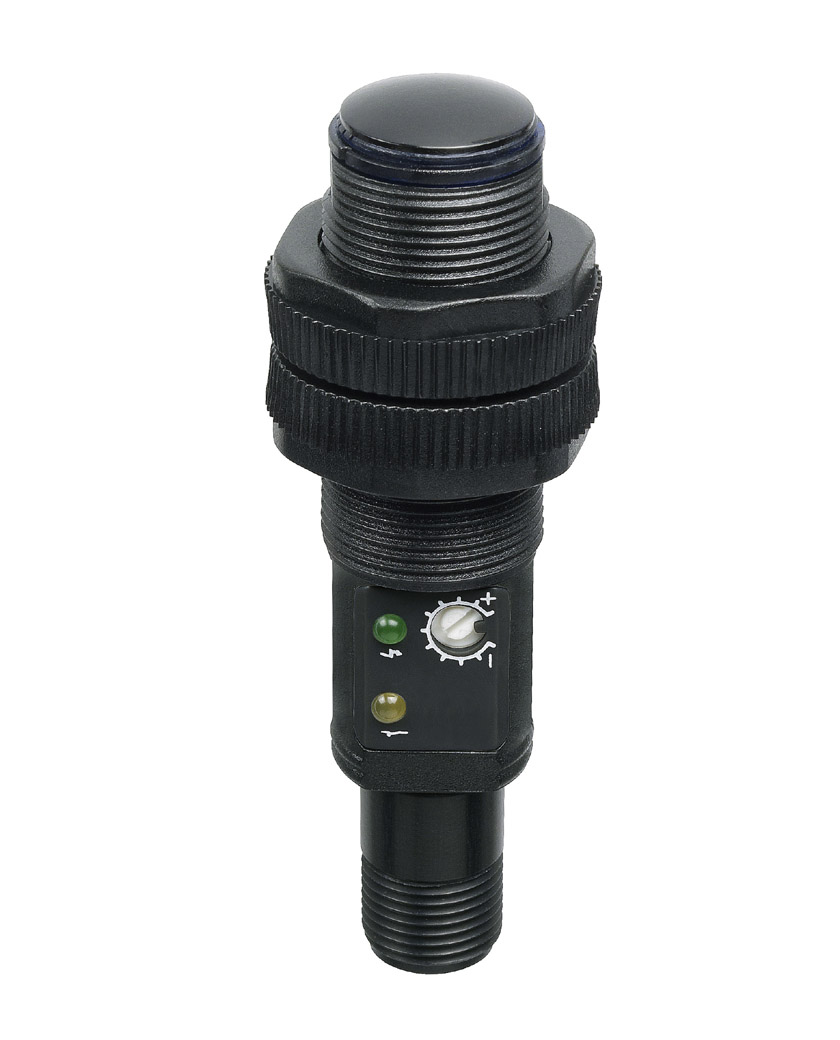

SMR 7707 TP J
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 30 V dc Control Feature Sensitivity pot. Sensing Range 7 m Output PNP/PNP Output Status N.C./N.O. Housing M18 x 1 Housing Material Plastic Connection 4 pin, M12 plug -
SMR 7720 TP J
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 30 V dc Control Feature Sensitivity pot. Sensing Range 20 m Output PNP/PNP Output Status N.C./N.O. Housing M18 x 1 Housing Material Plastic Connection 4 pin, M12 plug
Product Data
| Operation Mode | Thru Beam |
| Function | Transmitter |
| Supply Voltage | 10 - 30 V dc |
| Light Source | Infrared (880 nm) |
| Control Feature | Test input |
| Sensing Range | 20 m |
| Housing | M18 x 1 |
| Housing Material | Plastic |
| Connection | 4 pin, M12 plug |
Technical Data
| Supply Voltage | 10 - 30 V dc |
| Voltage Ripple | 15 % |
| Reverse Polarity Protected | Yes |
| Current Consumption | 25 mA |
| Test Input | Yes |
| Power On Indicator | Green LED |
| Light Source | Infrared (880 nm) |
| Emission Angle | +/- 2° |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Polycarbonate |
Environmental Data
| Vibration | 10 - 55 Hz, 0,5 mm |
| Shock | 30 g |
| Operation Temperature | -20 to +60 °C |
| Storage Temperature | -40 to +80 °C |
| Sealing Class | IP 67 |
Technical Drawings
-
Wiring Diagram
-
Connections
-
Parallel Displacement
-
Angular Displacement
-

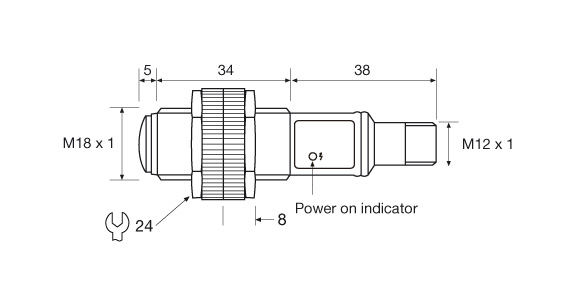

Dimensions
