SM 7000

SpaceMaster™ SERIES

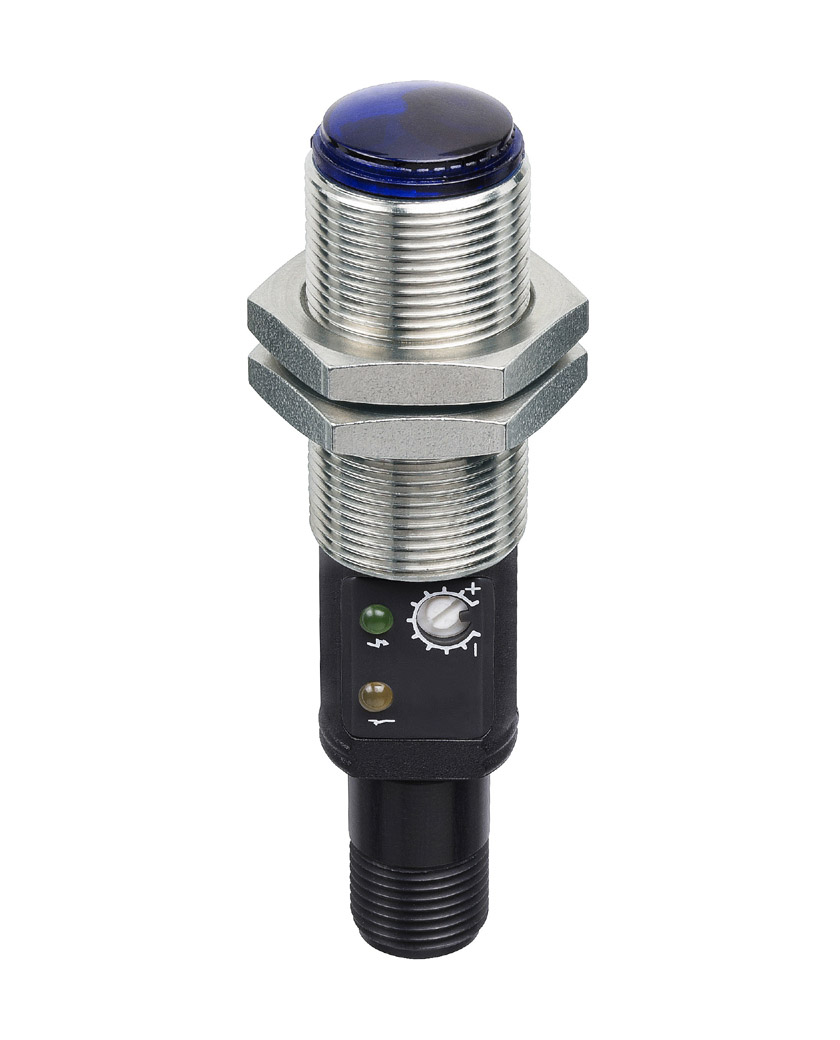

SMR 7720 TS J

Thru Beam

Photoelectric Sensors

SMR 7720 TS J

Thru Beam

  • CE

Compatible Transmitters

  • SMT 7000 TS J
    SMT 7000 TS J
    Operation Mode Thru Beam
    Function Transmitter
    Supply Voltage 10 - 30 V dc
    Light Source Infrared (880 nm)
    Control Feature Test input
    Sensing Range 20 m
    Housing M18 x 1
    Housing Material Stainless Steel
    Connection 4 pin, M12 plug

Product Data

Operation Mode Thru Beam
Function Receiver
Supply Voltage 10 - 30 V dc
Control Feature Sensitivity pot.
Sensing Range 20 m
Output PNP/PNP
Output Status N.C./N.O.
Housing M18 x 1
Housing Material Stainless Steel
Connection 4 pin, M12 plug

Technical Data

Supply Voltage 10 - 30 V dc
Voltage Ripple 15 %
Reverse Polarity Protected Yes
Short Circuit Protected Yes
Current Consumption 15 mA
Max. Output Load 120 mA / 30 V dc
Max. Residual Voltage 2 V
Max. Operation Frequency 250 Hz
Response Time ton / toff 2 ms / 2 ms
Power On Indicator Green LED
Output Indicator Yellow LED
Hysteresis Approx. 15 - 20 %
Opening Angle +/- 6°
Housing Material, Front Lens Polycarbonate
Housing Material, Sensor Housing Stainless Steel (AISI 316 / 1.4401)
Cable 4 x 0,14 mm²
Cable Sleeve PVC Ø 4,0 mm

Environmental Data

Vibration 10 - 55 Hz, 0,5 mm
Shock 30 g
Operation Temperature -20 to +60 °C
Storage Temperature -40 to +80 °C
Sealing Class IP 67
Light Immunity 5˚ > 20 000 lux

Technical Drawings

  • Wiring Diagram Wiring Diagram
  • Connections Connections
  • Parallel Displacement Parallel Displacement
  • Angular Displacement Angular Displacement

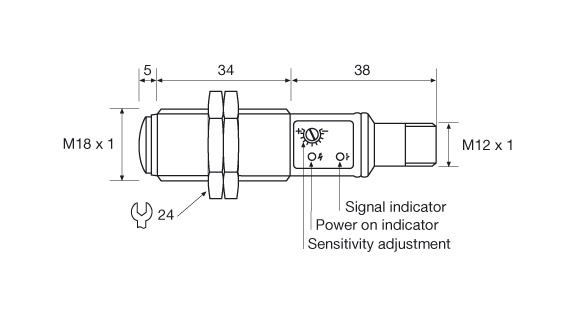

  • Dimensions Dimensions
Document
