SpaceMaster™

SM 7000

Thru Beam"

Standard, Photoelectric Sensors"

Icon for Thru Beam
Add to MyList

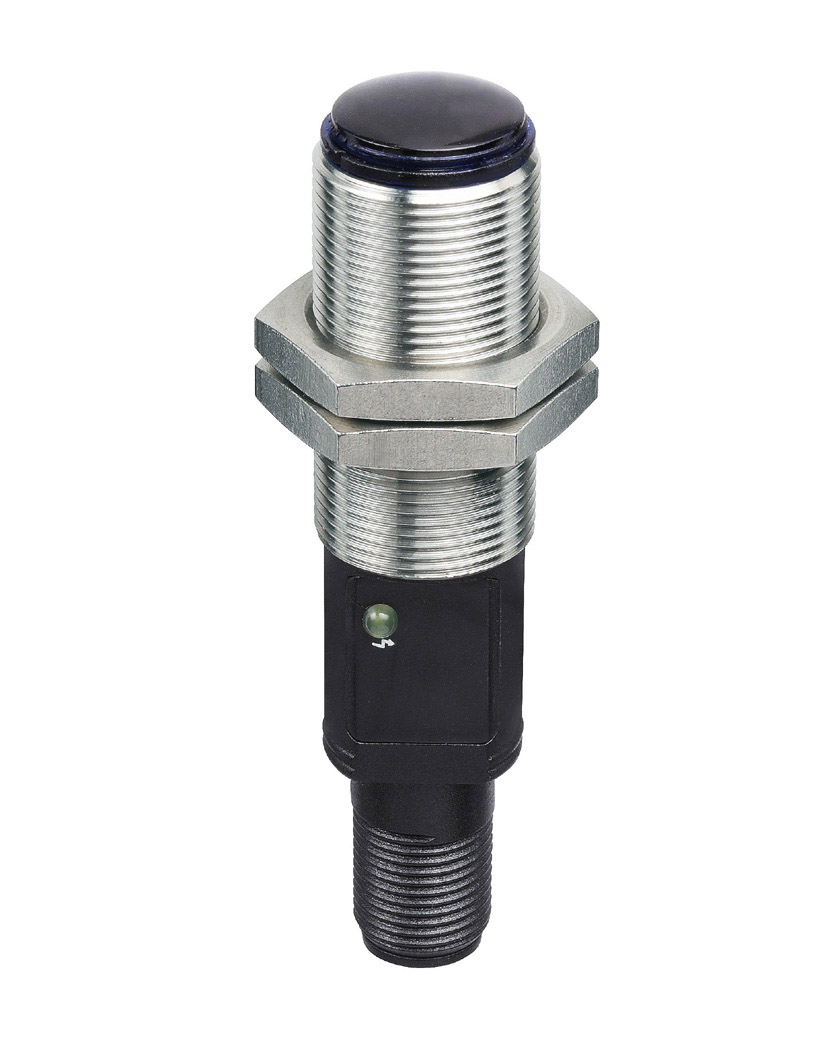

Type Name: SMR 7620 TS J

Compatible Transmitter:

SMT 7000 TS J

Product Data
Function Receiver
Supply Voltage 10 - 30 V dc
Light Source -
Housing Material Stainless Steel
Housing M18 x 1
Control Feature Sensitivity pot. and light/dark switch

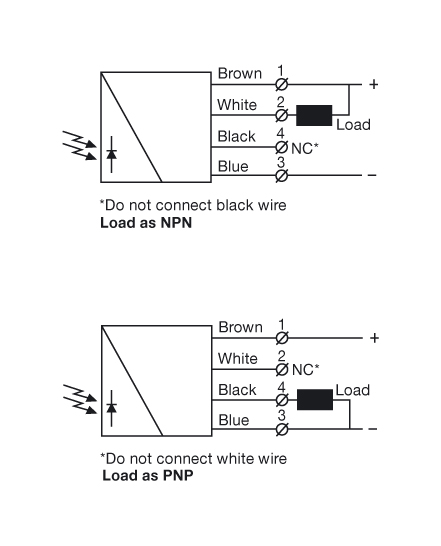

Connection 4 pin, M12 plug

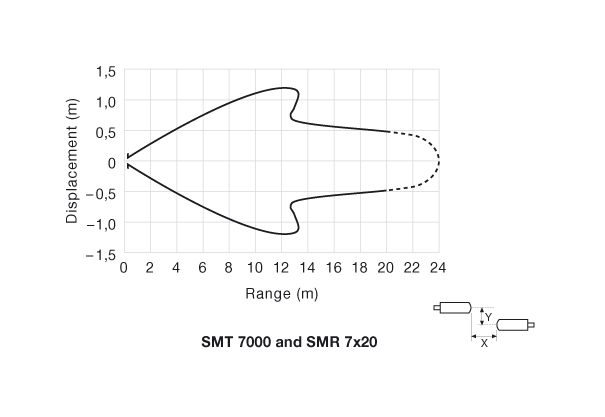

Sensing Range 20 m
Output NPN/PNP
Output Status N.C./N.O.
Operation Mode Thru Beam
Technical Data
Supply Voltage 10 - 30 V dc
Voltage Ripple 15 %
Reverse Polarity Protected Yes
Short Circuit Protected Yes
Current Consumption 15 mA
Max. Output Load 120 mA / 30 V dc
Max. Residual Voltage 2 V
Max. Operation Frequency 250 Hz
Power On Indicator Green LED
Output Indicator Yellow LED
Hysteresis Approx. 15 - 20 %
Light Source -

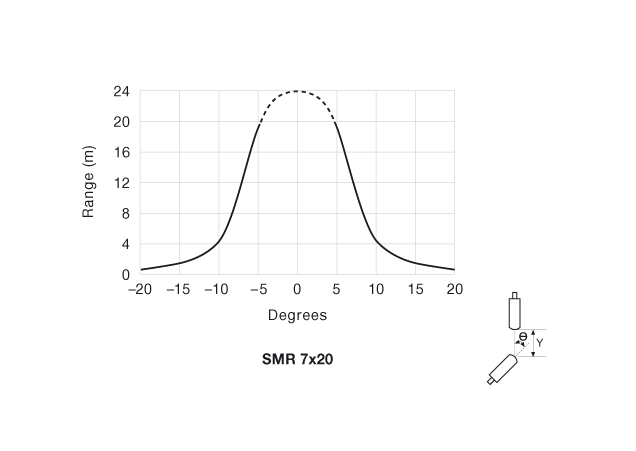

Opening Angle +/- 6°
Emission Angle -
Cable 4 x 0,14 mm²
Response Time ton / toff 2 ms / 2 ms
Housing Material Sensor Housing Stainless Steel (AISI 316 / 1.4401)
Housing Material Lens Cover Polycarbonate
Cable Sleeve PVC Ø 4,0 mm
Test Input -
Control Input -
Environmental Data
Vibration 10 - 55 Hz, 0,5 mm
Shock 30 g
Operation Temperature -20 to +60 °C
Storage Temperature -40 to +80 °C
Sealing Class IP 67
Light Immunity 5˚ > 20 000 lux
Light Immunity 15˚ -
Approvals
SMR 7620 TS J
