SM 3000

SpaceMaster™ SERIES

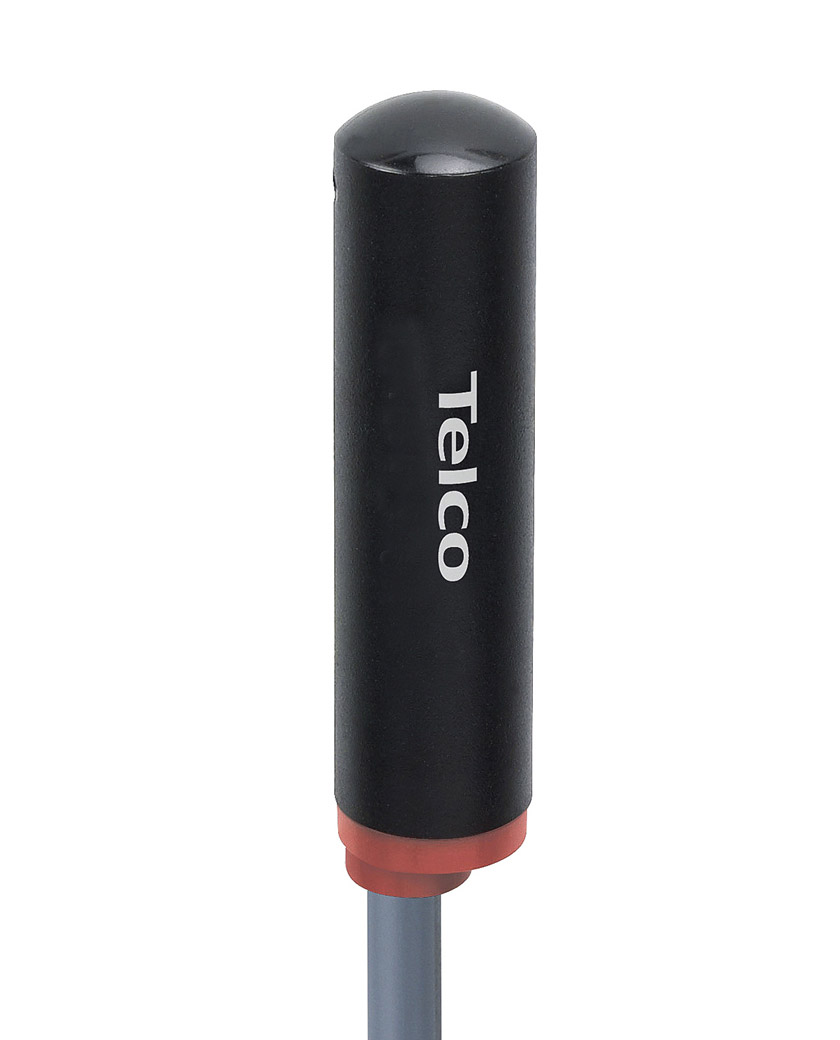

SMT 3000HC AP 5

Thru Beam

Photoelectric Sensors

SMT 3000HC AP 5

Thru Beam

  • CE

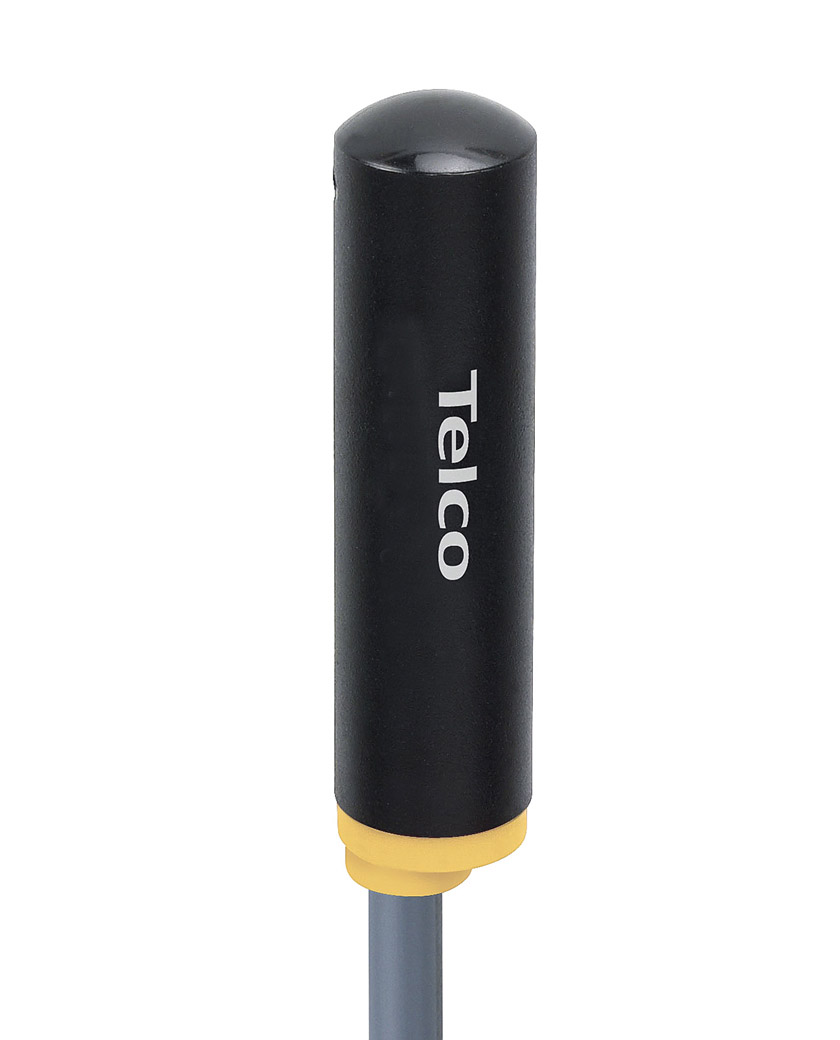

Compatible Receivers

  • SMR 3015 AP 5
    SMR 3015 AP 5
    Operation Mode Thru Beam
    Function Receiver
    Supply Voltage 10 - 30 V dc
    Sensing Range 15 m
    Output NPN
    Output Status N.C.
    Housing Ø10
    Housing Material Plastic
    Connection 5 m cable
  • SMR 3115 AP 5
    SMR 3115 AP 5
    Operation Mode Thru Beam
    Function Receiver
    Supply Voltage 10 - 30 V dc
    Sensing Range 15 m
    Output NPN
    Output Status N.O.
    Housing Ø10
    Housing Material Plastic
    Connection 5 m cable
  • SMR 3215 AP 5
    SMR 3215 AP 5
    Operation Mode Thru Beam
    Function Receiver
    Supply Voltage 10 - 30 V dc
    Sensing Range 15 m
    Output PNP
    Output Status N.C.
    Housing Ø10
    Housing Material Plastic
    Connection 5 m cable
  • SMR 3315 AP 5
    SMR 3315 AP 5
    Operation Mode Thru Beam
    Function Receiver
    Supply Voltage 10 - 30 V dc
    Sensing Range 15 m
    Output PNP
    Output Status N.O.
    Housing Ø10
    Housing Material Plastic
    Connection 5 m cable

Product Data

Operation Mode Thru Beam
Function Transmitter
Supply Voltage 10 - 30 V dc
Light Source Infrared (880 nm)
Control Feature Adjustable range and test input
Sensing Range 15 m
Housing Ø10
Housing Material Plastic
Connection 5 m cable

Technical Data

Supply Voltage 10 - 30 V dc
Voltage Ripple 15 %
Reverse Polarity Protected Yes
Current Consumption Max. 30 mA
Test Input Yes
Control Input Adjustable range
Power On Indicator Green LED
Light Source Infrared (880 nm)
Emission Angle +/- 12°
Housing Material, Front Lens Polycarbonate
Housing Material, Sensor Housing Polycarbonate
Cable 3 x 0,14 mm²
Cable Sleeve PVC Ø 3,4 mm

Environmental Data

Vibration 10 - 55 Hz, 0,5 mm
Shock 30 g
Operation Temperature -20 to +50 °C
Storage Temperature -40 to +80 °C
Sealing Class IP 67

Technical Drawings

  • Wiring Diagram Wiring Diagram

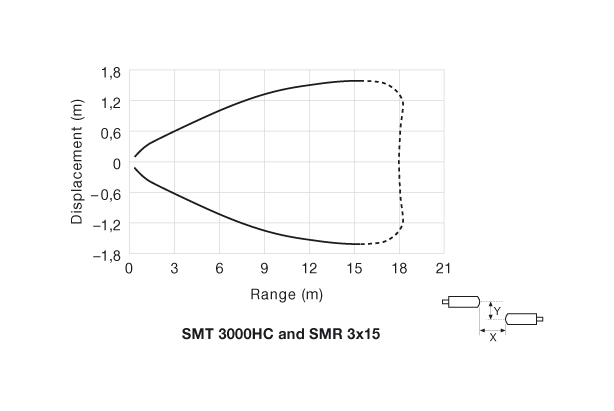

  • Parallel Displacement Parallel Displacement

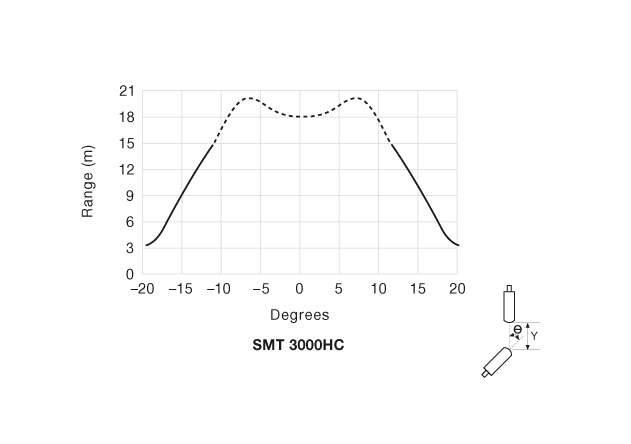

  • Angular Displacement Angular Displacement

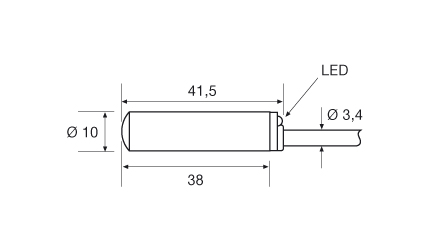

  • Dimensions Dimensions
