SB 9000

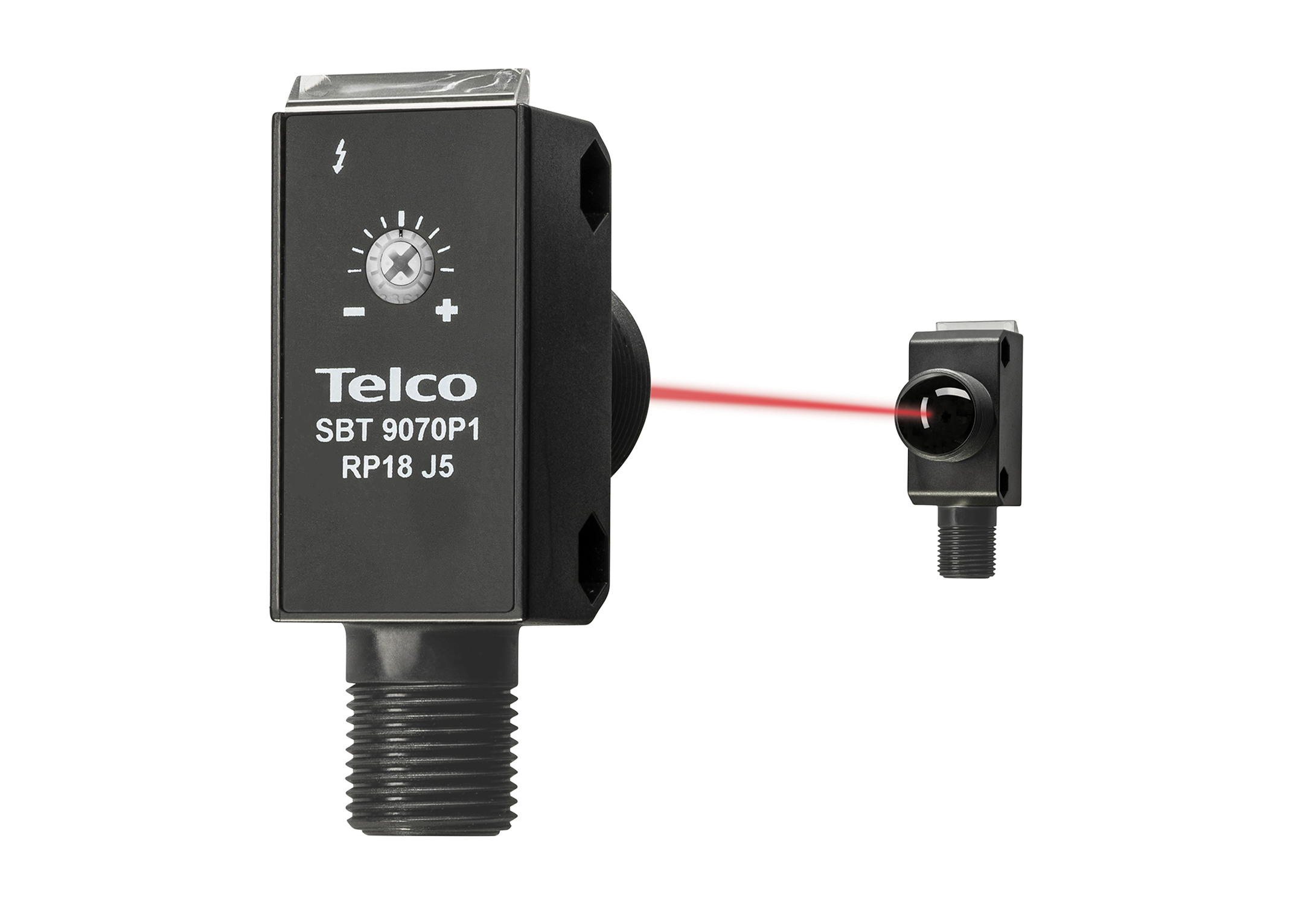

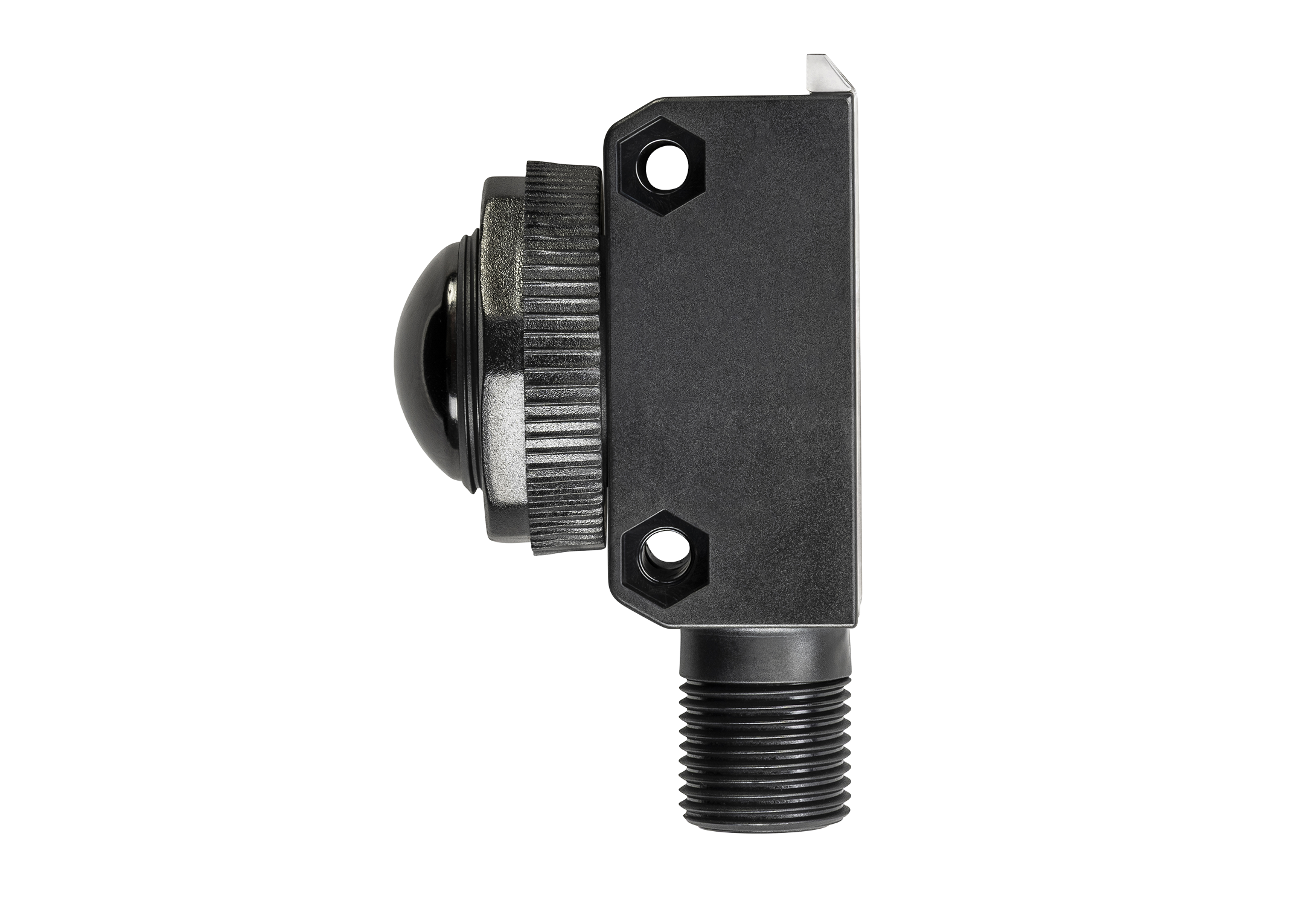

The SB 9000 series consist of a high-power self-contained transmitter SMT, and receiver SMR, which are to be used in thru-beam mode. The complete series is available in a right-angle plastic housing with either cable or plug connection.

The complete series is available with a 10-30 V dc supply voltage and a 5 wire, NPN or PNP transistor output. The series offers transmitter power adjustment via integral potentiometer or via control input wire. Switch selectable light or dark function is available.

The SB 9000 series feature cross talk elimination which enables up to 4 individual sensor pairs to operate independently, configurable with the use of a 2-wire channel selection in the SBT and SBR, ensuring that optical cross talk interference between the channels is prevented.

All products include a 3-year worldwide warranty.

Both the transmitter and receiver are protected against reverse polarity of power supplies, control input and output signals. The output is also protected against short circuits and inductive loads.
