SM 8000

SpaceMaster™ SERIES

SMRR 8500 PG J

Retro Reflective

Photoelectric Sensors

SMRR 8500 PG J

Retro Reflective

  • CE

Product Data

Operation Mode Retro Reflective
Function Both
Supply Voltage 10 - 30 V dc
Light Source Infrared (880 nm)
Control Feature Sensitivity pot. and light/dark switch
Sensing Range 3 m
Output PNP
Output Status N.C./N.O.
Housing M18 x 1
Housing Material Plastic
Connection 4 pin, M12 plug

Technical Data

Supply Voltage 10 - 30 V dc
Voltage Ripple 15 %
Reverse Polarity Protected Yes
Short Circuit Protected Yes
Current Consumption 14 mA
Max. Output Load 120 mA / 30 V dc
Max. Residual Voltage 1,5 V
Max. Operation Frequency 250 Hz
Response Time ton / toff 2 ms / 2 ms
Power On Indicator Green LED
Output Indicator Yellow LED
Hysteresis Approx. 5 - 15 %
Opening Angle +/- 3,5°
Housing Material, Front Lens Polycarbonate
Housing Material, Sensor Housing Polycarbonate

Environmental Data

Vibration 10 - 55 Hz, 0,5 mm
Shock 30 g
Operation Temperature -20 to +60 °C
Storage Temperature -40 to +80 °C
Sealing Class IP 67
Light Immunity 15˚ > 25 000 lux

Technical Drawings

  • Wiring Diagram Wiring Diagram
  • Connections Connections
  • Parallel Displacement Parallel Displacement

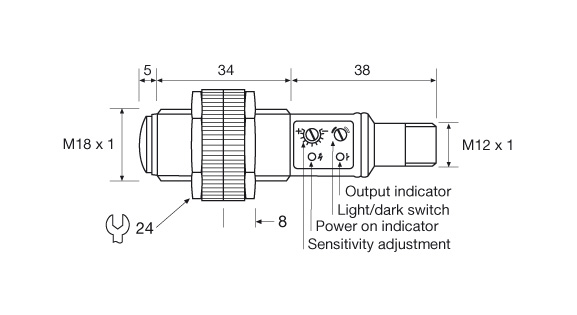

  • Dimensions Dimensions
