SM 7000

SpaceMaster™ SERIES


SMP 7600 TS J

Diffuse Proximity

Photoelectric Sensors

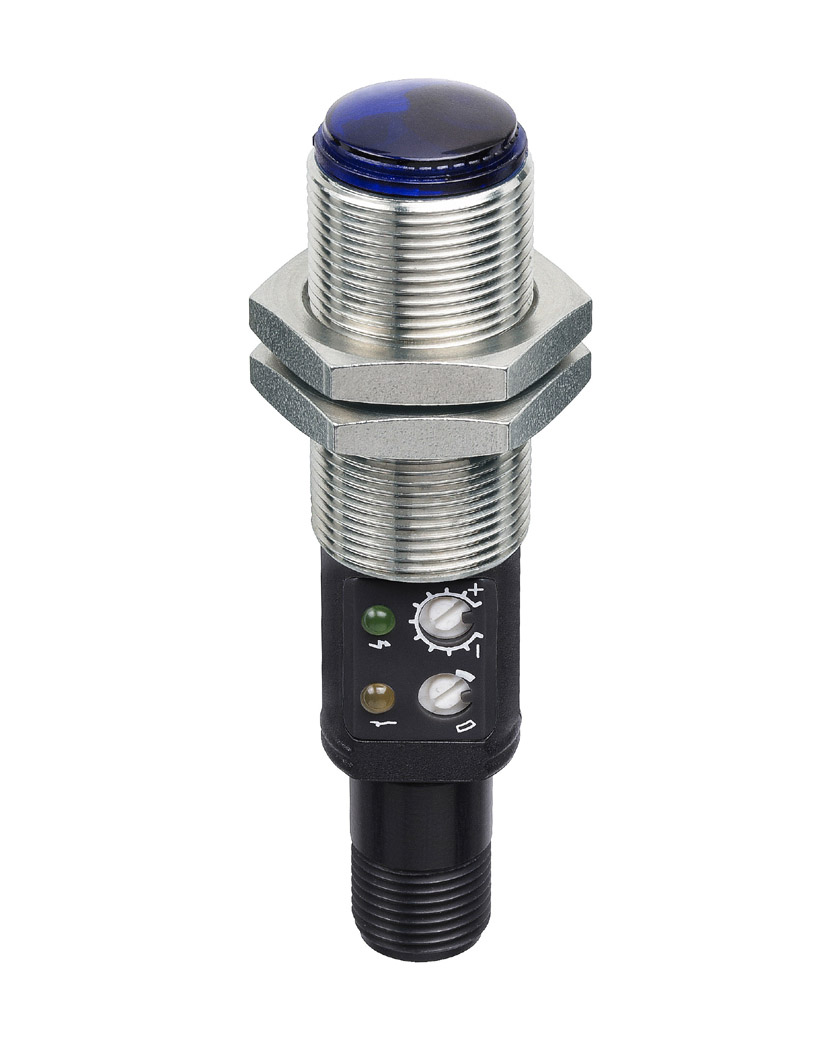

SMP 7600 TS J

Diffuse Proximity

  • CE

Product Data

Operation Mode Diffuse Proximity
Function Both
Supply Voltage 10 - 30 V dc
Light Source Infrared (880 nm)
Control Feature Sensitivity pot. and light/dark switch
Sensing Range 0,5 m
Output NPN/PNP
Output Status N.C./N.O.
Housing M18 x 1
Housing Material Stainless Steel
Connection 4 pin, M12 plug

Technical Data

Supply Voltage 10 - 30 V dc
Voltage Ripple 15 %
Reverse Polarity Protected Yes
Short Circuit Protected Yes
Current Consumption 20 mA
Max. Output Load 120 mA / 30 V dc
Max. Residual Voltage 2 V
Max. Operation Frequency 250 Hz
Response Time ton / toff 2 ms / 2 ms
Power On Indicator Green LED
Output Indicator Yellow LED
Hysteresis Approx. 3 - 10 %
Light Source Infrared (880 nm)
Opening Angle +/- 4°
Housing Material, Front Lens Polycarbonate
Housing Material, Sensor Housing Stainless Steel (AISI 316 / 1.4401)
Cable 4 x 0,14 mm²
Cable Sleeve PVC Ø 4,0 mm

Environmental Data

Vibration 10 - 55 Hz, 0,5 mm
Shock 30 g
Operation Temperature -20 to +60 °C
Storage Temperature -40 to +80 °C
Sealing Class IP 67
Light Immunity 15˚ > 40 000 lux

Technical Drawings

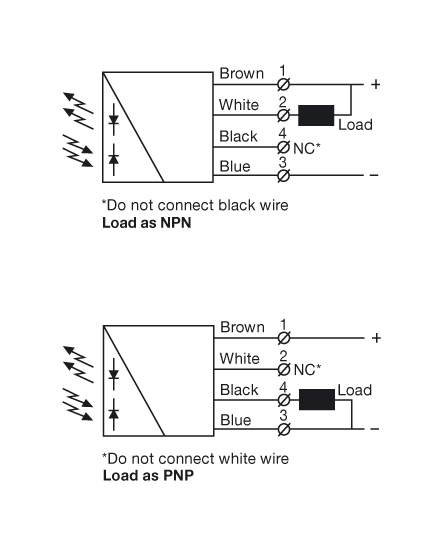

  • Wiring Diagram Wiring Diagram
  • Connections Connections

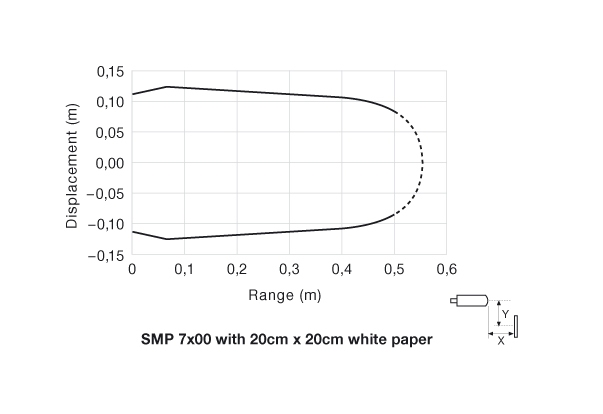

  • Parallel Displacement Parallel Displacement

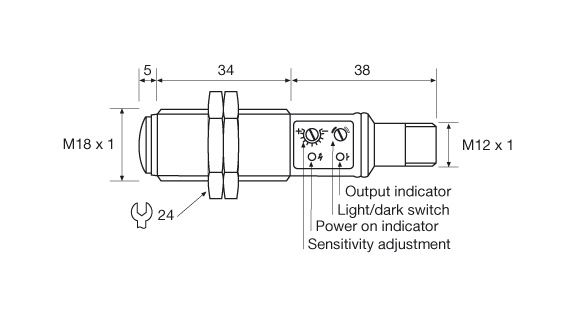

  • Dimensions Dimensions
