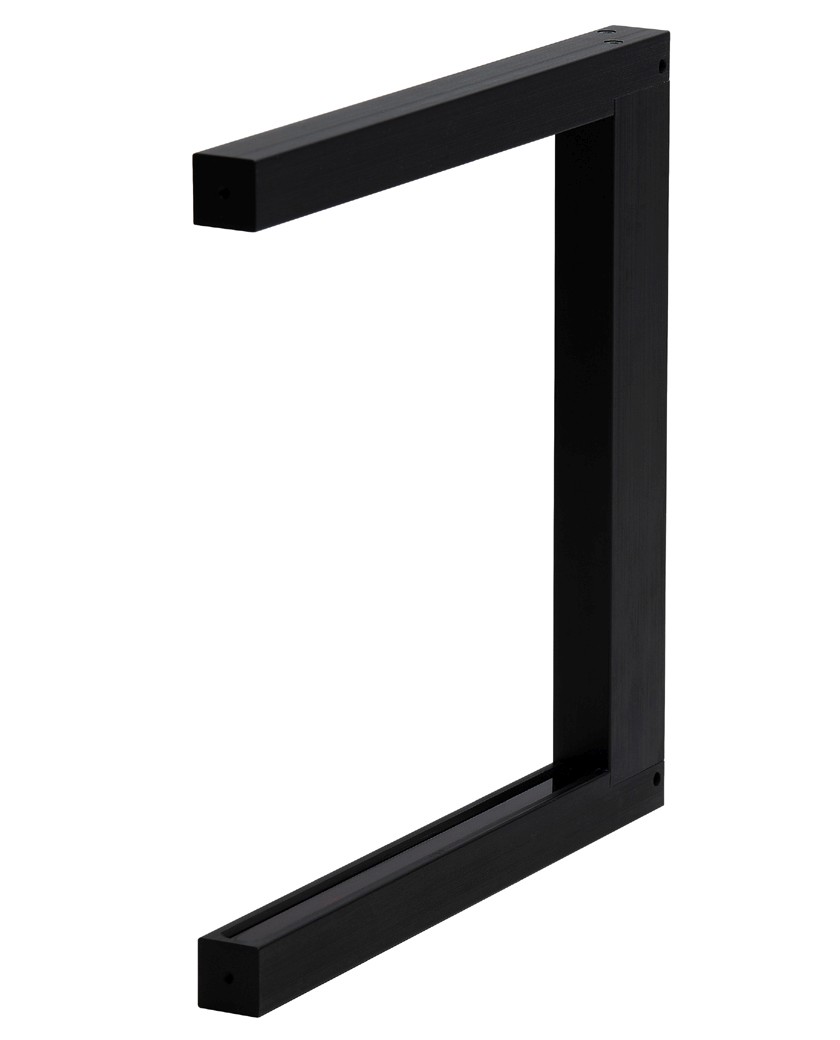

OAS

Product Data

Operation Mode	Frame Sensors
Function	Frame Sensor
Supply Voltage	24 V dc
Light Source	Infrared (880 nm)
Control Feature	Sensitivity pot. and pulse time pot.
Output	PNP
Output Status	N.O.
Fork Opening Width	150 mm
Fork Opening Depth	144 mm

Technical Data

Supply Voltage	24 V dc
Voltage Tolerance	+/- 20 %
Reverse Polarity Protected	Yes
Short Circuit Protected	Yes
Current Consumption	Max. 70 mA
Max. Output Load	200 mA
Response Time ton / toff	0,1 ms / 0,1 ms
Output Indicator	Yellow LED
Hysteresis	< 0,2 mm
Light Source	Infrared (880 nm)
Resolution	3,0 mm
Operation Frequency	5000 Hz
Housing Material, Front Lens	PMMA
Housing Material, Fork Housing	Aluminium (black anodised)

Environmental Data

Vibration	10 - 55 Hz, 0,5 mm
Shock	10 g
Operation Temperature	– 20 to +60 °C
Storage Temperature	– 40 to +80 °C
Sealing Class	IP 67
Light Immunity 15˚	> 50 000 lux

Technical Drawings

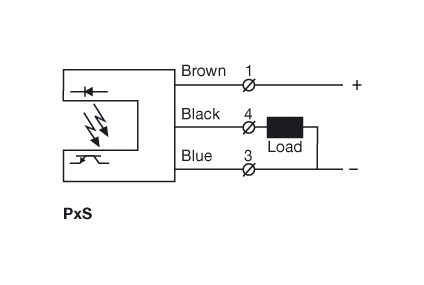

• Wiring Diagram
• Connections

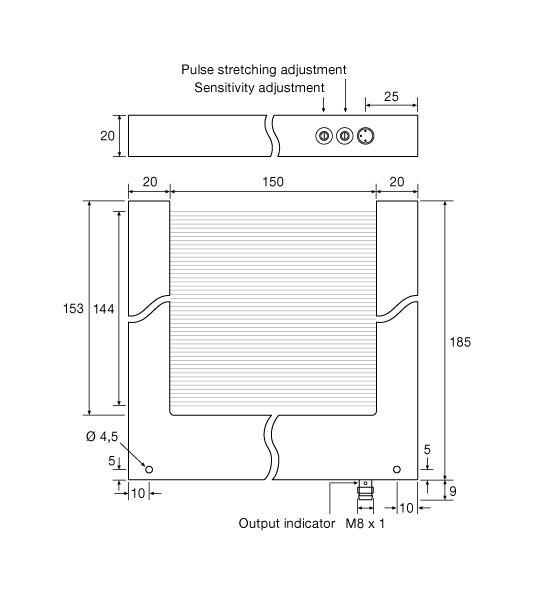

• Dimensions
