SG 13
SpaceGuard™ SERIES
SGT 13-193-016-E1-G-01-15
Self-Contained Light Curtains
Light Curtains
Compatible Receivers
-
SGR 13-193-016-E1-G-09-5
Operation Mode Thru Beam Function Receiver Supply Voltage 12 - 30 V dc Active Height 1800 mm Number of Channels 16 Sensing Range 10 m Output Solid State Relay Output Status N.C. Response 50 ms Housing 19,5 mm x 21,3 mm Length 1948 mm Connection 5 m cable Features Dynamic Sequential Blanking Function
Product Data
| Operation Mode | Thru Beam |
| Function | Transmitter |
| Supply Voltage | 12 - 30 V dc |
| Active Height | 1800 mm |
| Number of Channels | 16 |
| Sensing Range | 10 m |
| Housing | 19,5 mm x 21,3 mm |
| Length | 1948 mm |
| Connection | 15 m cable |
Technical Data
| Max. Sequencial Blanking Speed | 1,9 m/s |
| Supply Voltage | 12 - 30 V dc |
| Reverse Polarity Protected | Yes |
| Current Consumption | 70 mA |
| Spacing between bottom & Ch1 | 45 mm |
| Channel Spacing | 45 mm : up to 315 mm and two top channels - 180 mm : from 315 mm to top |
| Test Input | Yes |
| Power On Indicator | Green LED |
| Light Source | Infrared (880 nm) |
| Profile Dimensions (w x d) | G Profile, 19,5 mm x 21,3 mm |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Profile | Aluminium (black anodised) |
| Cable | 5 x 0,20 mm² |
| Cable Sleeve | PVC Ø 4,9 mm |
Environmental Data
| Operation Temperature | –20 to +65 °C |
| Storage Temperature | –40 to +80 °C |
| Sealing Class | IP 67 |
| Light Immunity 5˚ | > 100 000 lux |
Technical Drawings
-

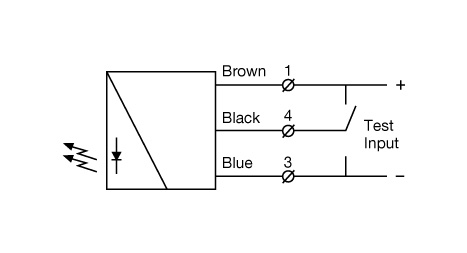

Wiring Diagram
-
Parallel Displacement
-
Beam Patterns
-
Dimensions
