SG 1
SpaceGuard™ SERIES
SGT 1-210-040-A1-A-00-3F
Self-Contained Light Curtains
Light Curtains
Compatible Receivers
-
SGR 1-210-040-A1-A-04-3F
Operation Mode Thru Beam Function Receiver Supply Voltage 12 - 36 V dc Active Height 1800 mm Number of Channels 40 Sensing Range 4 m Output Solid State Relay Output Status N.O. Response < 80 ms Housing 10 x 28 mm Length 2100 mm Connection 3 m flexible cable Features Time-out Function -
SGR 1-210-040-A1-A-05-3F
Operation Mode Thru Beam Function Receiver Supply Voltage 12 - 36 V dc Active Height 1800 mm Number of Channels 40 Sensing Range 4 m Output Solid State Relay Output Status N.C. Response < 80 ms Housing 10 x 28 mm Length 2100 mm Connection 3 m flexible cable Features Time-out Function
Product Data
| Operation Mode | Thru Beam |
| Function | Transmitter |
| Supply Voltage | 12 - 36 V dc |
| Active Height | 1800 mm |
| Number of Channels | 40 |
| Sensing Range | 4 m |
| Housing | 10 x 28 mm |
| Length | 2100 mm |
| Connection | 3 m flexible cable |
Technical Data
| Supply Voltage | 12 – 36 V dc |
| Reverse Polarity Protected | Yes |
| Current Consumption | Max. 100 mA |
| Spacing between bottom & Ch1 | 25 mm |
| Distance, Beams Pinch Point | 23 mm |
| Channel Spacing | 46 mm |
| Test Input | Yes |
| Power On Indicator | Green LED |
| Time-out Function | Up to 4 non-adjacent channels, selectable |
| Light Source | Infrared (940 nm) |
| Profile Dimensions (w x d) | Slim Line (A), 10 x 28 mm |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Profile | Aluminium (black anodised) |
| Cable | 3 x 0,14 mm² |
| Cable Sleeve | PVC Ø 4,1 mm |
Environmental Data
| Operation Temperature | –20 to +65 °C |
| Storage Temperature | –40 to +80 °C |
| Sealing Class | IP 54 |
| Light Immunity 5˚ | > 100 000 lux |
Technical Drawings
-
Wiring Diagram
-
Parallel Displacement
-

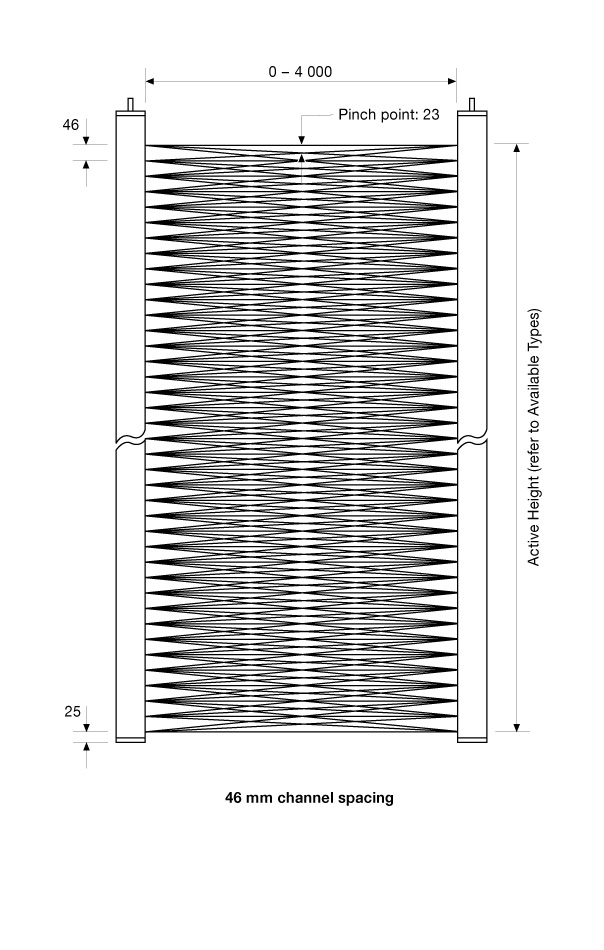

Beam Patterns
-
Dimensions
