SG 11
SpaceGuard™ SERIES

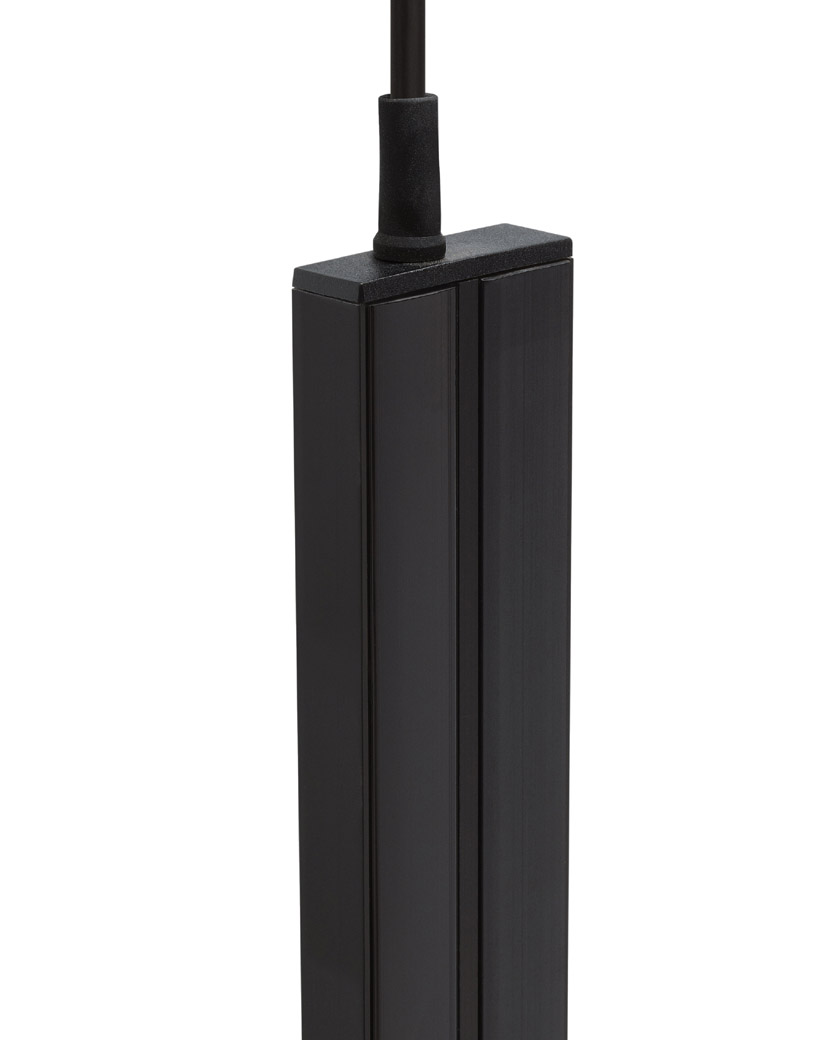

SGR 170-056-A1-B-0.5F
Remote Light Curtains
Light Curtains
Compatible Transmitters
-

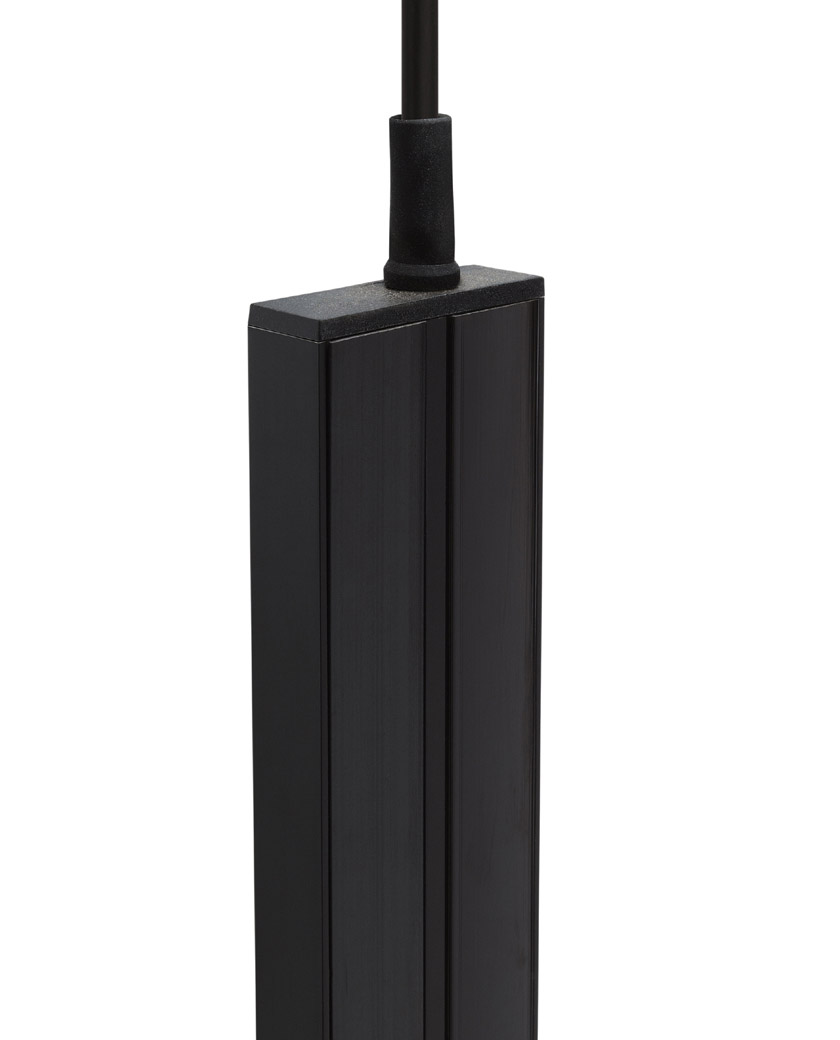

SGT 170-056-A1-B-0.5F
Operation Mode Thru Beam Function Transmitter Active Height 1545 mm Number of Channels 56 Sensing Range 3,5 m Housing 37,5 x 13 mm Length 1695 mm Connection 0.5 m flexible cable
Product Data
| Operation Mode | Thru Beam |
| Function | Receiver |
| Active Height | 1545 mm |
| Number of Channels | 56 |
| Sensing Range | 3,5 m |
| Housing | 37,5 x 13 mm |
| Length | 1695 mm |
| Connection | 0.5 m flexible cable |
Technical Data
| Connection Type | 5 pin, 180 DIN plug |
| Spacing between bottom & Ch1 | 22 mm |
| Channel Spacing | 28 mm |
| Power On Indicator | Red LED |
| Profile Dimensions (w x d) | Leading Edge (B), 37,5 x 13 mm |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Profile | Aluminium (black anodised) |
| Cable | 5 x 0,14 mm² |
| Cable Sleeve | PUR Ø 5,2 mm |
Environmental Data
| Operation Temperature | –20 to +55 °C |
| Storage Temperature | –40 to +80 °C |
| Sealing Class | IP 54 |
| Light Immunity 20˚ | > 10 000 lux |
Technical Drawings
-

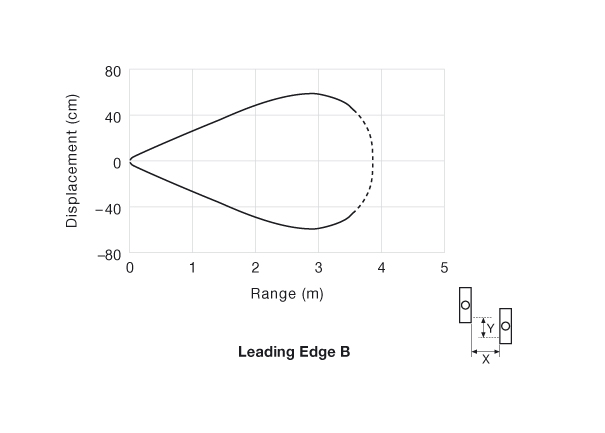

Parallel Displacement
-

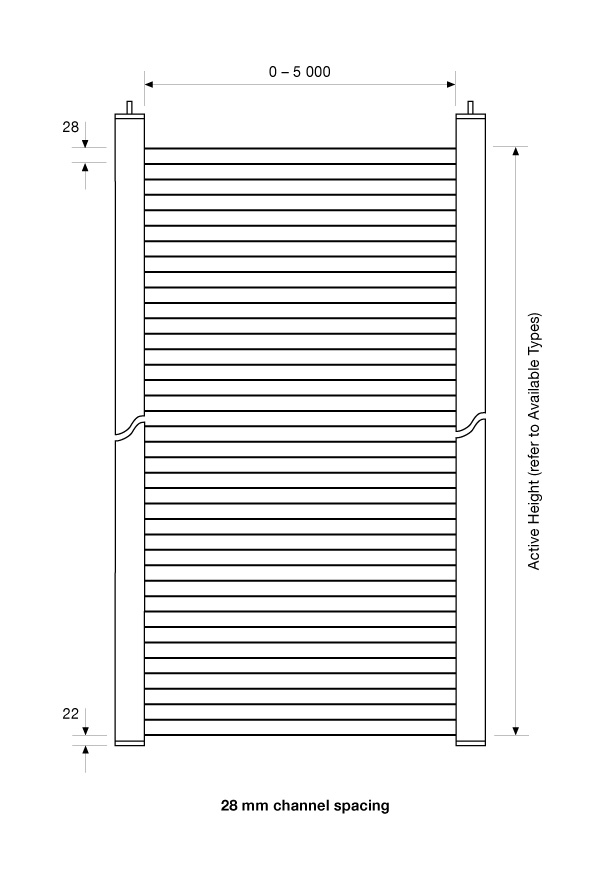

Beam Patterns
-

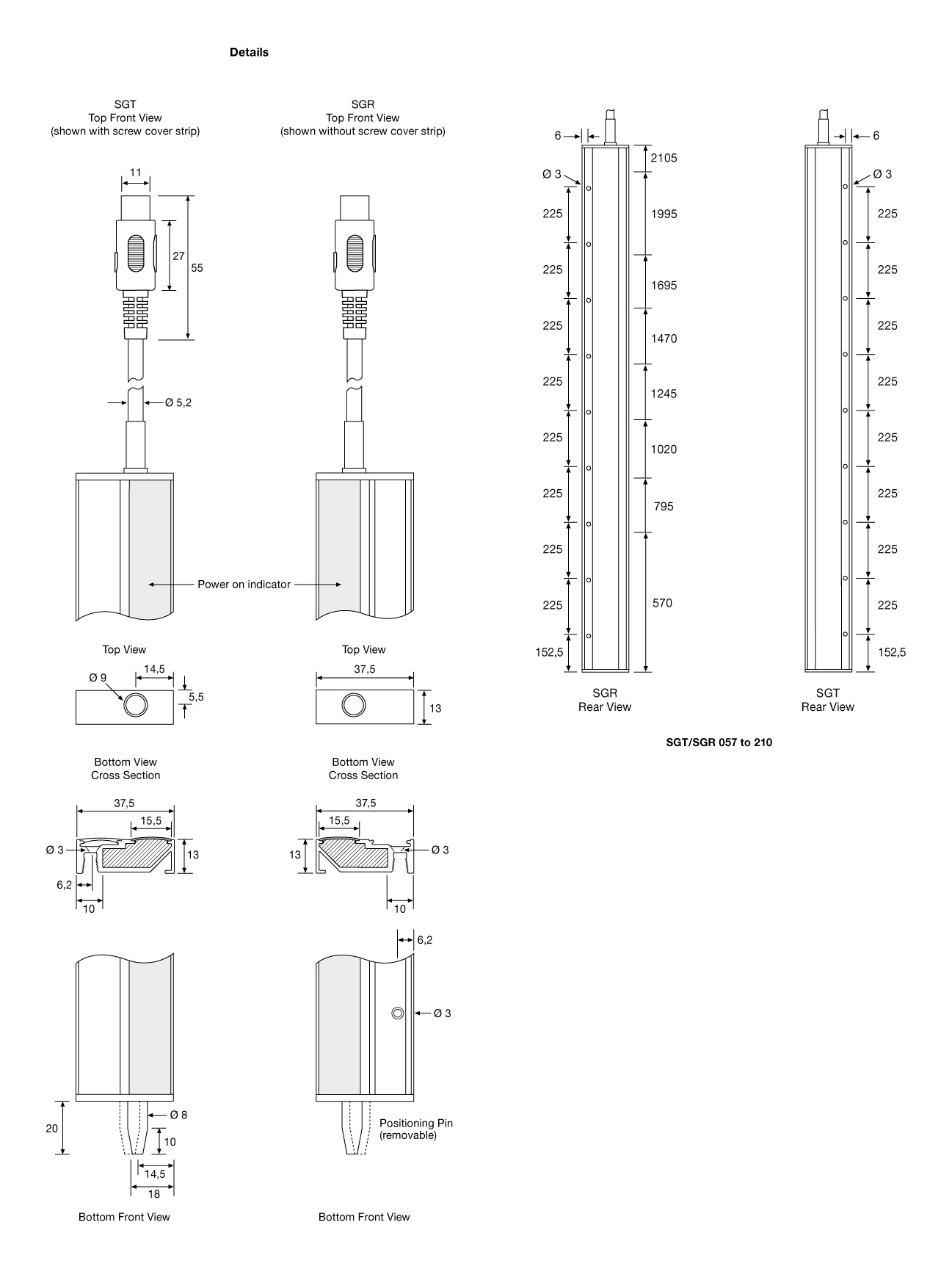

Dimensions
