SGP 30

Product Data

Operation Mode	Diffuse Proximity
Function	Both
Supply Voltage	12 - 30 V dc
Active Height	330 mm
Sensing Range	1,3 m
Output	Solid State Relay
Output Status	N.O.
Housing	23,4 x 30,9 mm
Length	510 mm
Connection	0.5 m cable with 5 pin, M12 plug
Features	Blanking Function

Technical Data

Blanking Function	Configurable
Supply Voltage	12 - 30 V dc
Reverse Polarity Protected	Yes
Short Circuit Protected	Yes
Current Consumption	120 mA
Output Rating	200 mA
Number of Channels	8
Spacing between bottom & Ch1	25 mm
Channel Spacing	46 mm
Response Time	26 ms
Power On Indicator	Green LED
Output Indicator	Yellow LED
System Status Indicator	Red LED
Light Source	Infrared (880 nm)
Opening Angle	+/- 10°
Profile Dimensions (w x d)	23,4 x 30,9 mm
Housing Material, Front Lens	Polycarbonate
Housing Material, Profile	Aluminium (black anodised)
Cable	5 x 0,20 mm²
Cable Sleeve	PVC Ø 5,9 mm

Environmental Data

Vibration	10 - 55 Hz, 0,5 mm
Shock	30 g
Operation Temperature	-30 to +60 °C
Storage Temperature	-40 to +80 °C
Sealing Class	IP 67
Light Immunity 5˚	> 100 000 lux

Technical Drawings

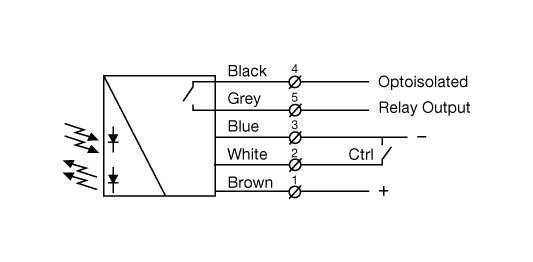

• Wiring Diagram
• Connections

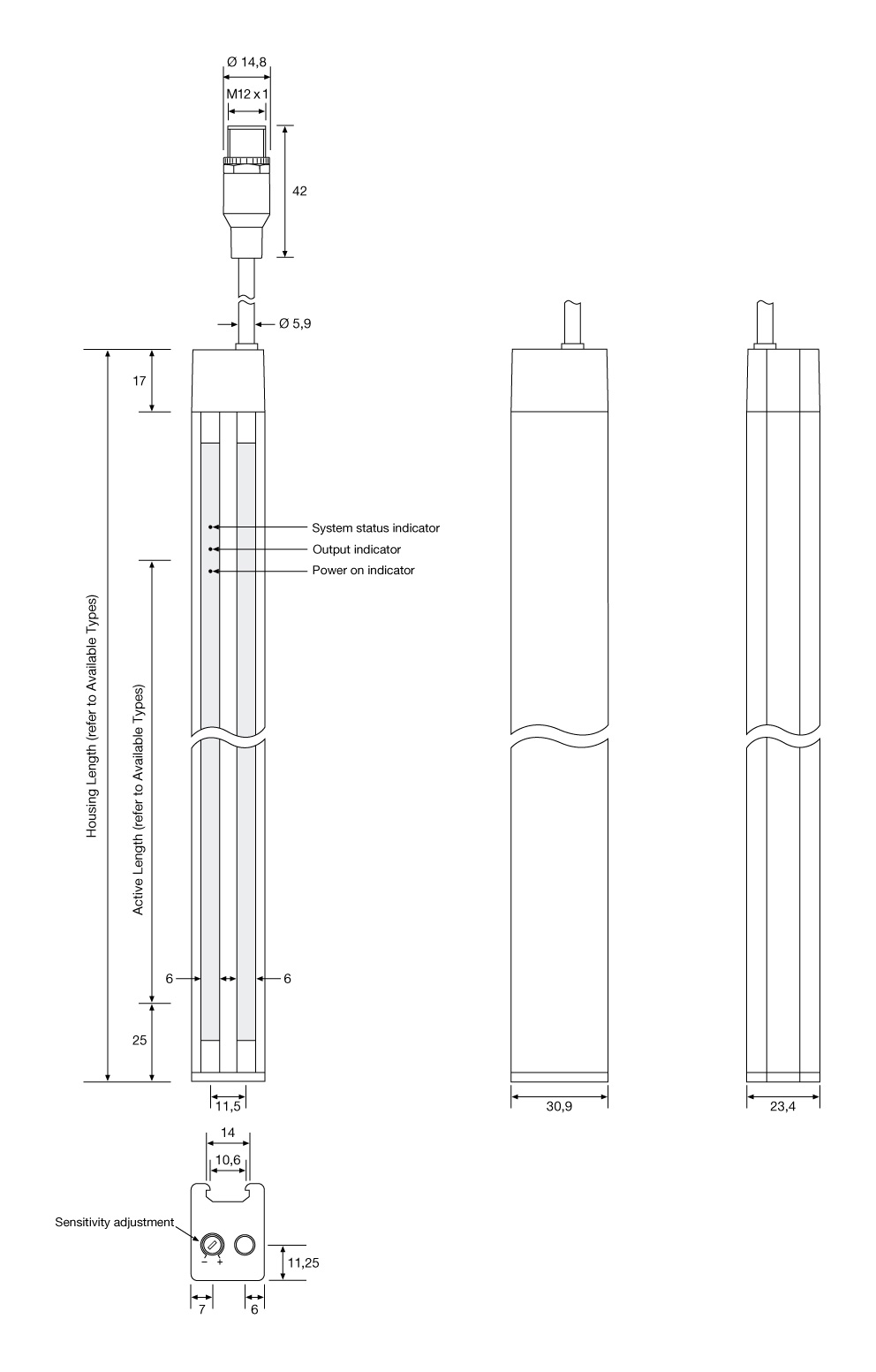

• Dimensions

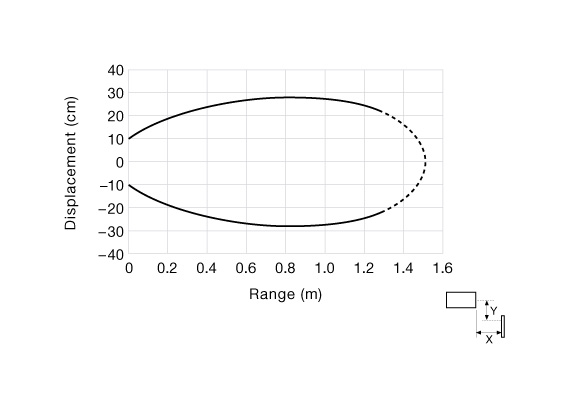

• Parallel Displacement
