SP 2000
SpacePak™ SERIES
SPR 2645 J
Thru Beam
Photoelectric Sensors
Compatible Transmitters
-
SPT 2645 J
Operation Mode Thru Beam Function Transmitter Supply Voltage 10 - 30 V dc Light Source Infrared (880 nm) Control Feature Test input Sensing Range 45 m Housing 17 x 50 x 50 Housing Material Plastic Connection 4 pin, M12 plug
Product Data
| Operation Mode | Thru Beam |
| Function | Receiver |
| Supply Voltage | 10 - 30 V dc |
| Control Feature | Sensitivity pot. and light/dark switch |
| Sensing Range | 45 m |
| Output | NPN/PNP |
| Output Status | N.C./N.O. |
| Housing | 17 x 50 x 50 |
| Housing Material | Plastic |
| Connection | 4 pin, M12 plug |
Technical Data
| Supply Voltage | 10 – 30 V dc |
| Voltage Ripple | +/– 15 % |
| Reverse Polarity Protected | Yes |
| Short Circuit Protected | Yes |
| Current Consumption | < 65 mA |
| Max. Operation Frequency | 250 Hz |
| Response Time ton / toff | 2 ms / 2 ms |
| Output, Relay | 1 open / 1 close, 240 V ac / 2 A |
| Output, Transistor | 200 mA / 30 V dc |
| Power On Indicator | Green LED |
| Output Indicator | Yellow LED |
| Signal Status Indicator | Red LED |
| Hysteresis | 20 – 30 % |
| Opening Angle | +/– 2,5° |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Polycarbonate / ABS |
| Cable | 4 x 0,20 mm2 |
| Cable Sleeve | PVC Ø 4,9 mm |
Environmental Data
| Vibration | 10 – 55 Hz, 0.5 mm |
| Shock | 30 g |
| Operation Temperature | –20 to +55 °C |
| Storage Temperature | –40 to +80 °C |
| Sealing Class | IP 67 |
| Light Immunity 5˚ | 25 000 lux |
Technical Drawings
-

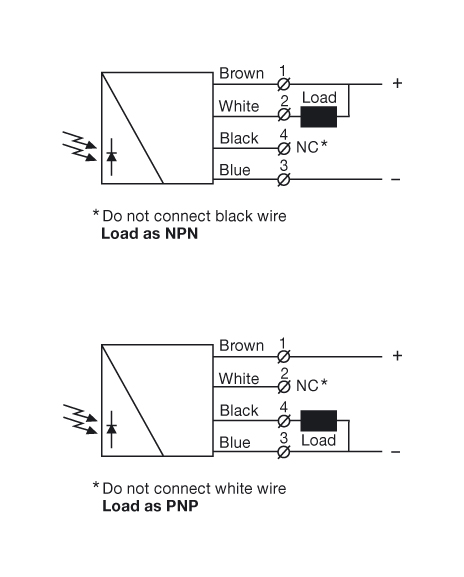

Wiring Diagram
-
Connections
-

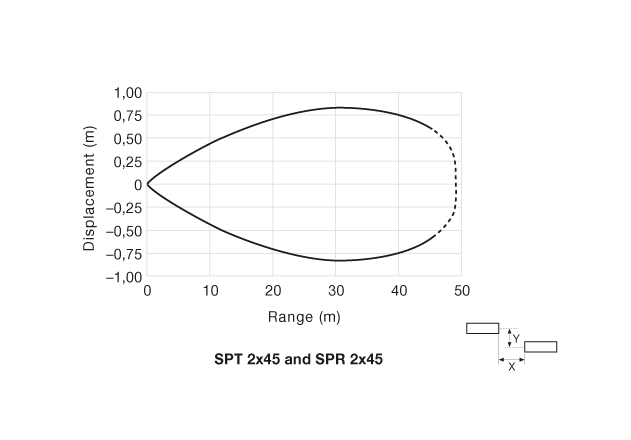

Parallel Displacement
-

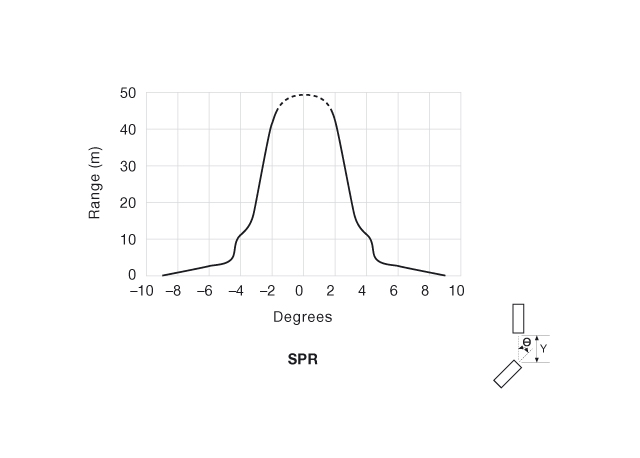

Angular Displacement
-
Dimensions
