Remote Sensors

Remote Sensors SERIES


LT 101 TP25 T3

Remote Sensors

Remote Photoelectric Systems

LT 101 TP25 T3

  • CE

Compatible Receivers

  • LR 101 TP25 T3
    LR 101 TP25 T3
    Function Receiver
    Sensing Range Up to 11 m
    Indicators None
    Optical Angle +/- 6° (opening)
    Housing M12 x 1
    Housing Material Plastic
    Connection 3 pin, M8 plug

Product Data

Function Transmitter
Sensing Range Up to 11 m
Indicators None
Optical Angle +/- 10° (emission)
Housing M12 x 1
Housing Material Plastic
Connection 3 pin, M8 plug

Technical Data

Transmitter Diode Ga Al As, (880 nm)
Light Source Infrared
Housing Material, Front Lens Polycarbonate
Housing Material, Sensor Housing Polycarbonate

Environmental Data

Vibration 10 – 55 Hz, 0,5 mm
Shock 30 g
Operation Temperature – 25 to +65 °C
Storage Temperature – 40 to +80 °C
Sealing Class IP 67
Light Immunity 20˚ > 50 000 lux

Technical Drawings

  • Wiring Diagram Wiring Diagram
  • Connections Connections
  • Parallel Displacement Parallel Displacement

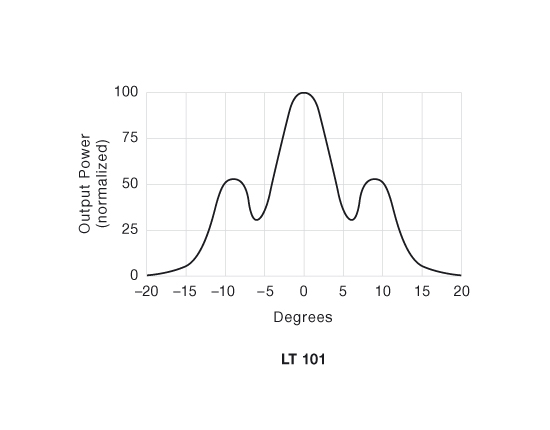

  • Angular Displacement Angular Displacement

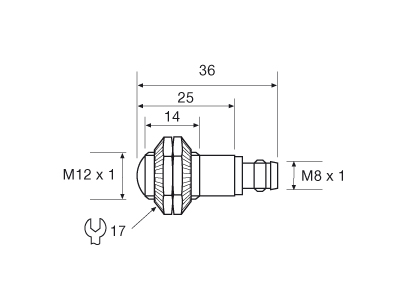

  • Dimensions Dimensions
