Remote Sensors

Remote Sensors

Remote Sensors"

Standard, Remote Photoelectric Systems"

Icon for Remote  Sensors
Add to MyList

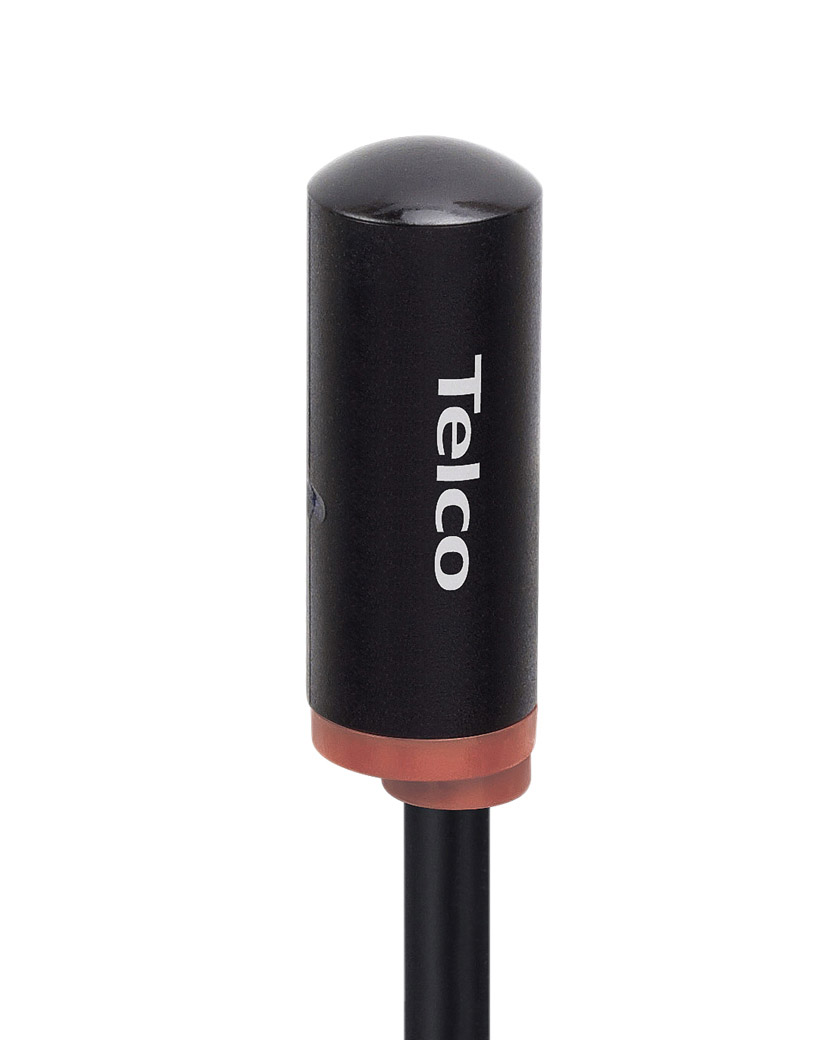

Type Name: LT 101 AP25 5

Compatible Receiver(s):

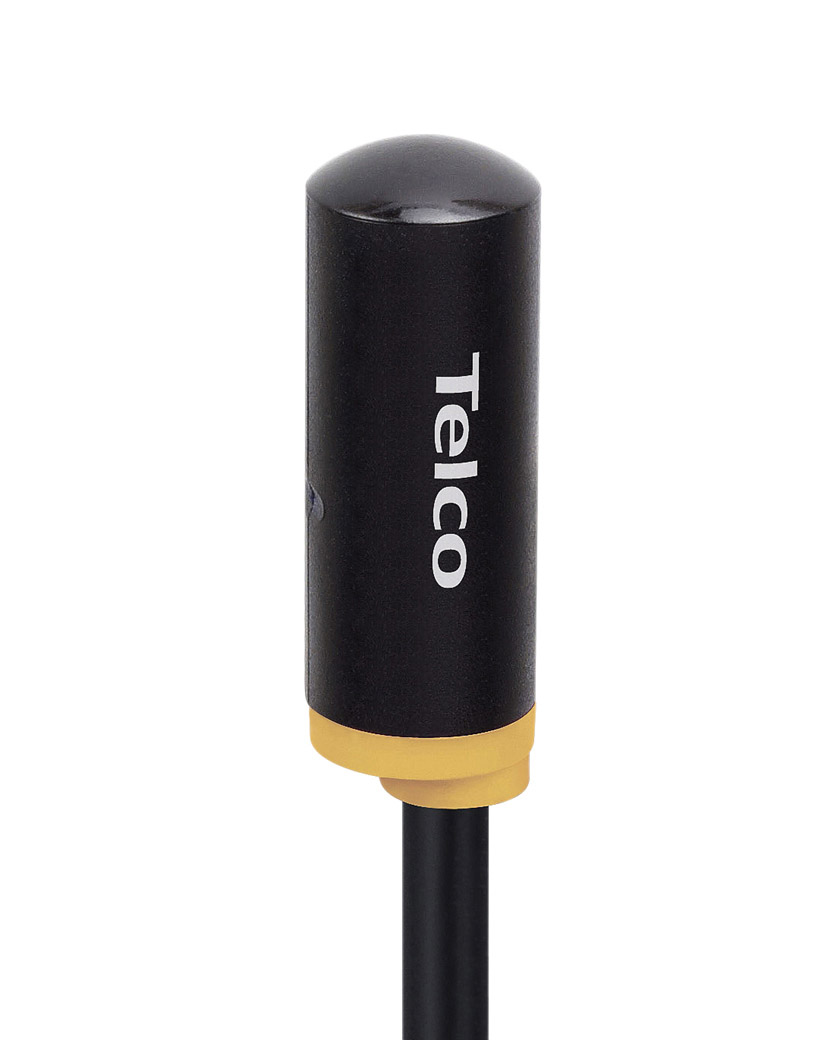

LR 101 AP25 5

Product Data
Function Transmitter
Housing Material Plastic

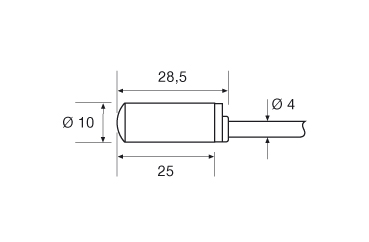

Housing Ø10
Connection 5 m cable
Sensing Range Up to 11 m
Optical Angle +/- 10° (emission)
Indicators None
Technical Data
Photo Transistor -
Power On Indicator -
Output Indicator -
Light Source Infrared
Cable 2 x 0,25 mm²
Housing Material Sensor Housing Polycarbonate
Housing Material Lens Cover Polycarbonate
Transmitter Diode Ga Al As, (880 nm)
Cable Sleeve PVC Ø 4,0 mm
Min. Cable Bending Radius 45 mm
Environmental Data
Vibration 10 – 55 Hz, 0,5 mm
Shock 30 g
Operation Temperature – 25 to +65 °C
Storage Temperature – 40 to +80 °C
Sealing Class IP 67
Light Immunity 20˚ > 50 000 lux
Approvals
LT 101 AP25 5
