Remote Sensors

Remote Sensors

Remote Sensors"

Standard, Remote Photoelectric Systems"

Icon for Remote  Sensors
Add to MyList

Type Name: LR 120L TB45 15

Compatible Transmitter:

LT 120L TB45 15

Product Data
Function Receiver
Housing Material Nickel Plated Brass
Housing M18 x 1
Connection 15 m cable
Sensing Range Up to 70 m

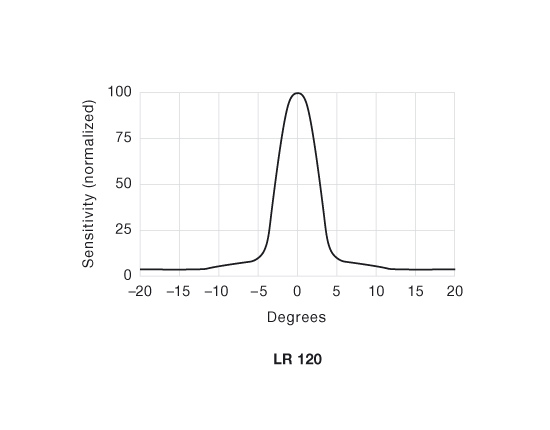

Optical Angle +/- 2,5° (opening)
Indicators Yes
Technical Data
Photo Transistor Silicon NPN
Power On Indicator Green LED
Output Indicator -
Light Source -
Cable 2 x 0,25 mm²
Housing Material Sensor Housing Nickel Plated Brass
Housing Material Lens Cover Polycarbonate
Transmitter Diode -
Cable Sleeve PVC Ø 4,0 mm
Min. Cable Bending Radius 45 mm
Environmental Data
Vibration 10 – 55 Hz, 0,5 mm
Shock 30 g
Operation Temperature – 25 to +65 °C
Storage Temperature – 40 to +80 °C
Sealing Class IP 67
Light Immunity 20˚ > 100 000 lux
Approvals
LR 120L TB45 15
