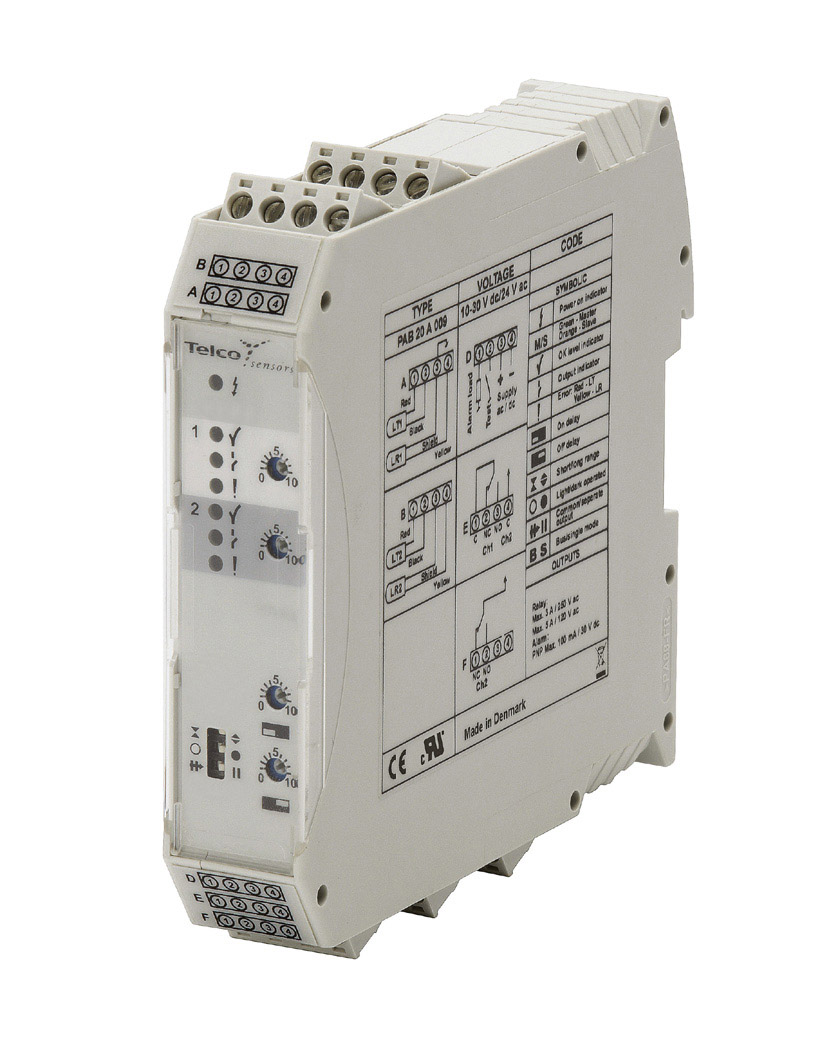

PAB 20

Product Data

Function	Amplifier
Supply Voltage	10 – 30 V dc / 24 V ac
Number of Channels	2
Sensing Range	47 m
Sensitivity Adjustment	Manual
Output	2 individual relays
Timer	On/Off Delay
Housing	Removable screw terminals

Technical Data

Supply Voltage	10 - 30 V dc or 24 V ac
Voltage Tolerance	+/- 10 %
Current Consumption	Max. 2,3 W
Response Time ton / toff, Relay	Short range: 33 ms / 26 ms Long range: 60 ms / 53 ms
Output, Relay	250 V ac / 3 A, 120 V ac / 5 A
Alarm Output, Transistor	PNP - 30 V dc / 100 mA
Test Input	Yes
Power On Indicator	Green LED
Output Indicator	Yellow LED
Alarm Indicator	Red / yellow LED
LR Sensor Failure Indicator	Yelow LED
LT Sensor Failure Indicator	Red LED
Signal Level Indicator	Green LED
Sensor Monitor LED Drive	Green LED on the receiver: ‘Power ON’ Yellow LED on the transmitter: PAB output activated
Hysteresis	Approx. 35 %
Operation Frequency, Relay	Short range: 17 Hz Long range: 9 Hz
Delay Time ton / toff	0 – 10 sec, adjustable
Housing Material	Polyamide

Environmental Data

Operation Temperature	– 10 to +50 °C
Storage Temperature	– 40 to +80 °C
Sealing Class	IP 40

Technical Drawings

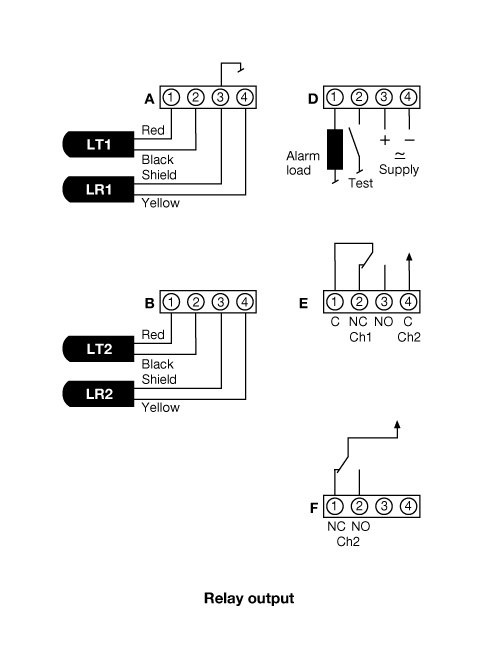

• Wiring Diagram

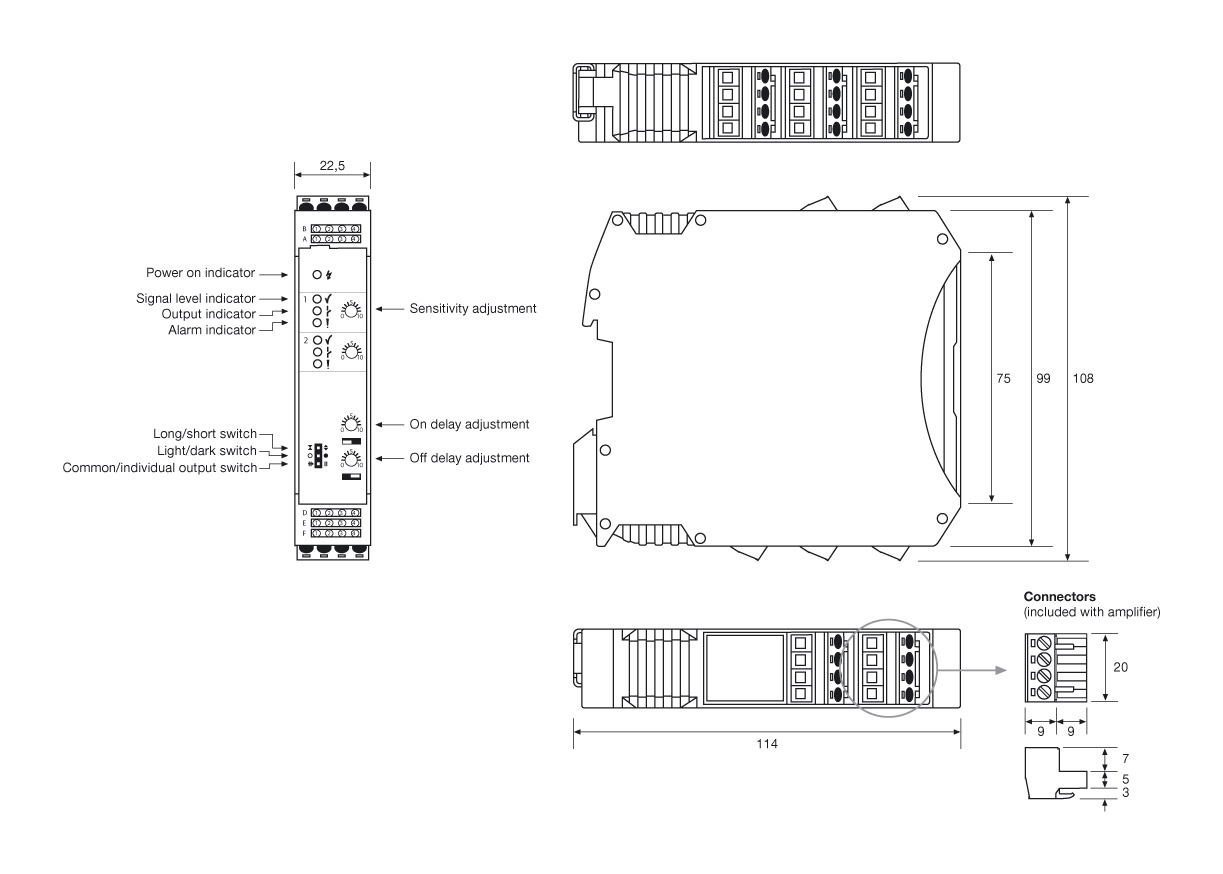

• Dimensions
