PAB 10

Photoelectric Amplifier Bus SERIES

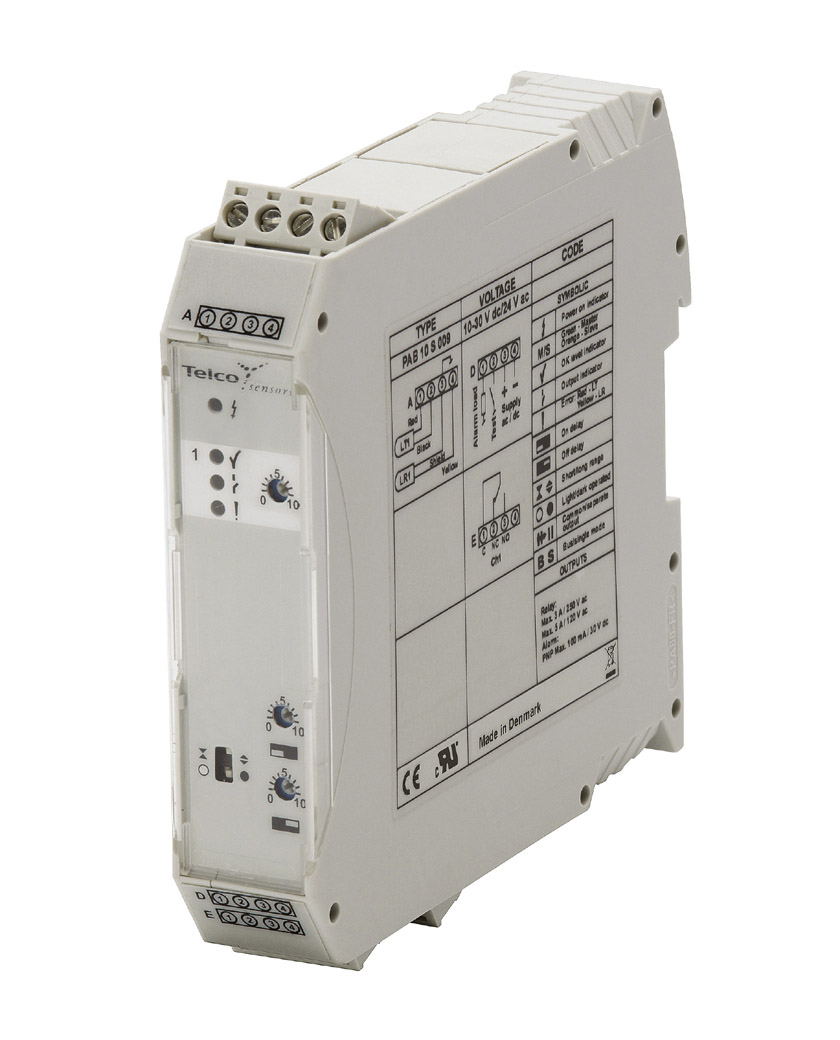

PAB 10 S 209

Photoelectric Amplifier Bus

Remote Photoelectric Systems

PAB 10 S 209

  • CE
  • CRU

Product Data

Function Amplifier
Supply Voltage 10 – 30 V dc / 24 V ac
Number of Channels 1
Sensing Range 70 m
Sensitivity Adjustment Manual
Output PNP
Timer On/Off Delay
Housing Removable screw terminals

Technical Data

Supply Voltage 10 - 30 V dc or 24 V ac
Voltage Tolerance +/- 10 %
Current Consumption Max. 1,7 W
Response Time ton / toff, Transistor Short range: 12 ms / 12 ms
Long range: 30 ms / 30 ms
Output, Transistor 30 V dc / 100 mA
Alarm Output, Transistor PNP - 30 V dc / 100 mA
Test Input Yes
Power On Indicator Green LED
Output Indicator Yellow LED
Alarm Indicator Red / yellow LED
LR Sensor Failure Indicator Yelow LED
LT Sensor Failure Indicator Red LED
Signal Level Indicator Green LED
Sensor Monitor LED Drive Green LED on the receiver: ‘Power ON’ Yellow LED on the transmitter: PAB output activated
Hysteresis Approx. 35 %
Operation Frequency, Transistor Short range: 42 Hz
Long range: 17 Hz
Delay Time ton / toff 0 – 10 sec, adjustable
Housing Material Polyamide

Environmental Data

Operation Temperature – 10 to +50 °C
Storage Temperature – 40 to +80 °C
Sealing Class IP 40

Technical Drawings

  • Wiring Diagram Wiring Diagram

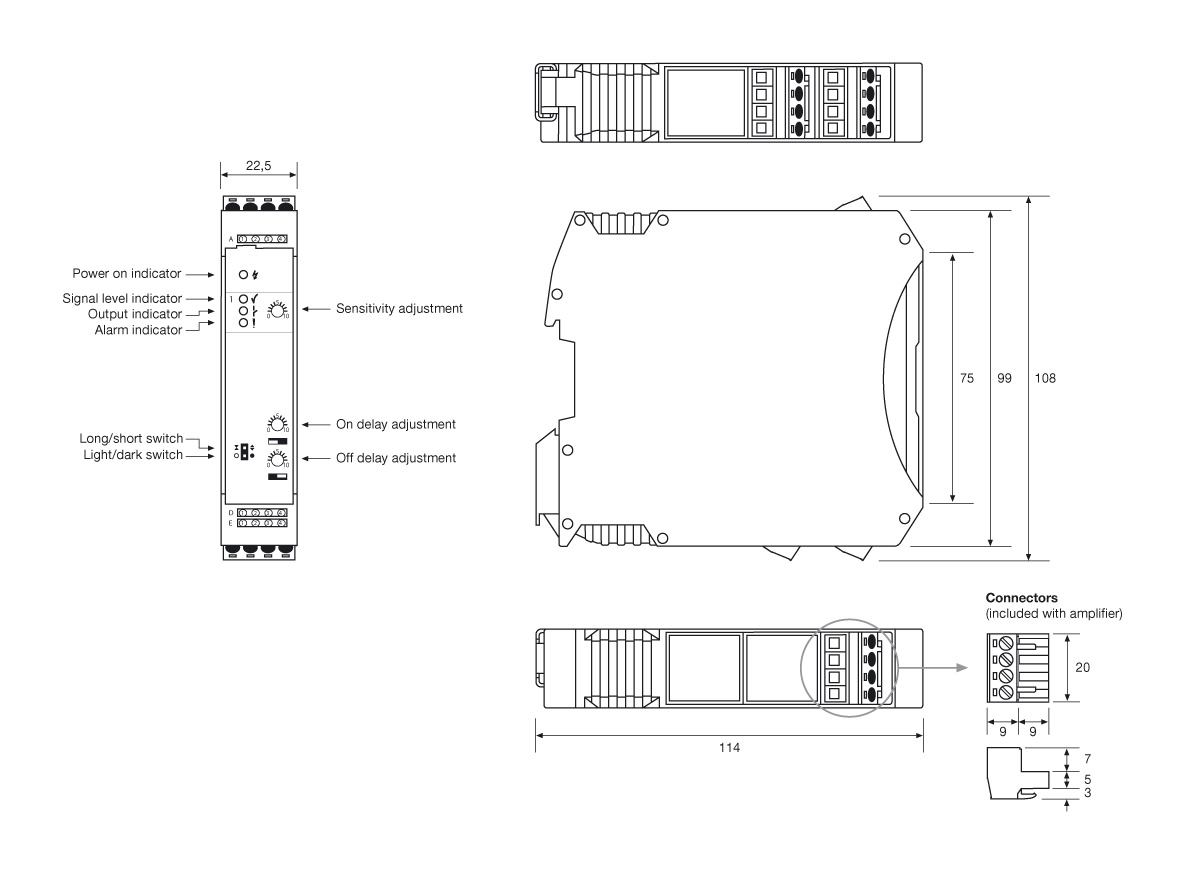

  • Dimensions Dimensions
