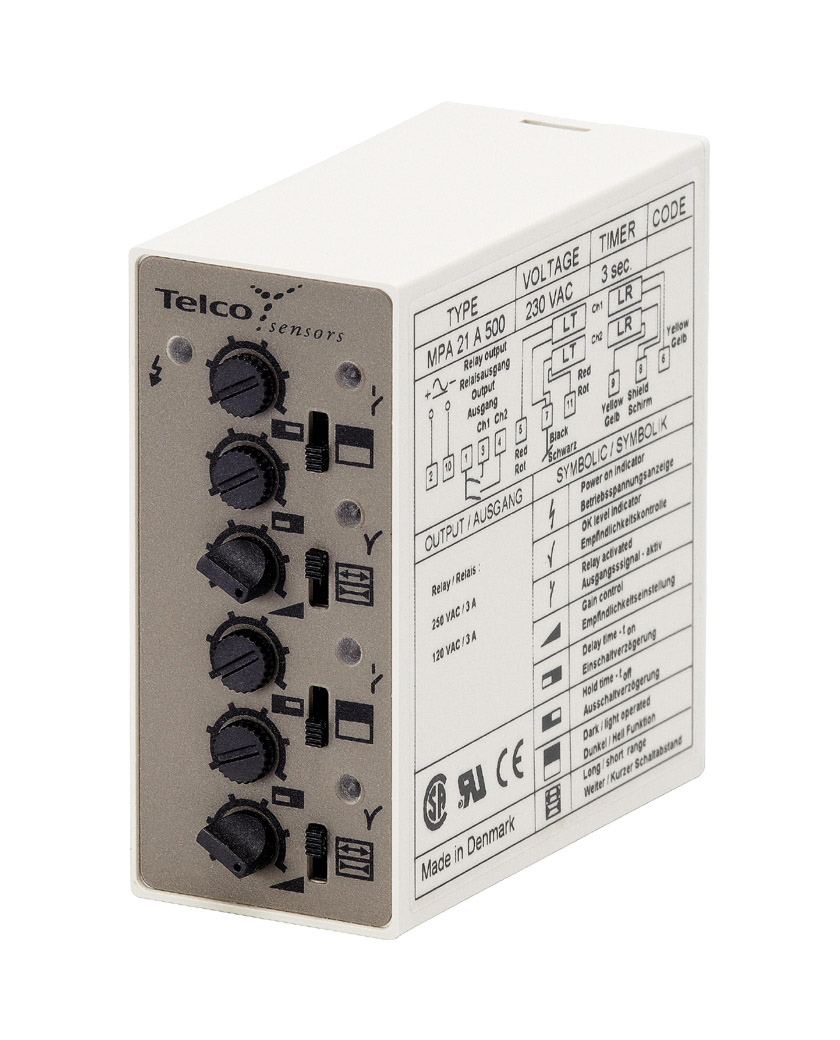

MPA 21

Product Data

Function	Amplifier
Supply Voltage	230 V ac
Number of Channels	2
Sensing Range	45 m
Sensitivity Adjustment	Manual
Output	2 individual relays
Timer	On/Off Delay
Housing	11-pole DIN socket

Technical Data

Supply Voltage	230 V ac
Voltage Tolerance	+/– 15 %
Current Consumption	Max. 3 VA
Response Time ton / toff, Relay	55 ms / 55 ms
Output, Relay	1 open/ 1 close, 250 V ac/3 A, 120 V ac/5 A
Power On Indicator	Green LED
Output Indicator	Red LED
Signal Level Indicator	Green LED
Hysteresis	Approx. 35 %
Operation Frequency, Relay	9 Hz
Delay Time ton / toff	0 – 3 sec, adjustable
Housing Material	Noryl

Environmental Data

Operation Temperature	– 10 to +50 °C
Storage Temperature	– 40 to +80 °C
Sealing Class	IP 40

Technical Drawings

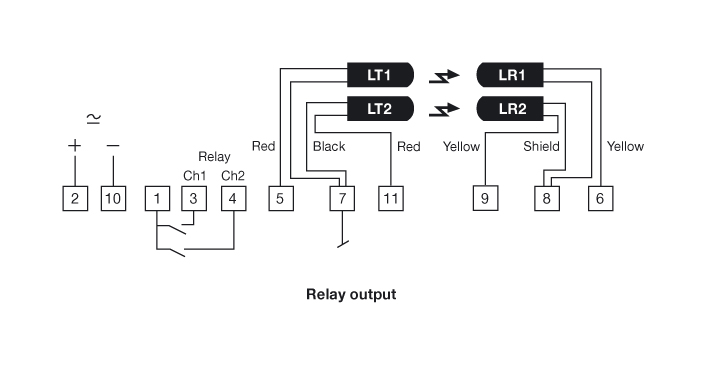

• Wiring Diagram

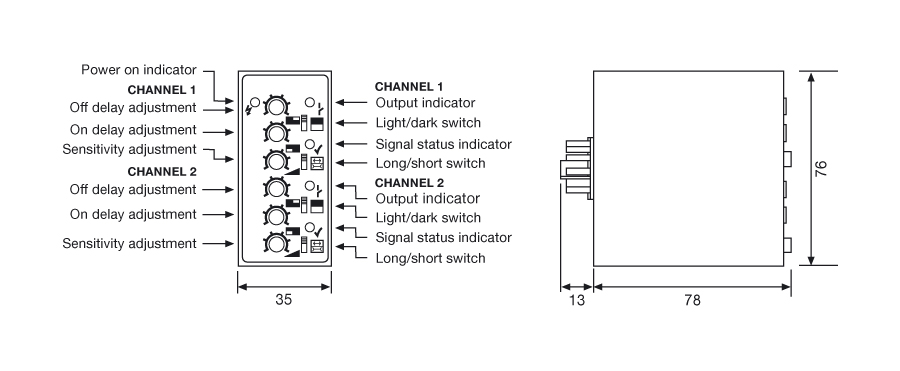

• Dimensions
