Product Data

• USB-RS485 CPT-22 converter for SS 02 series
• USB 2.0 full speed device
• Virtual comport drivers
• Windows XP, 7, 8, 10 and 11 compatible
• Modbus capable

Comport Specifications

Baudrates	300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 14400, 19200, 38400, 57600, 115200, 230400, 460800, 921600 Bps
Starbits	1
Databits	7, 8
Parity	Non
StopBits	1, 2
Flowcontrol	Autoswitching
Buffers	128 bytes and 256 bytes Tx fo

RS485 Data

Nodes	256
ESD protection	+/- 15 kV
Termination resistor	No
Failsafe	Yes

Hardware Details

Connection	3 m screened cable
Visual indicators	2 (Tx and Rx)
Speed	Up to 1 Mbps
Isolation voltage	2,500 Vrms / 1 minute
Power	Powered from the PCs USB port
Operating Temperature	0 to +70 ºC

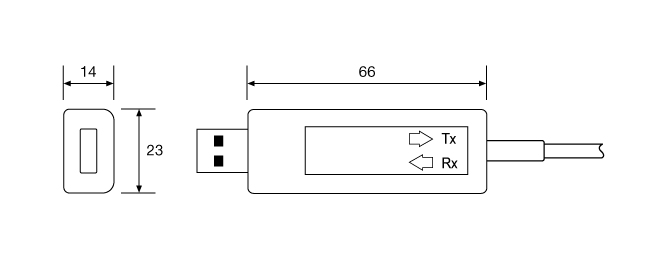

Technical Drawings

• Dimensions
