Product Data

• USB IO-Link Master 02 tool to connect to Telco IO-Link sensor devices
• USB 2.0 port for PC connection
• M12, 5-pin plug interface to sensor device
• Optional power pack
• Four status LED indicators

Technical Data

Reverse Polarity Protected	Yes
Power On Indicator	Yellow LED
USB port	USB 2.0 (Mini USB B)
Power consumption from USB	<= 500 mA
Power supply of IO-Link Device from USB	24 V / 80 mA
External power supply	24 V / 1 A
IO-Link communication	IO-Link Specification V1.1
IO-Link port class	A
CH1 (C/Q) indicator	Green / Yellow LED CH1 Green: IO-Link Mode Yellow: SIO Mode
CH2 (DI/DO) indicator	Yellow LED
Error indicator	Red LED

Environmental Data

Operation Temperature	0 to +45 ºC
Storage Temperature	–40 to +80 °C
Sealing Class	IP 20

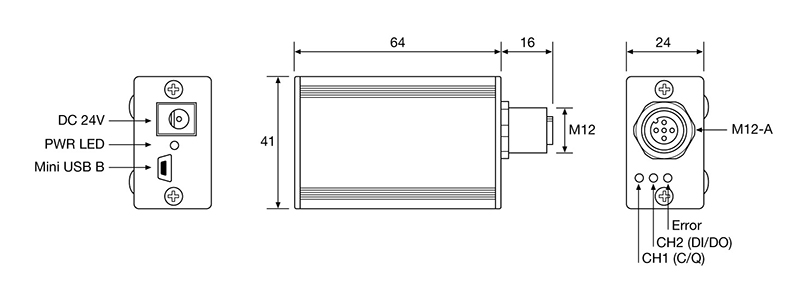

Technical Drawings

• Dimensions
