Product Data

• Active Ø: 4,5 mm
• Adaptor Type: Bifurcated
• Sensing Mode: Diffuse Proximity
• Range: 0,6 m
• Cable Length: 1 m
• Sleeve Material: Stainless Steel (AISI 304 / 1.4301)

Technical Data

Cover	Stainless Steel (AISI 304 / 1.4301)
Sheath Material	Stainless Steel (AISI 304 / 1.4301)
Sealing	IP 67
Strand Diameter	50 µm
Opening Angle	67º
Adaptor Material	Stainless Steel (AISI 304 / 1.4301)
Bending Radius	>5 x cover diameter
Temperature, Operation	-40 to +300 ºC
Range	0,6 m (Range specified using PA 11 amplifier and Remote Sensor Series 100)

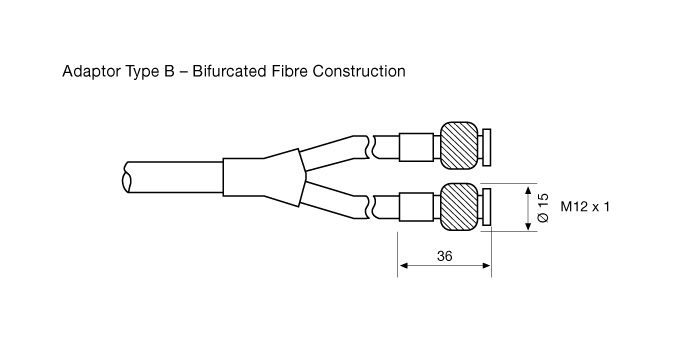

Adaptor Type (Refer to dimensions)	B - Bifurcated Fibre Construction

Technical Drawings

• Dimensions
