LLM 1374

Glass Fibre Optics

Accessories

LLM 1374

Product Data

  • Active Ø: 0,3 X 20 mm
  • Adaptor Type: Individual
  • Sensing Mode: Thru Beam
  • Range: 1,4 m
  • Cable Length: 0,6 m
  • Sleeve Material: Stainless Steel (AISI 304 / 1.4301)

Technical Data

Cover Stainless Steel (AISI 304 / 1.4301)
Sheath Material Stainless Steel (AISI 304 / 1.4301)
Sealing IP 67
Strand Diameter 50 µm
Opening Angle 67º
Adaptor Material Stainless Steel (AISI 304 / 1.4301)
Bending Radius >5 x cover diameter
Temperature, Operation -40 to +300 ºC
Range 1,4 m (Range specified using PA 11 amplifier and Remote Sensor Series 100)

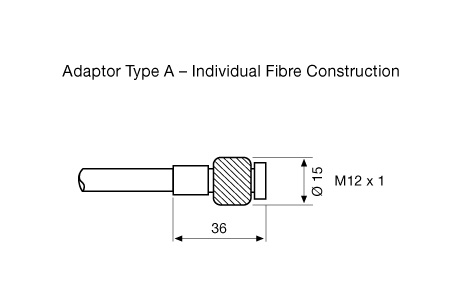

Adaptor Type (Refer to dimensions) A - Individual Fibre Construction

Technical Drawings

  • Dimensions Dimensions
