SG 10 M/S

Product Data

The SG 10 M/S light curtain system consists of a self-contained transmitter, SGT and receiver, SGR, which are to be positioned opposite of each other. The detectors are housed in a water-resistant, aluminium profile available in a slim line design (12 x 30 mm).

The SGR is supplied with a 12-36 V dc / 24 V ac power supply with a 5 wire, solidstate relay output, in light operated function. The system offers a Master set and Slave set which can be wire connected together to form a system of two light curtain sets which are synchronised and multiplexed, ensuring that optical cross-talk between the two sets is prevented. The Master set can also operate as a stand alone system. Transmitter and receiver light curtains are electrically synchronised.

The advanced automatic signal-tracking (AST) feature ensures that no onsite set up or adjustments are required. The signal level of each individual channel is adjusted automatically, which compensates for misalignment and contamination during operation.

Specialised signal processing technology, designed for outdoor environments, reduces the risk of false detections of water, rain or snow that may pass between the light curtains during operation.

Both the transmitter and receiver units are protected against reverse polarity of power supplies, control input and output signals. The output is also protected against short circuit and inductive loads.
All products include a 3-year worldwide warranty.

Product Data

Operation Mode	Thru Beam
Function	Transmitter-Master
Supply Voltage	12 - 36 V dc / 24 V ac
Active Height	1800 mm
Number of Channels	40
Sensing Range	10 m
Housing	12 x 30 mm
Length	2000 mm
Connection	5 m cable

Technical Data

Supply Voltage	12 – 36 V dc / 24 V ac
Reverse Polarity Protected	Yes
Current Consumption	Max. 100 mA
Spacing between bottom & Ch1	25 mm
Distance, Beams Pinch Point	23 mm
Channel Spacing	46 mm
Test Input	Yes
Power On Indicator	Green LED
Light Source	Infrared (880 nm)
Profile Dimensions (w x d)	Slim Line (C), 12 x 30 mm
Housing Material, Front Lens	Polycarbonate
Housing Material, Profile	Aluminium (black anodised)
Cable	4 x 0,20 mm²
Cable Sleeve	PVC Ø 4,9 mm

Environmental Data

Operation Temperature	–20 to +65 °C
Storage Temperature	–40 to +80 °C
Sealing Class	IP 67
Light Immunity 5˚	> 100 000 lux

Technical Drawings

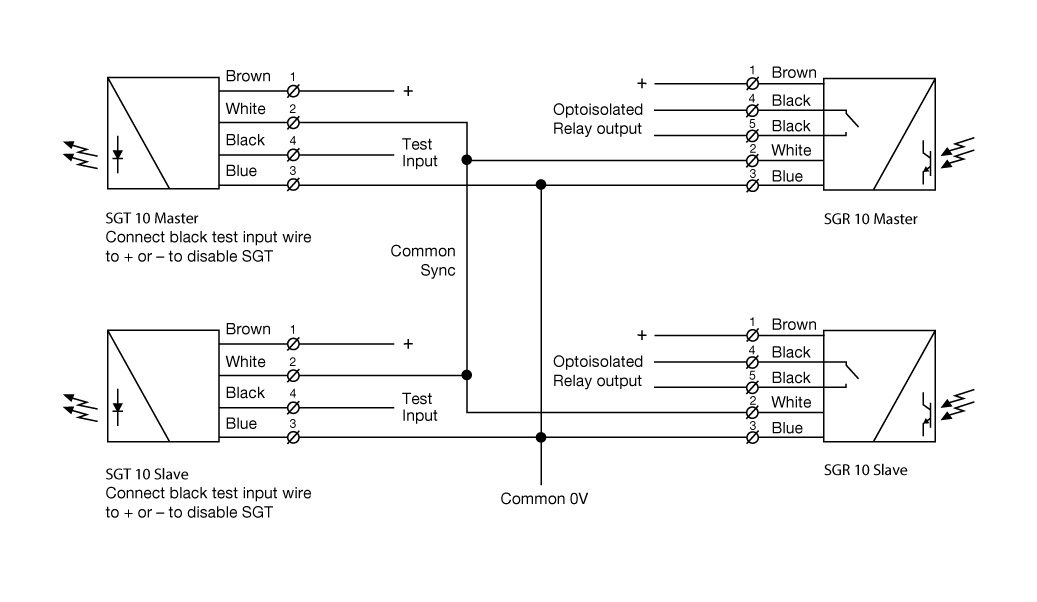

• Wiring Diagram
• Parallel Displacement

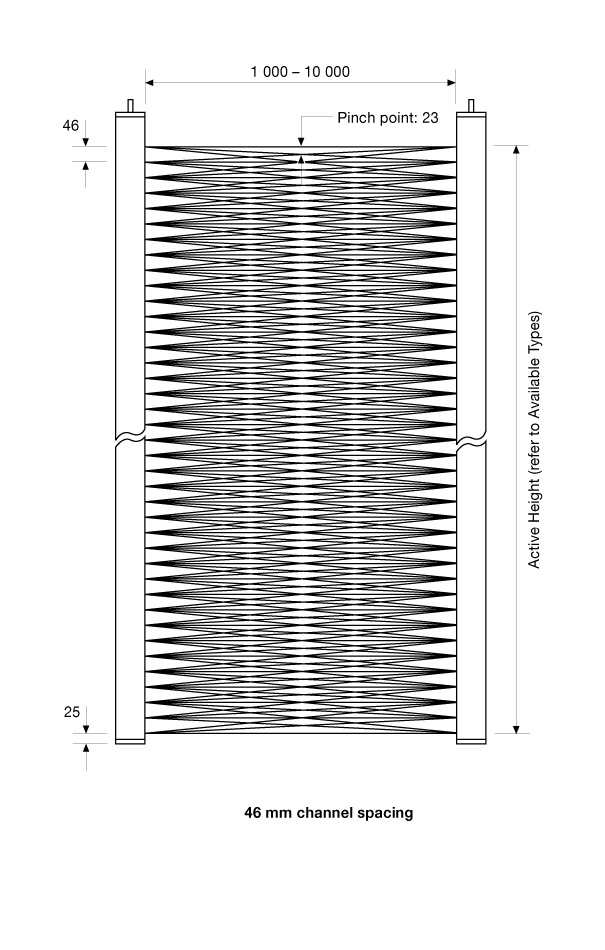

• Beam Patterns
• Dimensions
