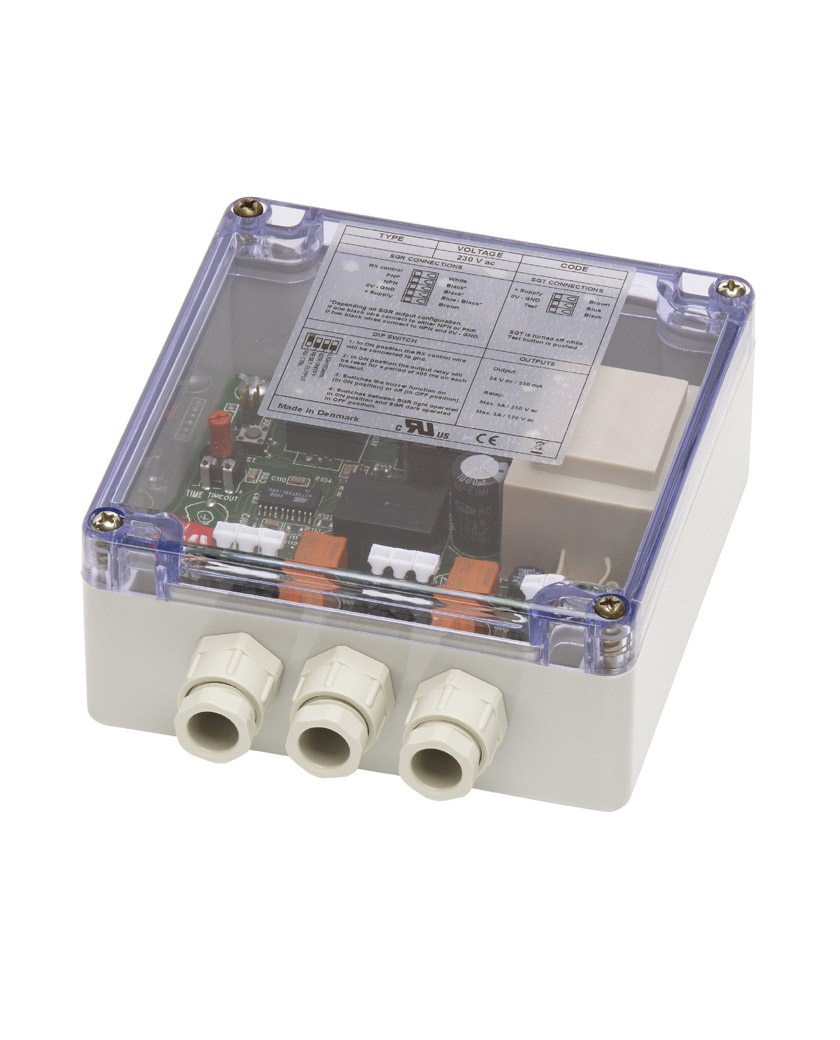

SGC 1

Product Data

The SGC 1 is intended to be used in conjunction with the SG 1, SG 2, SG 10 or SG 14 self-contained light curtain series, where a DC supply voltage is not available and where a relay output is required. The controller series is supplied with a fixed 24 V dc output voltage. Light or dark function and receiver control function is switch selectable.

The series is available with a nudging time-out feature which allows a separate relay output to activate after a pre-set delay time after the signal output has been permanently activated. Nudging time-out delay is potentiometer adjustable from 3 to 60 seconds. The controller is available with a buzzer which may be activated to indicate a nudging time-out output.

The SGC 1 offers a test button, which may be used for disabling the transmitting power temporarily for test purposes.
All products include a 3-year worldwide warranty.

Product Data

Function	Power Supply
Supply Voltage	230 V ac
Output	Relay
Housing	56 x 120 x 122
Features	Nudging time-out Function

Technical Data

Supply Voltage	230 V ac
Voltage Tolerance	+/- 10 %
Current Consumption	Max. 250 mA
Supply Output Voltage	24 V dc
Nudging Relay Output	1 open/1 close, 250 V ac/3A, 120 V ac/5A
Supply Output Current	150 mA
Relay Output	1 open/1 close, 250 V ac/3A, 120 V ac/5A
Buzzer	Yes
Test Input	Test push button
Power On Indicator	Green LED
Output Indicator	Yellow LED
Nudging Time-out Indicator	Yellow LED
Housing Material	ABS

Environmental Data

Vibration	10 – 55 Hz, 1,5 mm
Shock	30 g
Operation Temperature	–20 to +65 °C
Storage Temperature	–40 to +80 °C
Sealing Class	IP 41

Technical Drawings

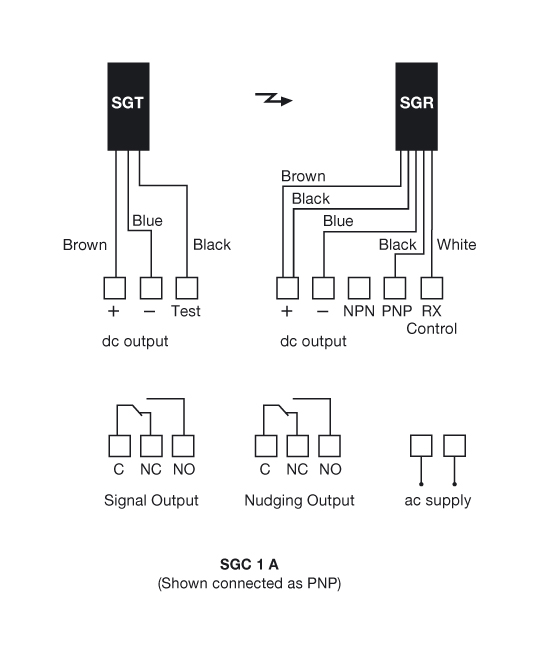

• Wiring Diagram

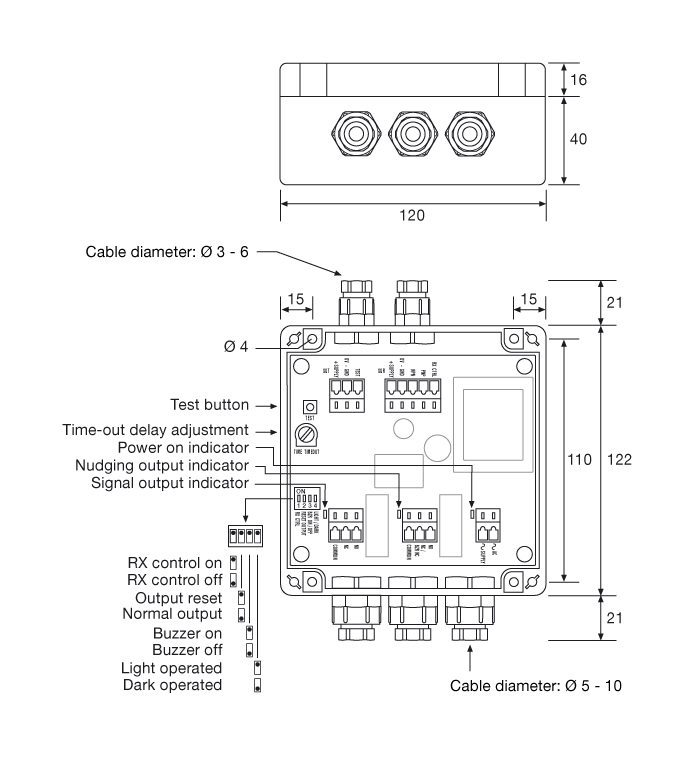

• Dimensions
