OFS

Product Data

The OFS series consists of self-contained optical fork sensors that are housed in a durable, U-shaped aluminium housing which operates in thru-beam mode, available with infrared (OFS), visible red light (OFSR) or high power infrared (OFSH). The series is available with a wide variety of fork opening widths, ranging from 10 mm to 220 mm.

The complete series is available as a 3 wire, NPN or PNP transistor output with a 10-35 V dc supply voltage. All models offer sensitivity adjustment via integral potentiometer and are available with switch selectable light or dark function. The complete series offers a high switching frequency of up to 5000 Hz.

The series is protected against reverse polarity of power supplies and output signals. The output is protected against short circuit and inductive loads.
All products include a 3-year worldwide warranty.

Product Data

Operation Mode	Fork Sensors
Function	Fork Sensor
Supply Voltage	10 - 35 V dc
Light Source	Infrared
Control Feature	Sensitivity pot.
Output	NPN / PNP
Output Status	N.C. / N.O.
Fork Opening Width	10 mm
Fork Opening Depth	17 mm

Technical Data

Supply Voltage	10-35 V dc
Reverse Polarity Protected	Yes
Short Circuit Protected	Yes
Current Consumption	Max. 35 mA
Max. Output Load	200 mA
Response Time ton / toff	0,2 ms / 0,2 ms
Output Indicator	Yellow LED
Hysteresis	< 0,2 mm
Light Source	Infrared (880 nm)
Resolution	0,4 mm
Operation Frequency	2500 Hz
Housing Material, Front Lens	Glass
Housing Material, Fork Housing	Aluminium (black anodised)

Environmental Data

Vibration	10 - 55 Hz, 0,5 mm
Shock	10 g
Operation Temperature	– 20 to +60 °C
Storage Temperature	– 40 to +80 °C
Sealing Class	IP 67
Light Immunity 15˚	> 50 000 lux

Technical Drawings

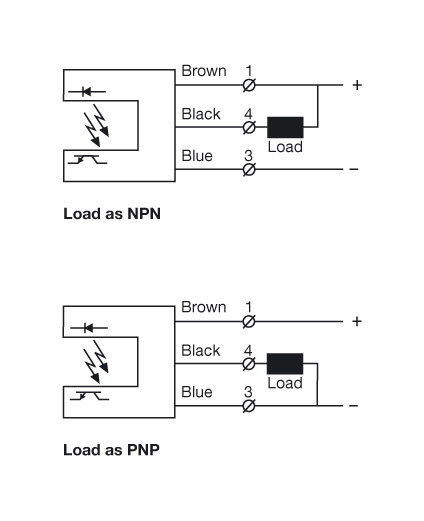

• Wiring Diagram
• Connections
• Dimensions
