CAB KV 8812 PVC-GY S 10

Cables for Light Curtains

Accessories

CAB KV 8812 PVC-GY S 10

Product Data

  • Connector: M12 x1
  • Locking: Screw
  • Socket Design: Straight
  • Pins: 8
  • Cable: 8 x 0,2 mm²
  • Sleeve Material: PVC (Grey)
  • Cable length: 10 m

Technical Data

Cable / Connector colour Grey
Cable Sleeve PVC Ø 5,9 mm
Rated current 1 A
Socket contacts Brass (gold plated)
Connector material (Lock nut) Zinc Alloy-Nickel Plated
Connector material (housing) PVC
Temperature -20 to +70 ºC
Sealing class IP 67
Note Available in other cable lengths upon request

Technical Drawings

  • Dimensions Dimensions

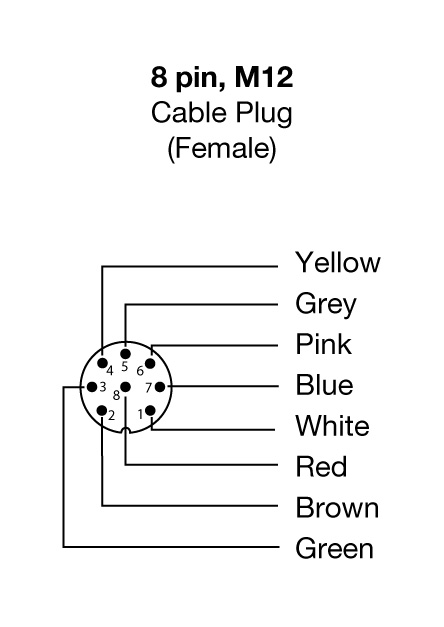

  • Connections Connections
