Product Data

• Connector: M12 x1
• Locking: Screw
• Socket Design: Straight
• Pins: 12
• Cable: 12 x 0,2 mm²
• Sleeve Material: PVC (Grey)
• Cable length: 10 m

Technical Data

Cable / Connector colour	Grey
Cable Sleeve	PVC Ø 5,9 mm
Rated current	1 A
Socket contacts	Brass (gold plated)
Connector material (Lock nut)	Zinc Alloy-Nickel Plated
Connector material (housing)	PVC
Temperature	-20 to +70 ºC
Sealing class	IP 67
Note	Available in other cable lengths upon request

Technical Drawings

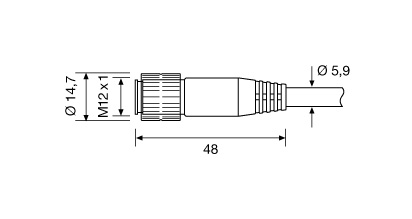

• Dimensions

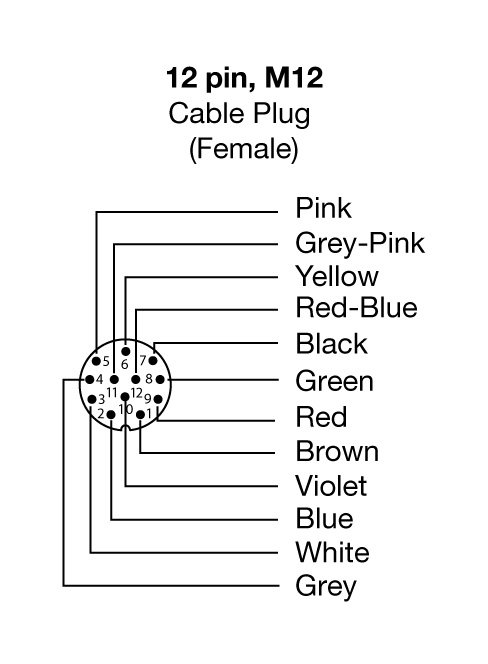

• Connections
