CAB KV 3308 PUR R 5

Cables for Sensors


CAB KV 3308 PUR R 5

Product Data

  • Connector: M8 x1
  • Locking: Screw
  • Socket Design: Right Angle
  • Pins: 3
  • Cable: 3 x 0,25 mm²
  • Sleeve Material: PUR
  • Cable length: 5 m

Technical Data

Rated voltage 60 V
Rated impulse voltage 800 V
Rated current 4 A
Socket contacts Bronze (gold plated)
Connector material (Lock nut) Nickel-Plated Brass
Connector material (housing) PUR
Temperature -25 to +70 ºC
Sealing class IP 67
Note Available in other cable lengths upon request

Technical Drawings

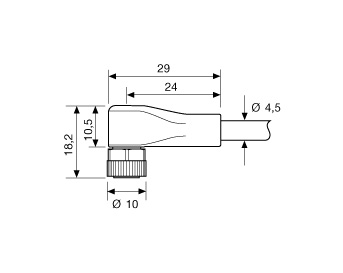

  • Dimensions Dimensions

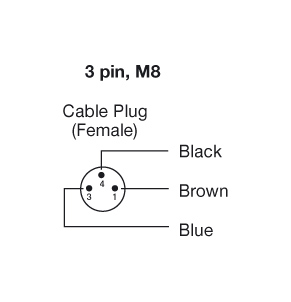

  • Connections Connections
