Remote Sensors
Remote Sensors SERIES

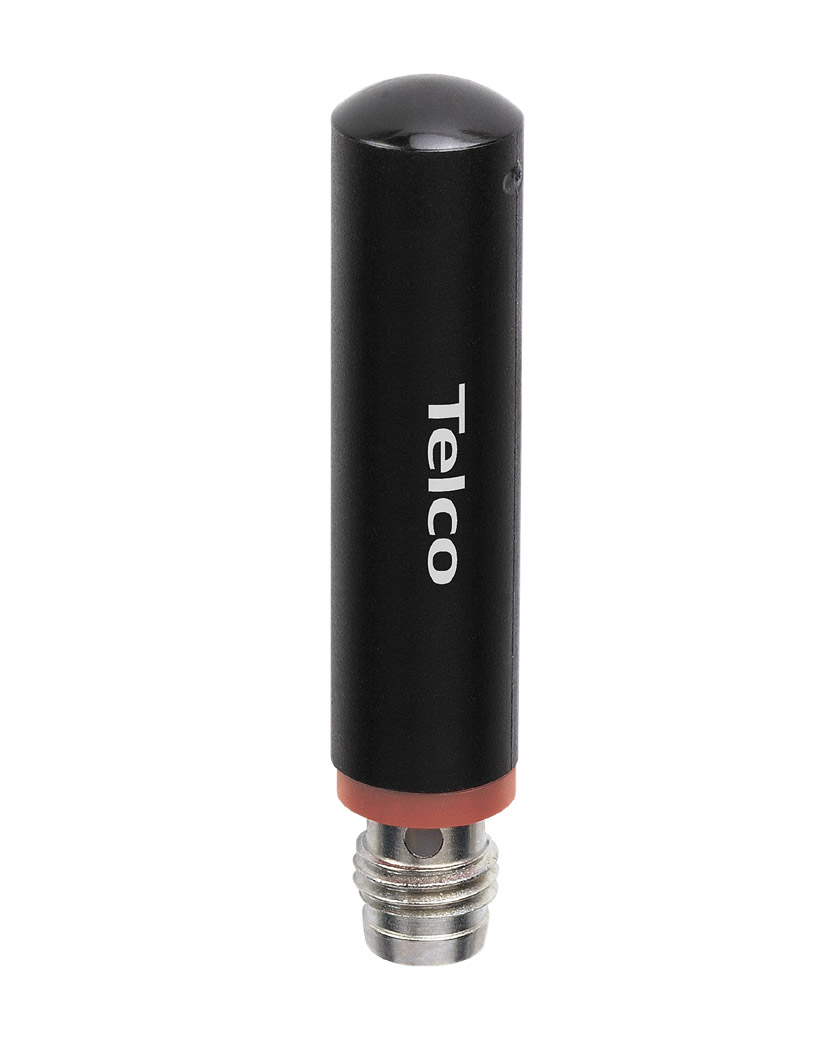

LT 100L AP38 T3
Remote Sensors
Remote Photoelectric Systems
Compatible Receivers
-

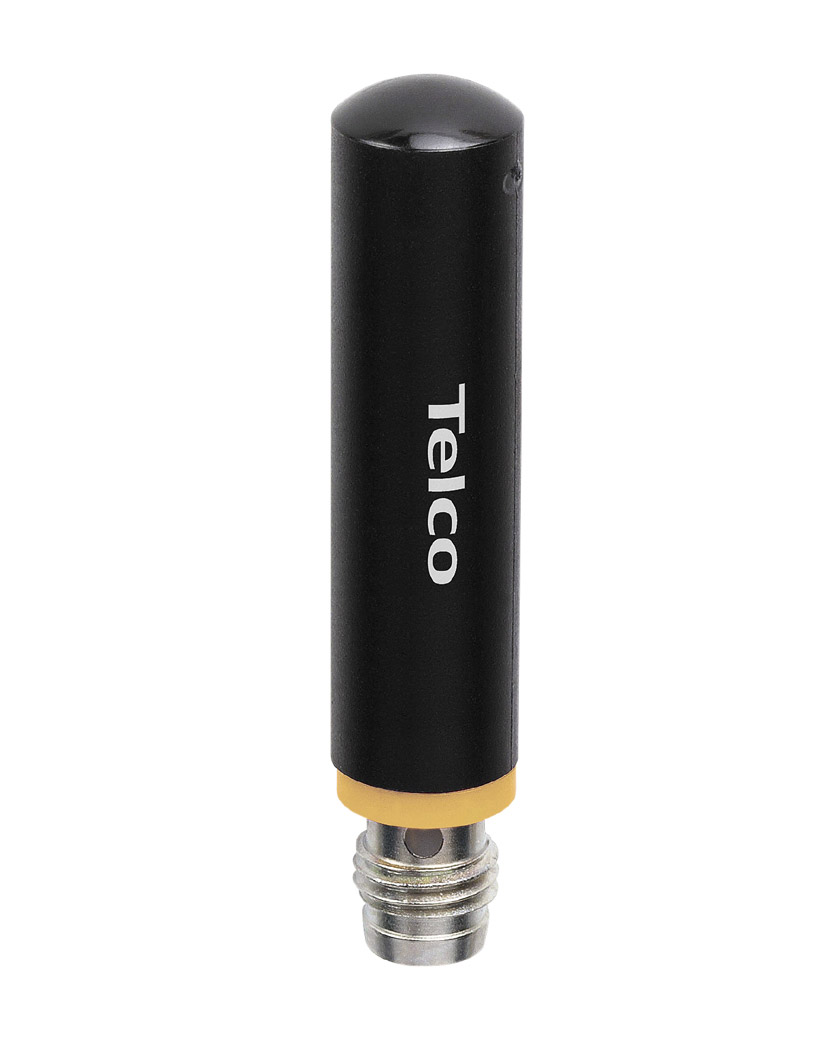

LR 100L AP38 T3
Function Receiver Sensing Range Up to 18 m Indicators Yes Optical Angle +/- 7° (opening) Housing Ø10 Housing Material Plastic Connection 3 pin, M8 plug
Product Data
| Function | Transmitter |
| Sensing Range | Up to 18 m |
| Indicators | Yes |
| Optical Angle | +/- 6° (emission) |
| Housing | Ø10 |
| Housing Material | Plastic |
| Connection | 3 pin, M8 plug |
Technical Data
| Transmitter Diode | Ga Al As, (880 nm) |
| Output Indicator | Yellow LED |
| Light Source | Infrared |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Polycarbonate |
Environmental Data
| Vibration | 10 – 55 Hz, 0,5 mm |
| Shock | 30 g |
| Operation Temperature | – 25 to +65 °C |
| Storage Temperature | – 40 to +80 °C |
| Sealing Class | IP 67 |
| Light Immunity 20˚ | > 80 000 lux |
Technical Drawings
-
Wiring Diagram
-
Connections
-
Parallel Displacement
-
Angular Displacement
-

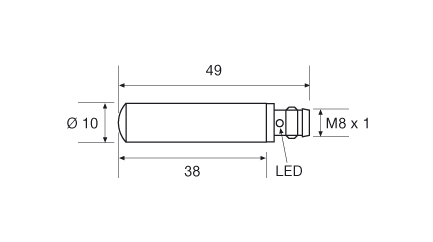

Dimensions
