Remote Sensors
Remote Sensors SERIES

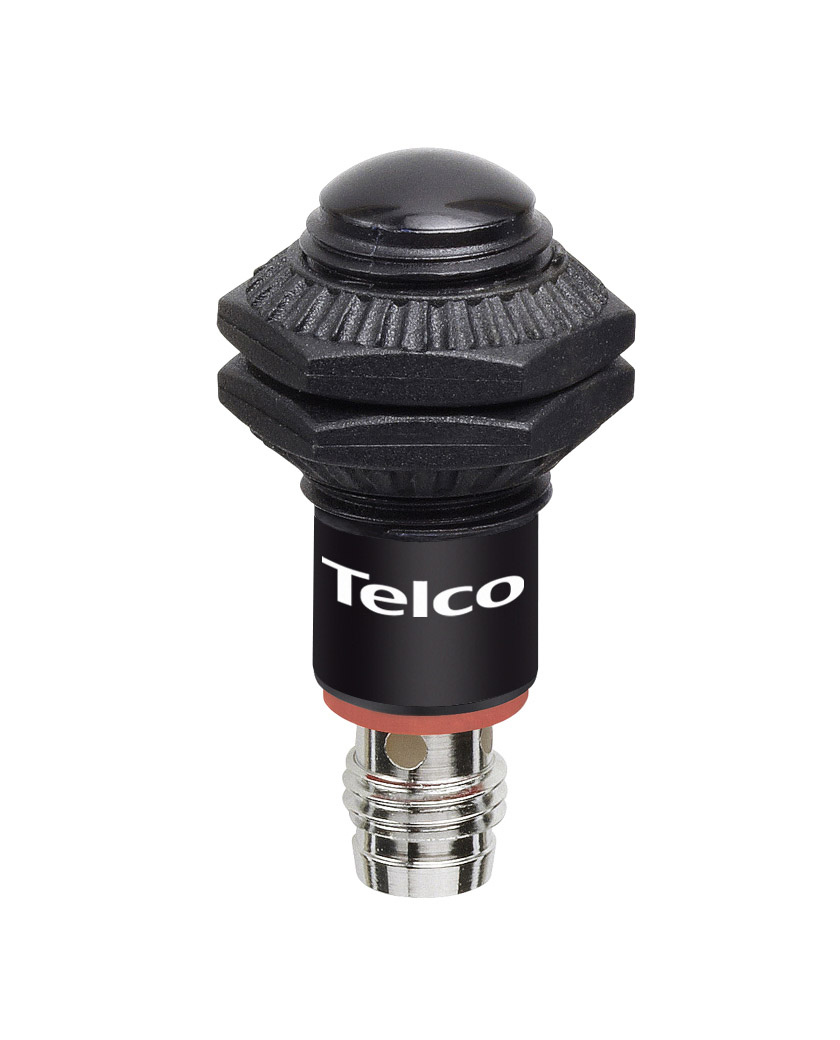

LR 101 TP25 T3
Remote Sensors
Remote Photoelectric Systems
Compatible Transmitters
-
LT 101 TP25 T3
Function Transmitter Sensing Range Up to 11 m Indicators None Optical Angle +/- 10° (emission) Housing M12 x 1 Housing Material Plastic Connection 3 pin, M8 plug
Product Data
| Function | Receiver |
| Sensing Range | Up to 11 m |
| Indicators | None |
| Optical Angle | +/- 6° (opening) |
| Housing | M12 x 1 |
| Housing Material | Plastic |
| Connection | 3 pin, M8 plug |
Technical Data
| Photo Transistor | Silicon NPN |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Polycarbonate |
Environmental Data
| Vibration | 10 – 55 Hz, 0,5 mm |
| Shock | 30 g |
| Operation Temperature | – 25 to +65 °C |
| Storage Temperature | – 40 to +80 °C |
| Sealing Class | IP 67 |
| Light Immunity 20˚ | > 50 000 lux |
Technical Drawings
-
Wiring Diagram
-
Connections
-

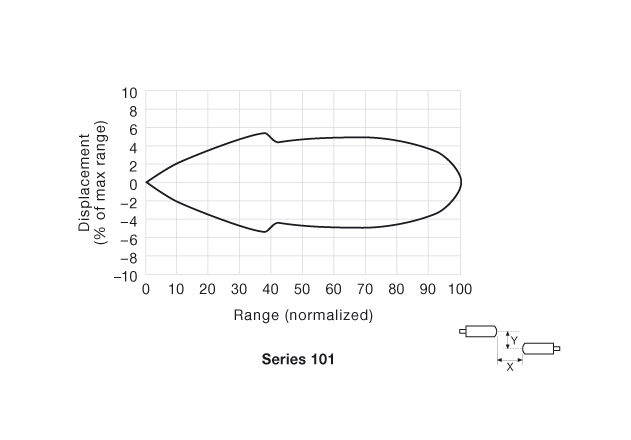

Parallel Displacement
-

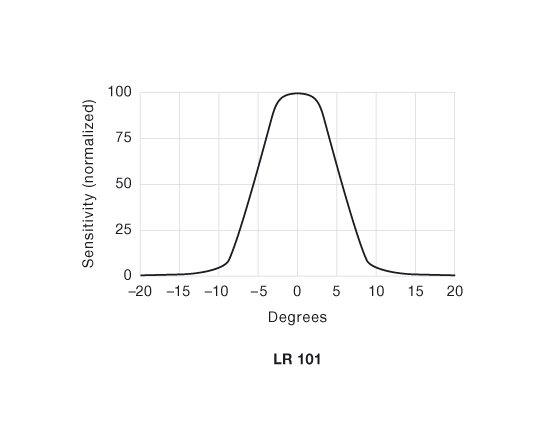

Angular Displacement
-

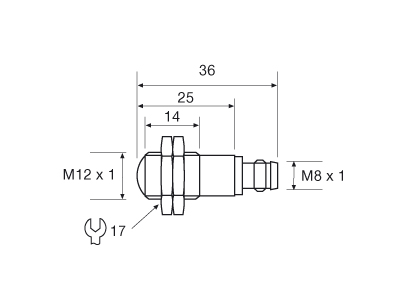

Dimensions
