PA 10

Product Data

Function	Amplifier
Supply Voltage	24 V dc
Sensing Range	60 m
Sensitivity Adjustment	Manual
Output	NPN/PNP
Housing	11-pole DIN socket

Technical Data

Supply Voltage	24 V dc
Voltage Tolerance	+/– 15 %
Current Consumption	Max. 3,2 VA
Response Time ton / toff, Transistor	40 ms / 40 ms
Output, Transistor	40 mA / 30 V dc
Power On Indicator	Green LED
Output Indicator	Red LED
Hysteresis	Approx. 40 %
Operation Frequency, Transistor	12 Hz
Housing Material	Noryl

Environmental Data

Operation Temperature	– 10 to +50 °C
Storage Temperature	– 40 to +80 °C
Sealing Class	IP 40

Technical Drawings

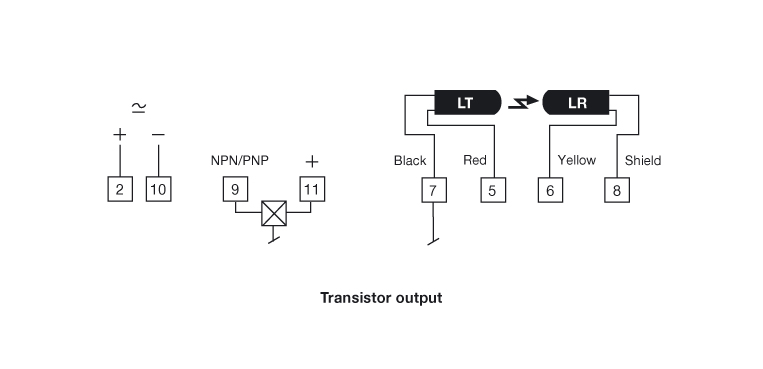

• Wiring Diagram
• Dimensions
