SM 3000
SpaceMaster™ SERIES

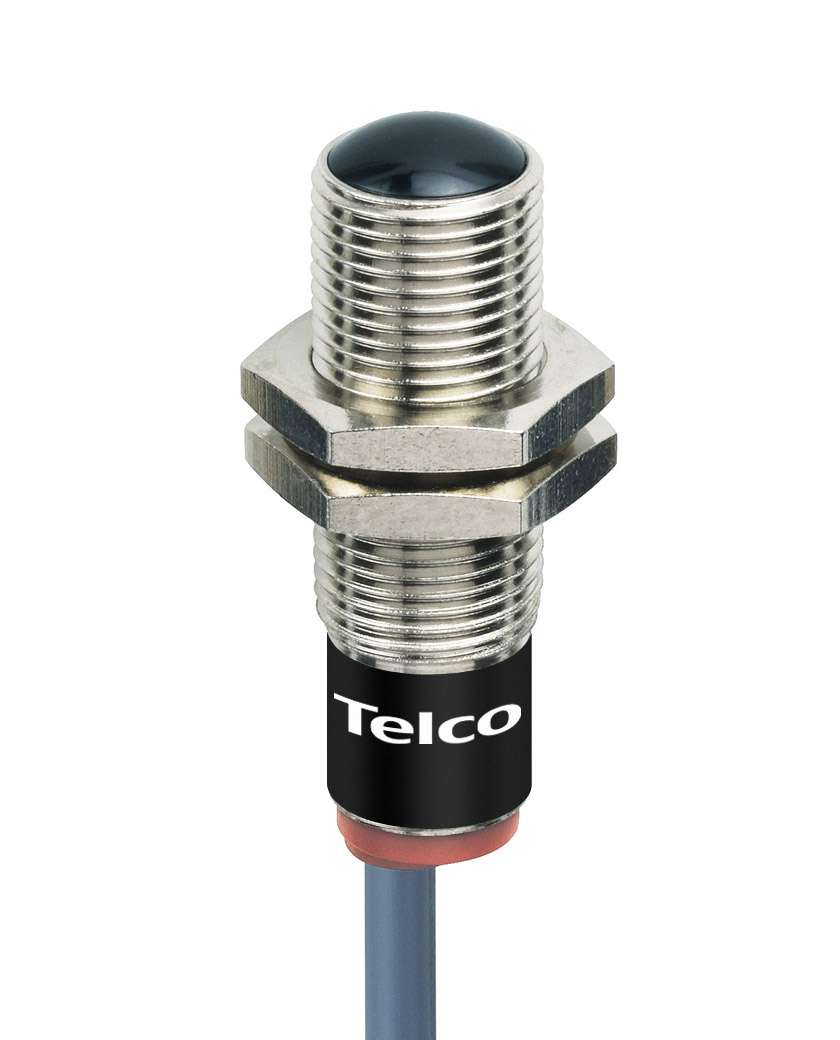

SMT 3000HC TB 5
Thru Beam
Photoelectric Sensors
Compatible Receivers
-
SMR 3315 TB 5
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 30 V dc Sensing Range 15 m Output PNP Output Status N.O. Housing M12 x 1 Housing Material Nickel Plated Brass Connection 5 m cable -
SMR 3015 TB 5
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 30 V dc Sensing Range 15 m Output NPN Output Status N.C. Housing M12 x 1 Housing Material Nickel Plated Brass Connection 5 m cable -
SMR 3115 TB 5
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 30 V dc Sensing Range 15 m Output NPN Output Status N.O. Housing M12 x 1 Housing Material Nickel Plated Brass Connection 5 m cable -
SMR 3215 TB 5
Operation Mode Thru Beam Function Receiver Supply Voltage 10 - 30 V dc Sensing Range 15 m Output PNP Output Status N.C. Housing M12 x 1 Housing Material Nickel Plated Brass Connection 5 m cable
Product Data
| Operation Mode | Thru Beam |
| Function | Transmitter |
| Supply Voltage | 10 - 30 V dc |
| Light Source | Infrared (880 nm) |
| Control Feature | Adjustable range and test input |
| Sensing Range | 15 m |
| Housing | M12 x 1 |
| Housing Material | Nickel Plated Brass |
| Connection | 5 m cable |
Technical Data
| Supply Voltage | 10 - 30 V dc |
| Voltage Ripple | 15 % |
| Reverse Polarity Protected | Yes |
| Current Consumption | Max. 30 mA |
| Test Input | Yes |
| Control Input | Adjustable range |
| Power On Indicator | Green LED |
| Light Source | Infrared (880 nm) |
| Emission Angle | +/- 12° |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Nickel Plated Brass |
| Cable | 3 x 0,14 mm² |
| Cable Sleeve | PVC Ø 3,4 mm |
Environmental Data
| Vibration | 10 - 55 Hz, 0,5 mm |
| Shock | 30 g |
| Operation Temperature | -20 to +50 °C |
| Storage Temperature | -40 to +80 °C |
| Sealing Class | IP 67 |
Technical Drawings
-
Wiring Diagram
-
Parallel Displacement
-
Angular Displacement
-
Dimensions
