SP 2000

SpacePak™ SERIES


SPBS 2601 J

Background Suppression

Photoelectric Sensors

SPBS 2601 J

Background Suppression

  • CE

Product Data

Operation Mode Background Suppression
Function Both
Supply Voltage 10 - 30 V dc
Light Source Infrared (880 nm)
Control Feature Range potentiometer and light/dark switch
Sensing Range 1,5 m
Output NPN/PNP
Output Status N.C./N.O.
Housing 17 x 50 x 50
Housing Material Plastic
Connection 4 pin, M12 plug

Technical Data

Supply Voltage 10 – 30 V dc
Voltage Ripple +/– 15 %
Reverse Polarity Protected Yes
Short Circuit Protected Yes
Current Consumption < 65 mA
Max. Operation Frequency 250 Hz
Response Time ton / toff 2 ms / 2 ms
Output, Relay 1 open / 1 close, 240 V ac / 2 A
Output, Transistor 200 mA / 30 V dc
Power On Indicator Green LED
Output Indicator Yellow LED
Signal Status Indicator Red LED
Hysteresis 3 – 10 %
Light Source Infrared (880 nm)
Opening Angle +/– 5°
Emission Angle +/– 1,5°
Housing Material, Front Lens Polycarbonate
Housing Material, Sensor Housing Polycarbonate / ABS
Cable 4 x 0,20 mm2
Cable Sleeve PVC Ø 4,9 mm

Environmental Data

Vibration 10 – 55 Hz, 0.5 mm
Shock 30 g
Operation Temperature –20 to +55 °C
Storage Temperature –40 to +80 °C
Sealing Class IP 67
Light Immunity 15˚ 25 000 lux

Technical Drawings

  • Wiring Diagram Wiring Diagram
  • Connections Connections

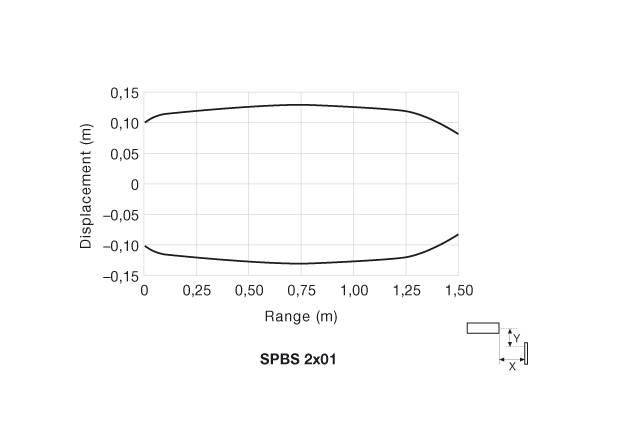

  • Parallel Displacement Parallel Displacement
  • Dimensions Dimensions
