PA 15

Product Data

Function	Amplifier
Supply Voltage	15 – 30 V dc / 24 V ac
Sensing Range	70 m
Sensitivity Adjustment	Manual
Output	NPN
Timer	On/Off Delay
Housing	Removable screw terminals

Technical Data

Supply Voltage	15 – 30 V dc / 24 V ac
Voltage Tolerance	+/– 10 %
Current Consumption	Max. 2,5 W
Response Time ton / toff, Transistor	25 ms / 25 ms
Output, Transistor	30 V dc / 60 mA
Alarm Output, Transistor	12-30 V dc / 10 mA
Test Input	Yes
Power On Indicator	Green LED
Output Indicator	Yellow LED
LR Sensor Failure Indicator	Red LED
LT Sensor Failure Indicator	Red LED
Signal Level Indicator	Green LED
Sensor Monitor LED Drive	Green LED on the receiver: ‘Power ON’ Yellow LED on the transmitter: PA 15 output activated
Hysteresis	Approx. 45 %
Operation Frequency, Transistor	20 Hz
Delay Time ton / toff	0 – 10 sec, adjustable
Housing Material	Polyamide

Environmental Data

Operation Temperature	– 10 to +50 °C
Storage Temperature	– 40 to +80 °C
Sealing Class	IP 40

Technical Drawings

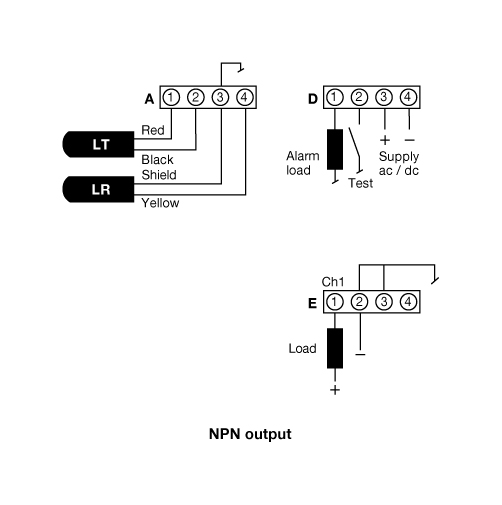

• Wiring Diagram
• Dimensions
