SM 7000-IO

Product Data

Operation Mode	Diffuse Proximity
Function	Both
Supply Voltage	10 - 30 V dc
Control Feature	Sensitivity pot. and light/dark switch
Sensing Range	1 m
Output	PNP (IO-Link)
Output Status	N.C./N.O.
Housing	M18 x 1
Housing Material	Stainless Steel
Connection	4 pin, M8 plug
Features	IO-Link communication port

Technical Data

Supply Voltage	10 - 30 V dc
Voltage Ripple	15 %
Reverse Polarity Protected	Yes
Short Circuit Protected	Yes
Current Consumption	30 mA
Max. Output Load	200 mA / 30 V dc
Max. Residual Voltage	2 V
Max. Operation Frequency	250 Hz
Response Time ton / toff	2 ms / 2 ms
Power On Indicator	Green LED
Output Indicator	Yellow LED
Hysteresis	Approx. 3 - 10 %
Opening Angle	+/- 4°
Housing Material, Front Lens	Polycarbonate
Housing Material, Sensor Housing	Stainless Steel (AISI 316 / 1.4401)

Environmental Data

Vibration	10 - 55 Hz, 0,5 mm
Shock	30 g
Operation Temperature	-20 to +60 °C
Storage Temperature	-40 to +80 °C
Sealing Class	IP 67
Light Immunity 5˚	40 000 lux

Technical Drawings

• Wiring Diagram
• Connections

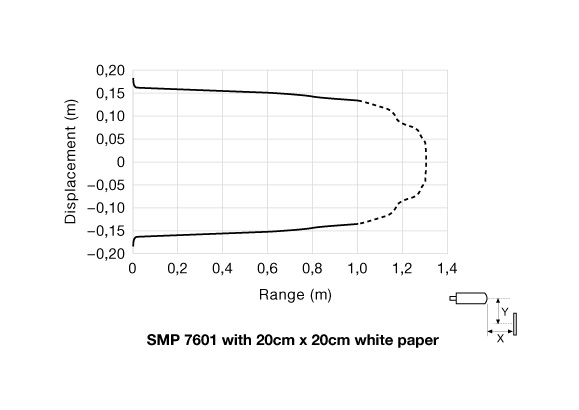

• Parallel Displacement
• Dimensions
