Product Data

• 4 pin, M8 Y-splitter connector
• Female – Female – Male
• 15 cm cable pigtail per connector
• Compatible SG 16/17 Series (with transistor or OSE output)

Technical Data

Housing Material	TPU
Rated voltage	60 V ac / dc
Rated current	4 A
Connector material (Lock nut)	Nickel-Plated Brass
Sealing class	IP 67
Temperature, Operation	-25 to +85 ºC
Connector contacts	Brass (gold plated)
Cable sleeve material	PVC
Plug / cable sleeve colour	Black and Grey

Technical Drawings

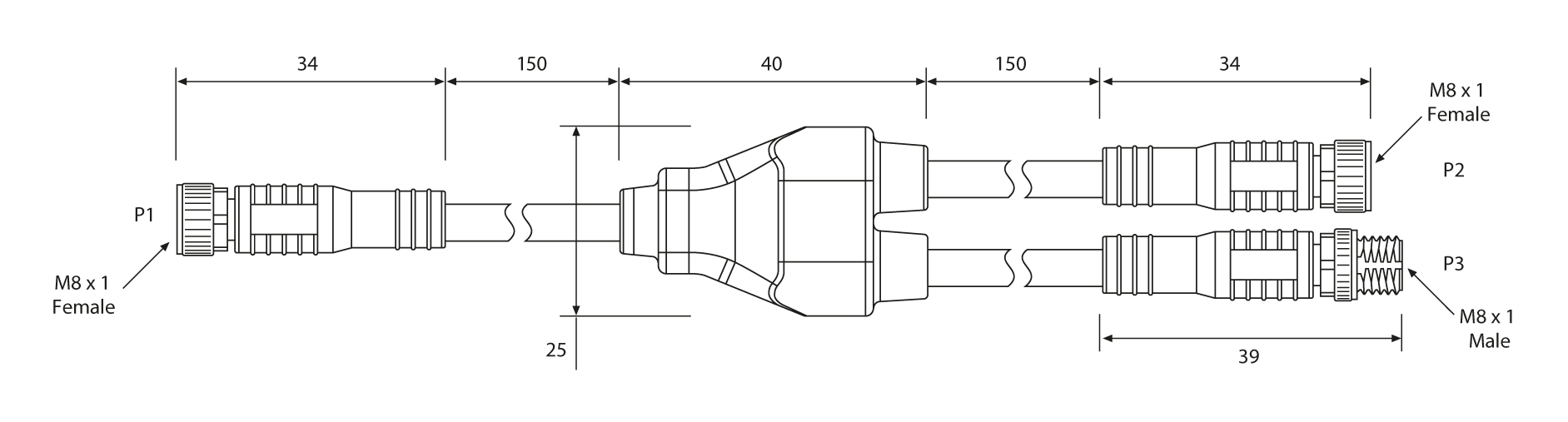

• Dimensions

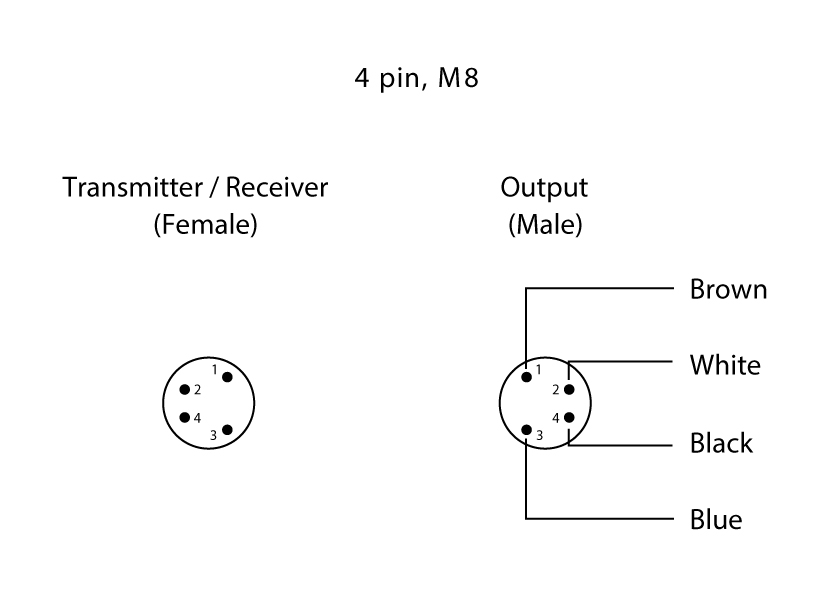

• Connections

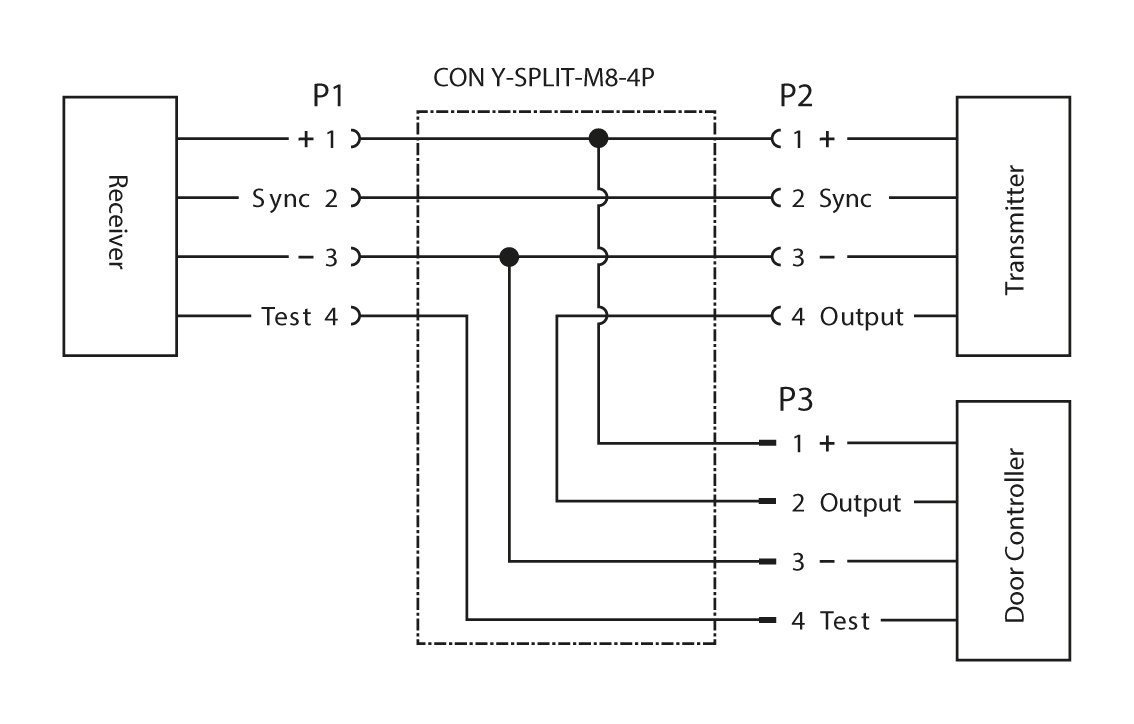

• Wiring diagram
