Photoelectric Amplifier Bus

PAB 30

Photoelectric Bus Amplifiers"

Standard, Remote Photoelectric Systems"

Icon for Photoelectric Bus Amplifiers
Add to MyList

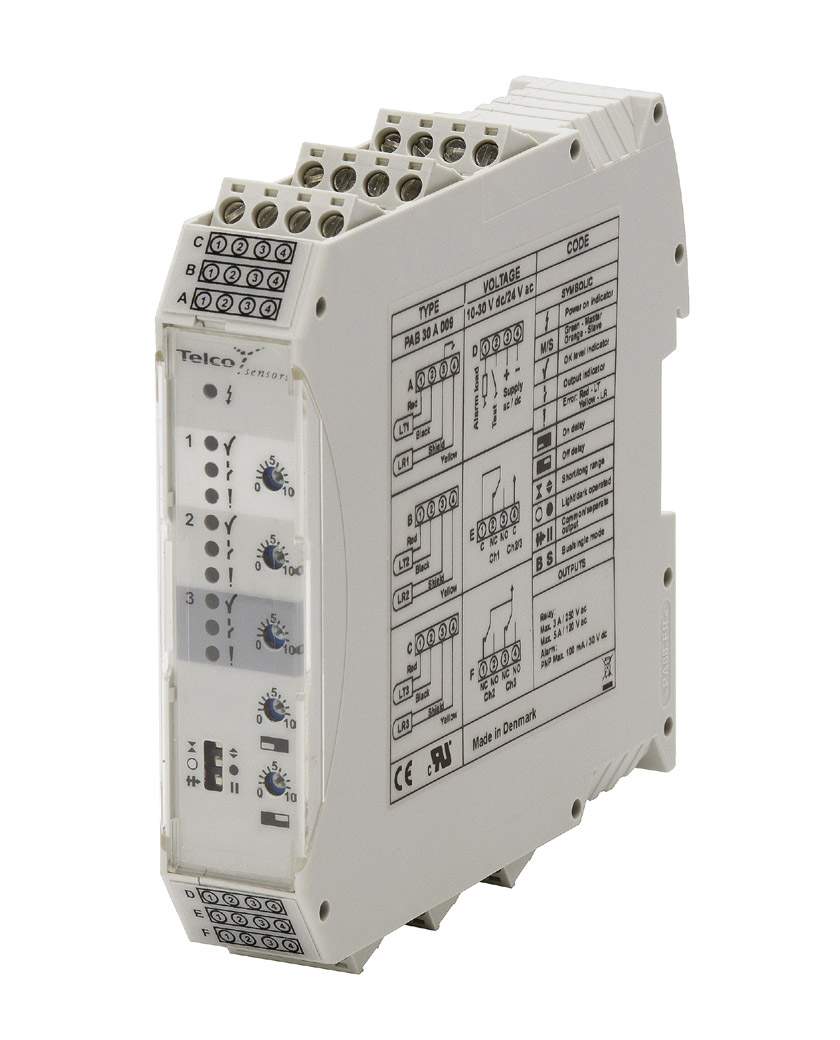

Type Name: PAB 30 S 209

Product Data
Supply Voltage 10 – 30 V dc / 24 V ac

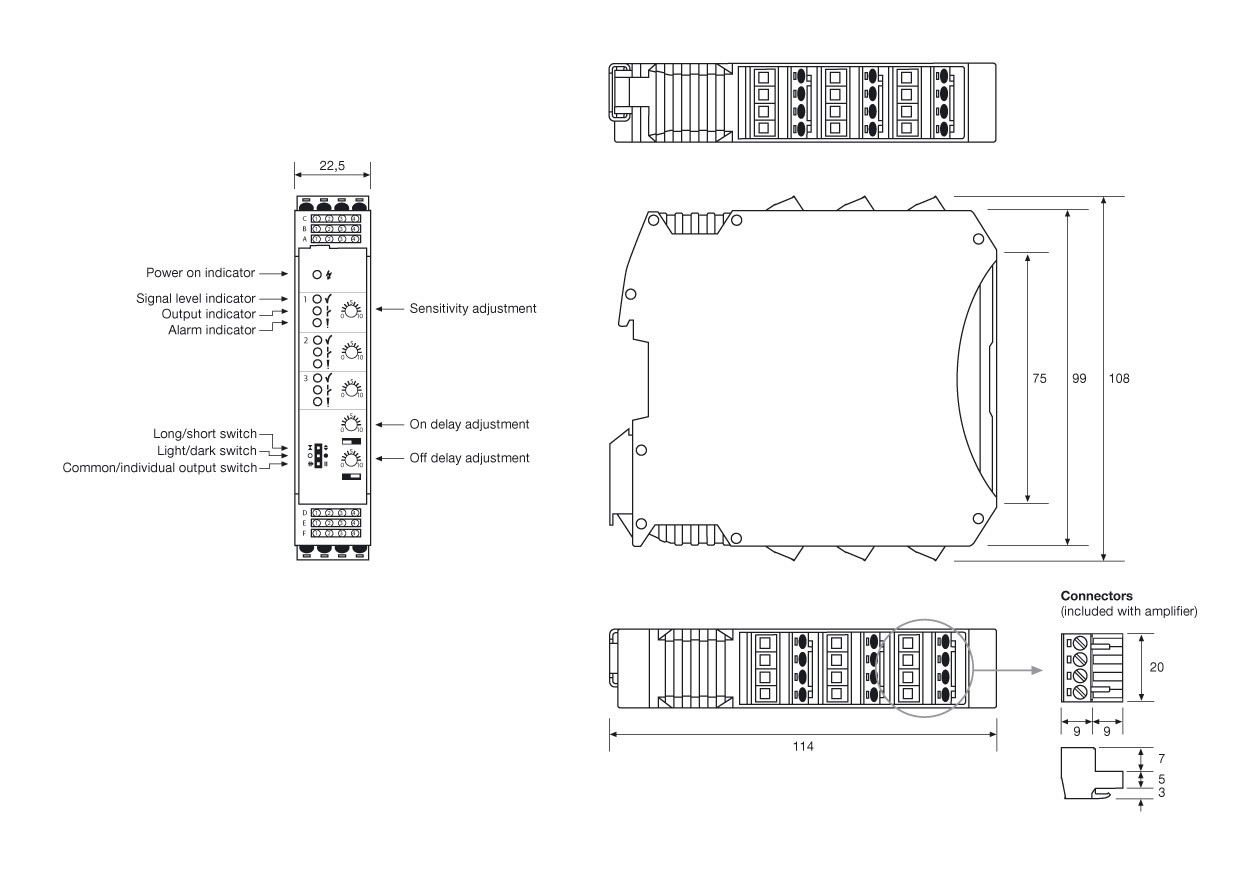

Housing Removable screw terminals
Sensing Range 47 m
Number of Channels 3
Sensitivity Adjustment Manual
Timer On/Off Delay

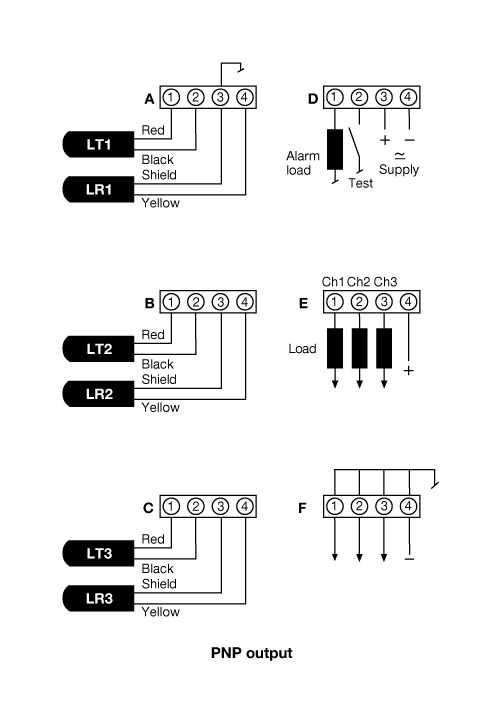

Output 3 individual PNP
Technical Data
Supply Voltage 10 - 30 V dc or 24 V ac
Current Consumption Max. 2,6 W
Housing Material Polyamide
Power On Indicator Green LED
Output Indicator Yellow LED
Hysteresis Approx. 35 %
Voltage Tolerance +/- 10 %
Output, Relay -
Output, Transistor 30 V dc / 100 mA
Alarm Indicator Red / yellow LED
LR Sensor Failure Indicator Yelow LED
LT Sensor Failure Indicator Red LED
Master/Slave Address Indicator -
Sensor Monitor LED Drive Green LED on the receiver: ‘Power ON’ Yellow LED on the transmitter: PAB output activated
Response Time ton / toff, Relay -
Response Time ton / toff, Transistor Short range: 24 ms / 24 ms - Long range: 60 ms / 60 ms
Alarm Output, Transistor PNP - 30 V dc / 100 mA
Test Input Yes
Signal Level Indicator Green LED
Operation Frequency, Relay -
Operation Frequency, Transistor Short range: 21 Hz - Long range: 8 Hz
Delay Time ton / toff 0 – 10 sec, adjustable
Environmental Data
Operation Temperature – 10 to +50 °C
Storage Temperature – 40 to +80 °C
Sealing Class IP 40
Approvals
PAB 30 S 209
