SM 6000

SpaceMaster™ SERIES

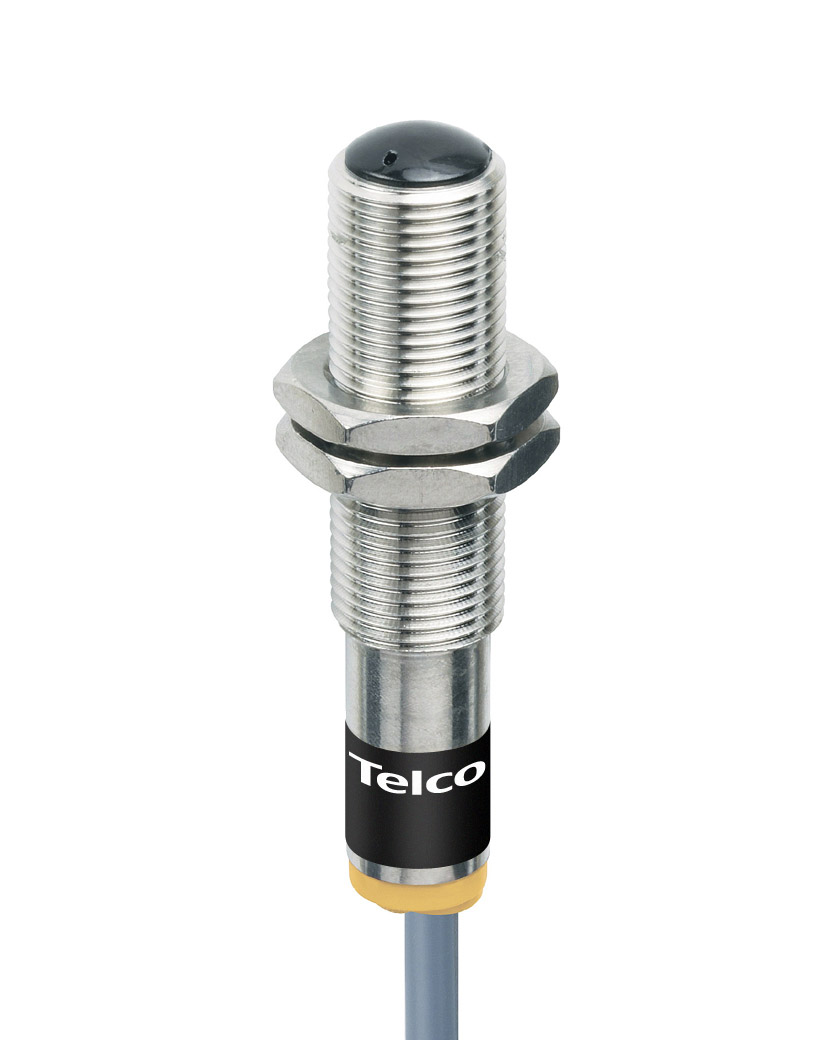

SMR 6106 TS 5

Thru Beam

Photoelectric Sensors

SMR 6106 TS 5

Thru Beam

  • CE

Compatible Transmitters

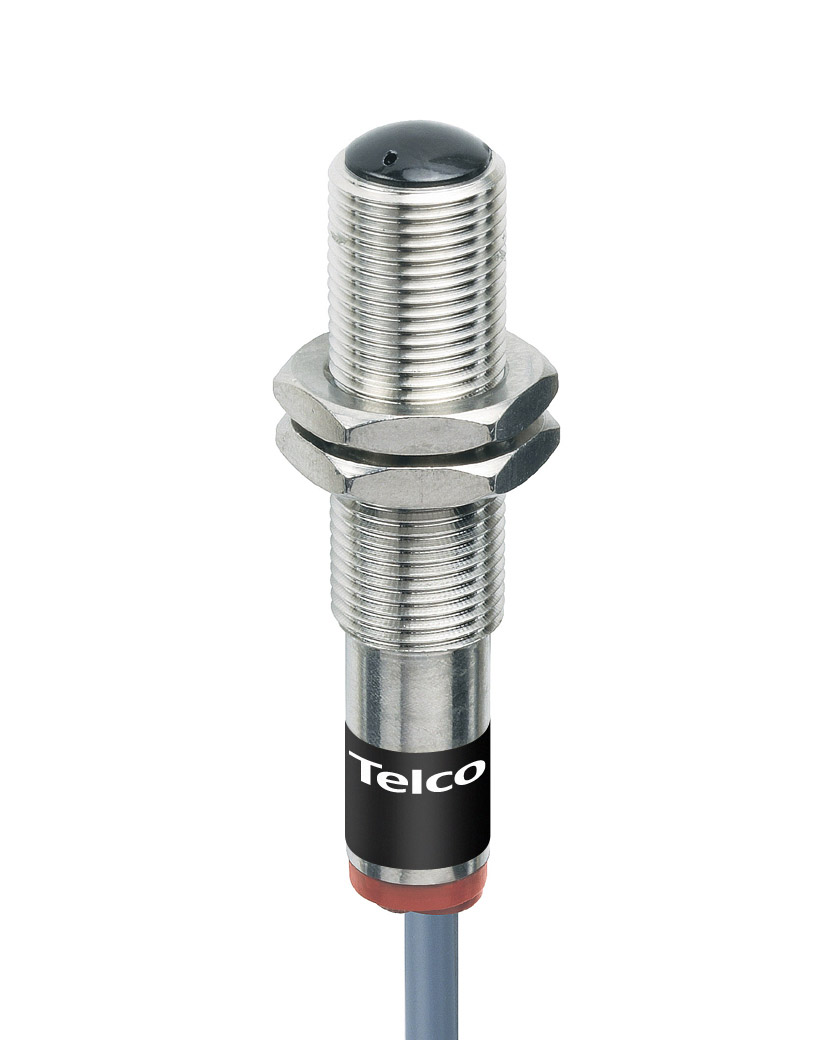

  • SMT 6000 TS 5
    SMT 6000 TS 5
    Operation Mode Thru Beam
    Function Transmitter
    Supply Voltage 10 - 32 V dc
    Light Source Infrared (880 nm)
    Control Feature Adjustable range and test input
    Sensing Range 6 m
    Housing M12 x 1
    Housing Material Stainless Steel
    Connection 5 m cable

Product Data

Operation Mode Thru Beam
Function Receiver
Supply Voltage 10 - 32 V dc
Sensing Range 6 m
Output NPN
Output Status N.O.
Housing M12 x 1
Housing Material Stainless Steel
Connection 5 m cable

Technical Data

Supply Voltage 10 - 32 V dc
Voltage Ripple 15 %
Reverse Polarity Protected Yes
Short Circuit Protected Yes
Current Consumption Max. 320 mW
Max. Output Load 100 mA
Max. Residual Voltage 2,5 V
Max. Operation Frequency 100 Hz
Response Time ton / toff 5 ms / 5 ms
Output Indicator Yellow LED
Hysteresis Approx. 30 %
Opening Angle +/- 6°
Housing Material, Front Lens Polycarbonate
Housing Material, Sensor Housing Stainless Steel (AISI 316 / 1.4401)
Cable 3/4 x 0,14 mm²
Cable Sleeve PVC Ø 4,0 mm

Environmental Data

Vibration 10 - 55 Hz, 0.5 mm
Shock 30 g
Operation Temperature -20 to +60 °C
Storage Temperature -40 to +80 °C
Sealing Class IP 67
Light Immunity 5˚ > 50 000 lux

Technical Drawings

  • Wiring Diagram Wiring Diagram
  • Parallel Displacement Parallel Displacement
  • Angular Displacement Angular Displacement

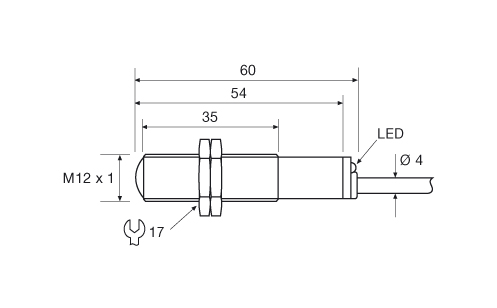

  • Dimensions Dimensions
